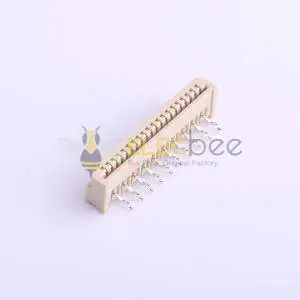

1.25mm Pitch 20-Pin FFC/FPC Connector, Top Contact, DIP, Tin Plated
SKU: EB-AF125-S20WCC-00
Favorites
Key Features
20-pin 1.25mm pitch FFC/FPC connector with top design for flexible printed circuit and flat flex cable applications requiring reliable connections
DIP mounting technology provides secure PCB attachment with excellent mechanical stability and vibration resistance for industrial applications
Premium tin plating on contacts delivers superior electrical conductivity, low contact resistance, and enhanced corrosion protection for long-lasting performance
Compact 1.25mm pitch spacing makes this connector ideal for high-density applications in LCD displays, digital cameras, automotive electronics, and portable devices
DIP mounting technology provides secure PCB attachment with excellent mechanical stability and vibration resistance for industrial applications
Premium tin plating on contacts delivers superior electrical conductivity, low contact resistance, and enhanced corrosion protection for long-lasting performance
Compact 1.25mm pitch spacing makes this connector ideal for high-density applications in LCD displays, digital cameras, automotive electronics, and portable devices
Show More
Specifications
Attribute
Value
Search
Connector Type
Contacts, Top
Mounting Type
Through Hole
Termination
Solder
Number of Positions
20 Pin
Operating Temperature
-40℃~+85℃
Rated Current
1A
Rated Voltage
125V
Contact Finish
Tin Plated
Pitch
1.25mm
Goods_tag
20 pcs/Tube
FFC, FCB Thickness
0.3mm
Height Above Board
7.2mm
Packaging
Tube
