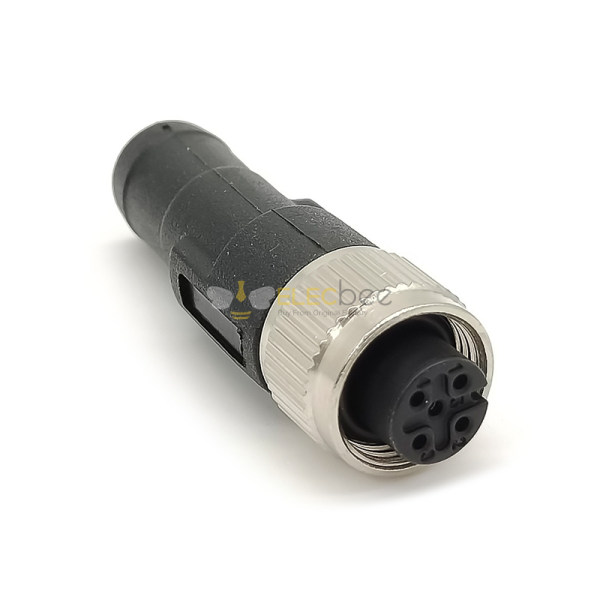

Elecbee M12 Field Wireable Connector A Code Straight 8pin Female Non-shield connector
SKU: EB-400-2225
Favorites
Key Features
Features:
- M12 Field Wireable Connector,A Code,8Pin,Female, Straight,For Cable,Screw-Joint,Unshield,Waterproof
- thread locking mechanism, anti vibration locking design，12mm thread joint;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Female Pin
Number of Positions
8 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
2A
Rated Voltage
30V
Connector Series
M12
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
Description
M12 Field Wireable Connector
IP67/68 Weatherproof
|
Plug & Play Connections
|
Rugged Metal Housing
The M12 field wireable connectors are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port. M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.
DIRECT DEAL
EASY ASSEMBLY
QUALITY ASSURANCE
MULTI CORE OPTIONAL
| M12 Field Wireable Connetor | |
| Coding | A / B / D / T / X |
| Number of Positions | 3 / 4 / 5 / 8 / 12 / 17 |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | Cable |
| Shell Material | Metal / Plastic |
| Termination Style | Screw-joint / Solder Type |
| Shield | Shield / Unshielded |
M12 Field Wireable TYPE
PRODUCT DESCRIPTION
1. Exquisite Craftsmanship Makes Connections More Secure
- Thickened pins/long life
- Copper-zinc material,high resistance,wear resistance
- Thickened cable,easy to remove and plug,tightly combined and not easy to fall off
3. STABLE PERFORMANCE,STRONG AND DURABLE
- Hight quality PA66 housing
- Thread locking mechanism,shock-proof locking design
- Thickened nylon is anti-corrosion,non-flammable,and has good insulation property
2. Safe and Reliable Meet the Standards to Create Safety
- Pure copper gold-plated contacts with exc-ellent electrical conductivity
- Fixed keys and multikeys to prevent blind insertion, misin- sertion, and skewed insertion
- Strong waterproof performance, in line with IP67/IP68 wa terproof requests
APPLICATION
Packaging, Labeling & Logistic
Factory automation and fieldbus module
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
14%
4 stars
14%
5 stars
71%
E****n
I was skeptical but so far i have had no shorts in my wire which is submerged in about 1ft. of water at a wastewater facility. Its been in place for over a month.
J****n
Excellent waterproof connectors - I used them to wire up 5 light drivers in my grow space and they work flawlessly!
S****r
Perfect for my outdoor lighting project! The IP67 rating really holds up in rain, and the metal housing feels extremely durable. Easy to wire and locks securely.
Z****i
Solid build quality and great connectivity. Took a little time to terminate the wires properly, but the screw-joint system is reliable once set.
H****e
Used this 8-pin female connector for an industrial camera setup. Excellent signal stability and the gold-plated contacts make a difference in performance.
M****n
Does the job, but the instructions were minimal. Had to figure out orientation on my own. Still, it's weatherproof and sturdy as promised.
s****m
Great for factory automation. The A-code 8-pin config works flawlessly with our I/O blocks. Love the plug-and-play design saving installation time.
