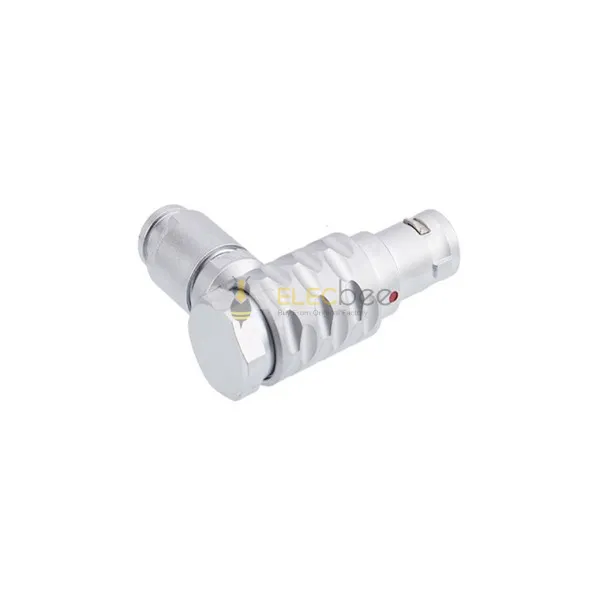

Elecbee Push Pull Self-Locking Connector B Series 0B TPG Elbow (90°) plug - With cable clamp Male 9Pin
SKU: EB-TPG.0B.309.CLAD32/4
Favorites
Key Features
- Self-locking design ensures secure connection.
- 90° elbow plug saves space and reduces strain.
- Includes cable clamp for added durability.
- 9-pin male connector for reliable signal transfer.
- TPG material resists heat and wear.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
9 Pin
Operating Temperature
-55℃~+250℃
Shielding
Shielded
Ingress Protection
IP50
Rated Current
3.5A
Features
Waterproof
Connector Series
B
Color
Silver
Fastening Type
Push-on
Orientation
Right Angled
Shell Material
Copper Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
30AWG~22AWG
Insulation Color
White
