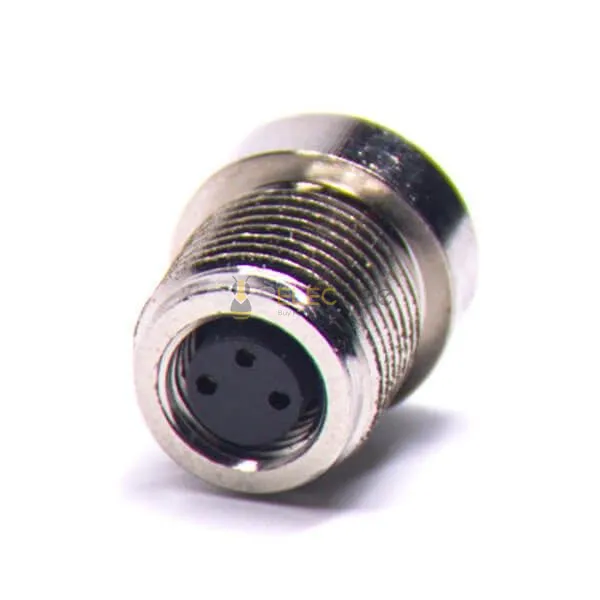

Elecbee 10pcs M8 3Pin Female Connector Panel Mount Cable Front Mount Solder Type Waterproof Straight Socket
SKU: 10XEB-400-1061
Favorites
Key Features
Features:
- M8, 3pin, Panel Receptacles, Female, Front Mount, Straight, Soldering
- thread locking mechanism, anti vibration locking design，8mm thread joint;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
3 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
3A
Rated Voltage
50VAC, 60VDC
Connector Series
M8
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
