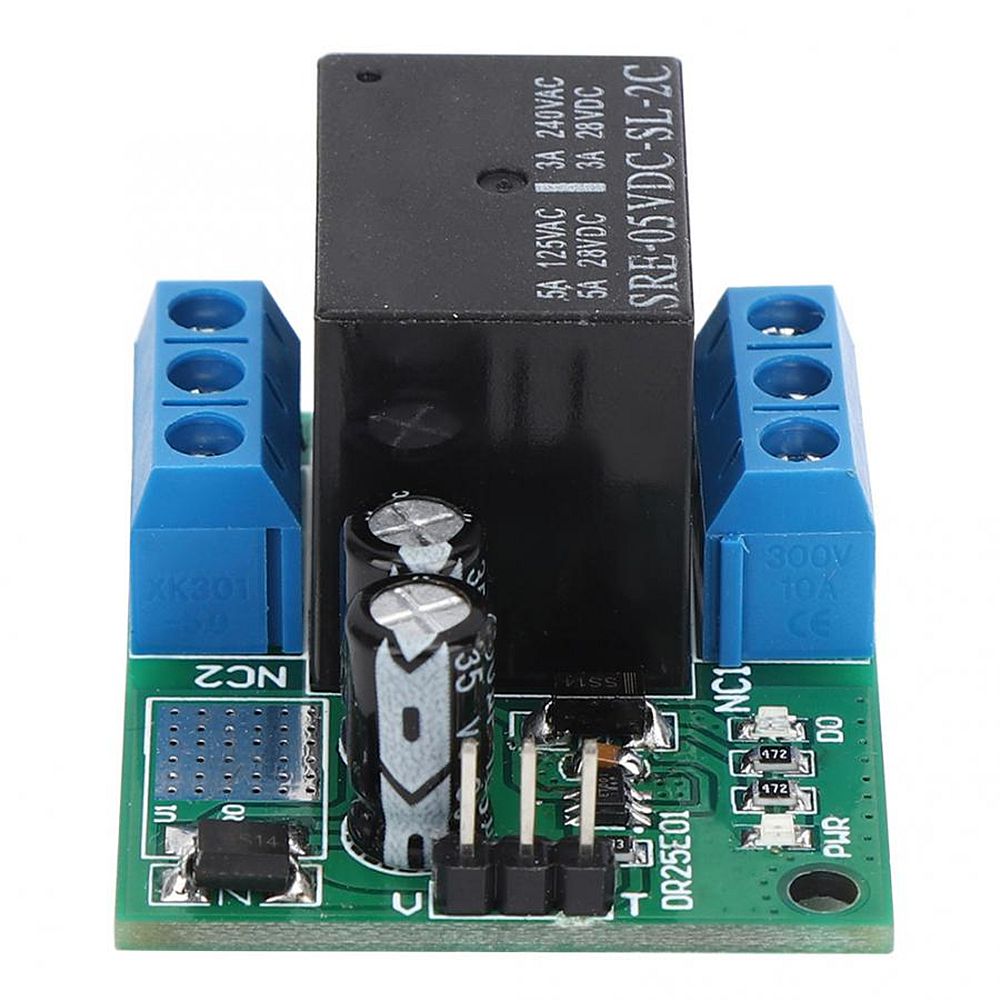

Elecbee DR25E01 DC 5/9/12/24V 3-5A Flip-Flop Latch DPDT Relay Module Bistable Switch Low Pulse Trigger Board for Motor LED PLC

1. This is a self-locking (bistable) double-pole double-throw relay. Once triggered, the relay pulls in, triggers again, and the relay is disconnected.

2. With power indicator and reverse polarity indicator.

3. Low pulse control mode, safer to use.

4. Made of high-quality electronic components, stable and reliable performance.

5. Easy to install and convenient to use.

Item Type: DPDT Relay Module

Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional)

Module Working Current: Forward 2MA, reverse 60-70MA

Load Current: 5A maxmum (motor <= 3A)

Control Mode: Low pulse control

Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9in

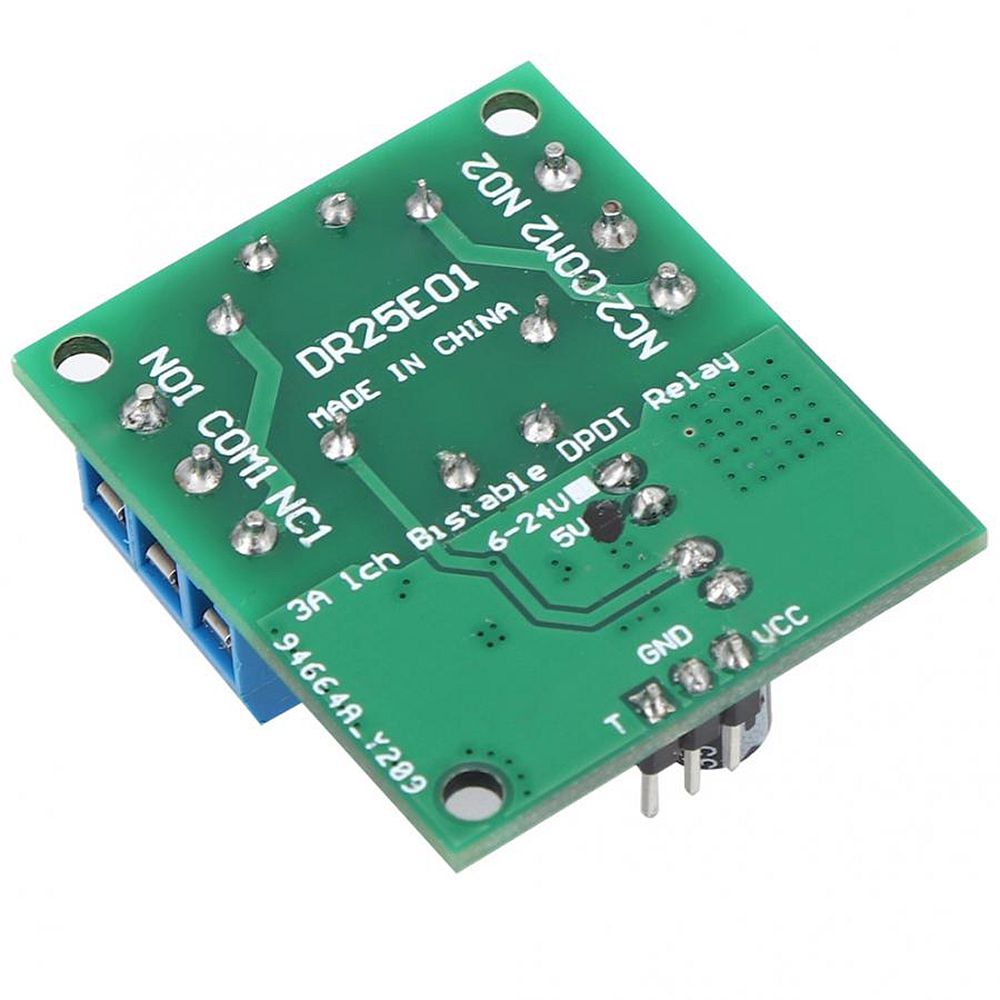

V: Power positive

G: Power negative terminal and trigger signal ground terminal;

T: Trigger signal input (0.2-2 seconds low pulse).

NO1: Relay normally open port

COM1: Relay common port

NC1: Relay normally closed port

NO2: Relay normally open port

COM2: Relay common port

NC2: Relay normally closed port

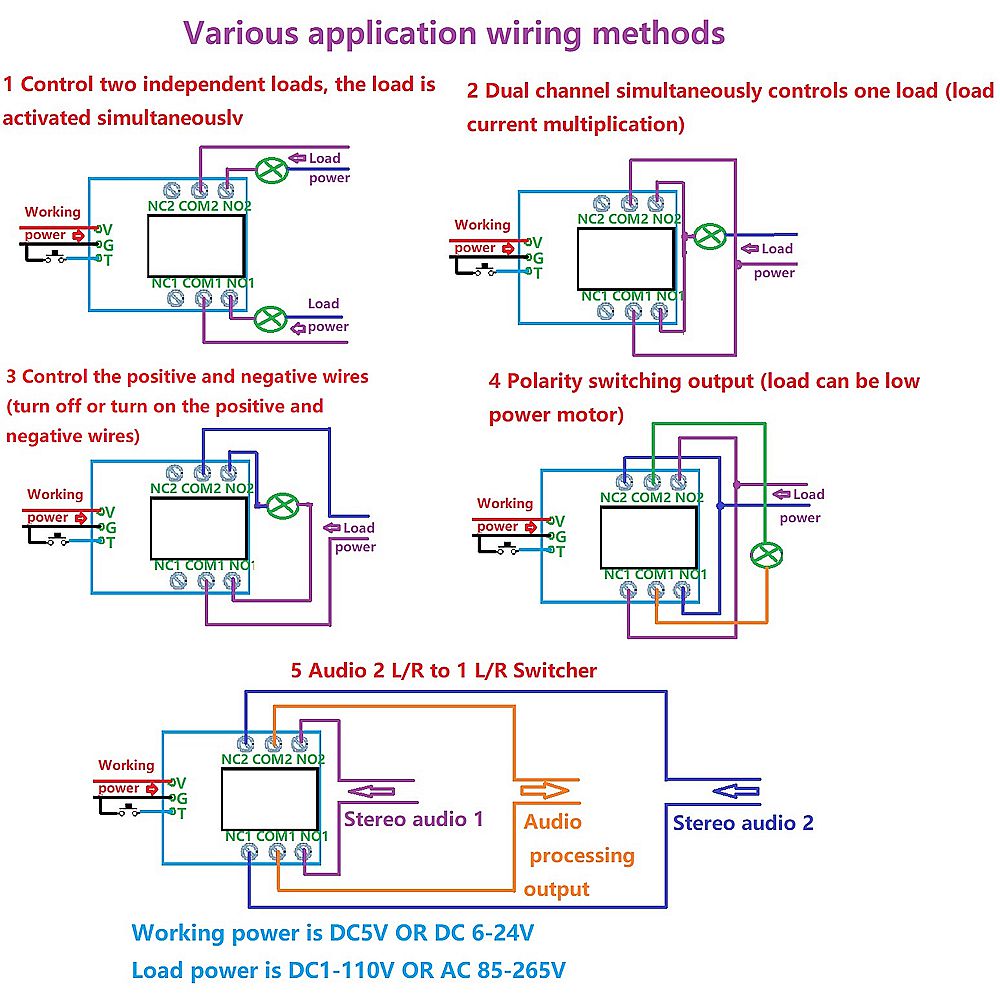

How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on.

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Automotive electronics

Industrial equipment

AC DC Motor

LED lighting

Smart Home / Home Automation

Emergency lighting

MCU development board

Toy car

PLC

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
