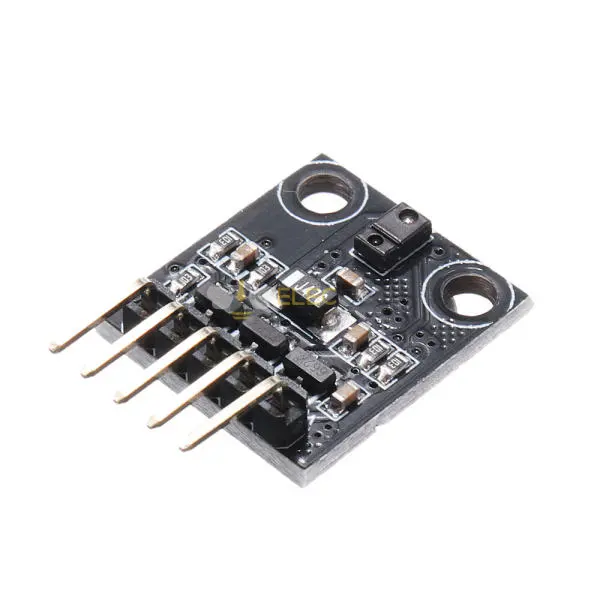

Elecbee 20pcs APDS-9960 Gesture Sensor Module Digital RGB Light Sensor for Arduino
SKU: EB0043140
Favorites
Key Features
Show More
Datasheet
Description
Introduction:
The Gesture Sensor APDS-9960 is a digital RGB, ambient light, proximity and gesture sensor. The sensor has an I2C compatible interface providing red, green, blue, clear (RGBC), proximity and gesture sensing with IR LED. The RGB and ambient light sensing feature detects light intensity under various lighting conditions and through various attenuation materials including darkened glass. In addition, the integrated UV-IR blocking filter enables accurate ambient light and correlated color temperature sensing.
The proximity and gesture feature is factory-trimmed and calibrated to 100mm proximity detection distance without requiring customer calibrations. Gesture detection utilizes four directional photodiodes, integrated with visible blocking filter, to accurately sense simple UP-DOWN-RIGHT-LEFT gestures or more complex gestures. The addition of micro-optics lenses within the module provides high efficient transmission and reception of infrared energy. An internal state machine allows the device to be put into a low power state between RGBC, proximity and gesture measurements providing very low power consumption.
Features:
RGBC Light Sensor, Proximity and Gesture Detector with IR LED in an Optical Module
I2C Interface Compatible with Dedicated Interrupt Pin
High Sensitivity Enabling Operation Behind Darkened Glass
RGBC Light Sensing with Integrated UV-IR Block Filter
Geometrically Arranged RGBC Photodiodes Providing Uniform Angular Response
Calibrated to 100mm Detection Distance Eliminating Customer End Product Calibration
Four Separate Photodiodes Sensitive to Different Directions
Proximity and Gesture Sensing with Integrated Visible Block Filter
Patented Shield Design Minimizing Proximity Cross Talk
Integrated Optical Lens Collimating IR LED Beam and Improving Photodiode Sensitivity.
Low Power Consumption: 1.0 µA typical in Sleep Mode
Applications:
Display Backlight Control
Correlated Color Temperature Sensing
Cell Phone Touch-screen Disable
Digital Camera Touch-screen Disable
Mechanical Switch Replacement
Gesture Detection
Documents:
Package includes:
20 x APDS-9960 Gesture Sensor Module
Documents:
Package includes:
20 x APDS-9960 Gesture Sensor Module
