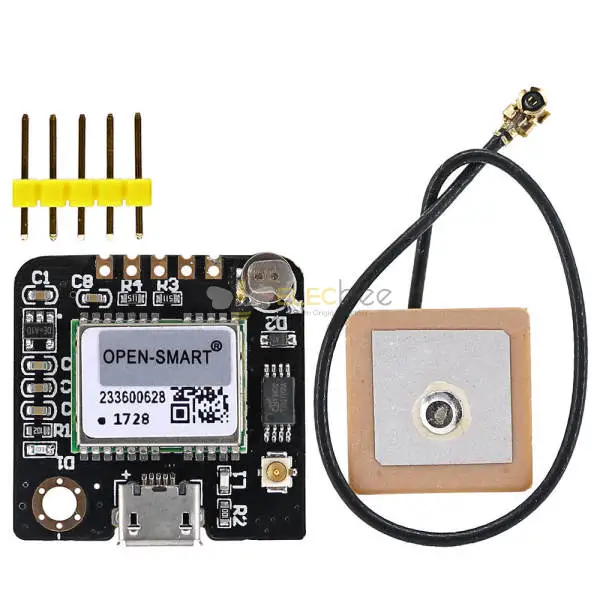

Elecbee GPS Serial Module APM2.5 Flight Control GT-U7 with Ceramic Antenna for DIY Handheld Positioning System
SKU: EB0045312
Favorites
Key Features
xa0
- Operating frequency: L1 (1575.42 +/- 10MHz)
- Operating voltage: 3.3 - 5.2V
- Operating current: normal mode is 50mA, the power-saving mode is 30mA
- Communication interface: TTL serial port, micro USB interface (can be connected to a computer to debug)
- Serial port baud rate: 9600bps
- Communication format: 8N1
- Interface logic voltage: 3.3V or 5V
- External antenna interface: IPX.xa0
Show More
Description
Description:
GT-7U GPS module, with high sensitivity, low power consumption, miniaturization, and its extremely high tracking sensitivity characteristics, greatly expanded its coverage of positioning.
In the area that the GPS receiver can not locate, such as narrow urban sky, dense Jungle environment, GT-7U can achieve high-precision positioning.
Its high sensitivity, small static drift, low power consumption, and compact size make it suitable for applications in vehicles, handheld devices such as PDAs, vehicle monitoring, mobile phones, video cameras, and other mobile positioning systems, and it is the best choice for GPS applications.
1 x GT-7U GPS module
1 x Control board
1 x Pin
