Key Features

xa0

Preassembled, fully functioning LoRaWAN™ Gateway

SX1301 baseband processor, emulates 49 x LoRa® demodulators 10 programmable parallel demodulation paths, support 8 uplinks channel, 1 downlink channel.

Support optional Cellular module(Quectel BG96 or EG91 or EG95) for NB-IOT / CAT-M / CAT1 LTE / CAT4 LTE.

Built-in the Ublox MAX-7Q GPS Module.

Built-in Heat Sink for thermal heat dissipation management.

Supports 5V/2.5A power supply.

TX power up to 27dBm, RX sensitivity down to -139dBm@SF12, BW 125KHz.

LoRa® frequency supports the global license-free frequency band (EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865, and AS920).

Housing with top cover, body, bottom cover with riveted motherboard standoff.

Includes Pi ready 'ID EEPROM', GPIO setup and device tree can be automatically configured from vendor information.

Supports fully open source code connected to a LoRaWAN™ server.

Processor	Raspberry Pi 3B + (Linux)
LoRa module	RAK2245 Pi HAT LoRa Concentrator Module with Radiator (Semtech SX125X with a Semtech SX1301 baseband processor and 2 highly integrated front-end RF I / Q transceivers)xa0
Mobile network block	• RAK2013 Mobile Network Module (Using Quectel EG95 module, support: LTE CAT 4) Standard frequency bands for mobile networks: • European variants: (Product ID:xa01643016) LTE FDD: B1 / B3 / B7 / B8 / B20 / B28A; WCDMA: B1 / B8; GSM: 900 / 1800MHz. • North American variants: (This version) LTE FDD: B2 / B4 / B5 / B12 / B13; WCDMA: B2 / B4 / B5xa0
GPS module	Ublox MAX-7Q
LoRa Band	EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865
LoRaWAN version	LoRaWAN V1.0.2
Distance	City: 2-4km, suburbs: 5-10km, wide area:> 15km
Number of nodes	500 nodes per square kilometer
LoRa transmit power	27dBm maximum, 25dBm under normal conditions
LoRa receive power	Minimum -139dBm @ SF12, bandwidth 125KHz
powered by	5V / 2.5A
Interface	• Front side: Raspberry Pi USB powered, Raspberry Pi HDMI, Raspberry Pi audio, headphones, microphone, speakers, reset button, PWRKWY button, USB (Cellular) • Left: 1x GPS antenna interface, 1x LoRa antenna interface, 2x LTE antenna interface, 1x TF card slot, 2x LED indicator (indicating LoRa sending and receiving status) • Right side: 1x LAN, 4x USB portsxa0
Antenna interface	1 * RP-SMA Male to LoRa Antenna 1 * SMA female to GPS antenna 1 * RP-SMA male to LTE antenna (MAIN) 1 * RP-SMA Male to LTE Antenna (DIV)xa0
Energy consumption	Depending on the working mode, the peak current can reach 3500mA
Working environment	Indoor
Physical specifications	Dimensions (length x width x separation): 92mm x 68.3mm x 53.5mm Weight: about 0.32 kg
Temperature range	General working temperature: -20 ° C ~ + 65 ° C Extended temperature: -40 ° C ~ + 85 ° C Storage temperature 40 ° C ~ + 85 ° Cxa0
Relative humidity	20% ~ 75% non-condensing
Shell	Aluminum cooling case

xa0

Preassembled, fully functioning LoRaWAN™ Gateway

SX1301 baseband processor, emulates 49 x LoRa® demodulators 10 programmable parallel demodulation paths, support 8 uplinks channel, 1 downlink channel.

Support optional Cellular module(Quectel BG96 or EG91 or EG95) for NB-IOT / CAT-M / CAT1 LTE / CAT4 LTE.

Built-in the Ublox MAX-7Q GPS Module.

Built-in Heat Sink for thermal heat dissipation management.

Supports 5V/2.5A power supply.

TX power up to 27dBm, RX sensitivity down to -139dBm@SF12, BW 125KHz.

LoRa® frequency supports the global license-free frequency band (EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865, and AS920).

Housing with top cover, body, bottom cover with riveted motherboard standoff.

Includes Pi ready 'ID EEPROM', GPIO setup and device tree can be automatically configured from vendor information.

Supports fully open source code connected to a LoRaWAN™ server.

Processor	Raspberry Pi 3B + (Linux)
LoRa module	RAK2245 Pi HAT LoRa Concentrator Module with Radiator (Semtech SX125X with a Semtech SX1301 baseband processor and 2 highly integrated front-end RF I / Q transceivers)xa0
Mobile network block	• RAK2013 Mobile Network Module (Using Quectel EG95 module, support: LTE CAT 4) Standard frequency bands for mobile networks: • European variants: (Product ID:xa01643016) LTE FDD: B1 / B3 / B7 / B8 / B20 / B28A; WCDMA: B1 / B8; GSM: 900 / 1800MHz. • North American variants: (This version) LTE FDD: B2 / B4 / B5 / B12 / B13; WCDMA: B2 / B4 / B5xa0
GPS module	Ublox MAX-7Q
LoRa Band	EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865
LoRaWAN version	LoRaWAN V1.0.2
Distance	City: 2-4km, suburbs: 5-10km, wide area:> 15km
Number of nodes	500 nodes per square kilometer
LoRa transmit power	27dBm maximum, 25dBm under normal conditions
LoRa receive power	Minimum -139dBm @ SF12, bandwidth 125KHz
powered by	5V / 2.5A
Interface	• Front side: Raspberry Pi USB powered, Raspberry Pi HDMI, Raspberry Pi audio, headphones, microphone, speakers, reset button, PWRKWY button, USB (Cellular) • Left: 1x GPS antenna interface, 1x LoRa antenna interface, 2x LTE antenna interface, 1x TF card slot, 2x LED indicator (indicating LoRa sending and receiving status) • Right side: 1x LAN, 4x USB portsxa0
Antenna interface	1 * RP-SMA Male to LoRa Antenna 1 * SMA female to GPS antenna 1 * RP-SMA male to LTE antenna (MAIN) 1 * RP-SMA Male to LTE Antenna (DIV)xa0
Energy consumption	Depending on the working mode, the peak current can reach 3500mA
Working environment	Indoor
Physical specifications	Dimensions (length x width x separation): 92mm x 68.3mm x 53.5mm Weight: about 0.32 kg
Temperature range	General working temperature: -20 ° C ~ + 65 ° C Extended temperature: -40 ° C ~ + 85 ° C Storage temperature 40 ° C ~ + 85 ° Cxa0
Relative humidity	20% ~ 75% non-condensing
Shell	Aluminum cooling case

Show Less

Description

More information: Click here to open

Product Description:

The RAK7243C Pilot Gateway is a device that consists of Raspberry Pi 3B+, RAK2245 Pi HAT which includes a GPS module and a Heat Sink for better performance and thermal heat dissipation management, and a RAK2013 Cellular Pi HAT and it’s housing is built with an aluminum casing.

For the build-in RAK2245 Pi HAT, it uses the SX1301 chip from Semtech which built-in LoRa® concentrator IP core is a powerful digital signal processing engine. It is able to receive up to 8 LoRa® packets simultaneously sent with different spreading factors on different channels and available in multiple variants so it can be used for internartinal standard bands. This unique capability allows to implement innovative network architectures advantageous over other short range systems. For the build-in RAK2013 Cellular Pi HAT, it supports optional QUECTEL BG96 / EG91 / EG95 which can supports NB-IOT / CAT-M / CAT1 LTE / CAT4 LTE. It follows Raspberry Pi specifications and is easy to mount with Raspberry Pi and RAK2245 Pi HAT module.

Pilot Gateway Pro is ideal for prototyping, proof-of-concept demonstration or for the evaluation. It includes a ready to use LoRaWan™ Gateway OS that can be connected to a LoRaWan™ server. Also, it is developer-friendly and simple even for no-so-techy users to set up LoRaWan™ system. It has to be the best value and function for connectivity to address a variety of applications like Smart Grid, Intelligent Farm and other IoT enterprise applications.

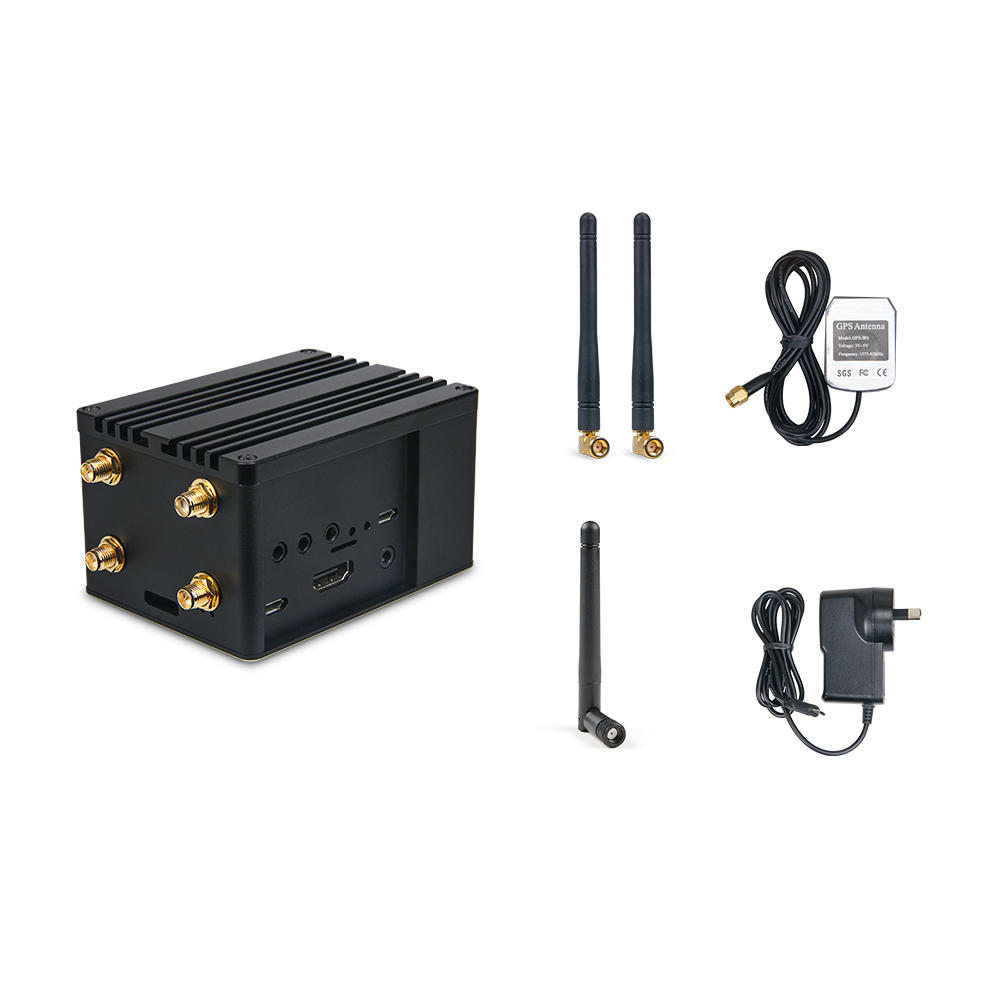

1 x Raspberry Pi 3B+

1 x RAK2245 Pi HAT

1 x RAK2013 Cellular Pi HAT

1 x Aluminum cooling case kit (68.3 x 92 x 58.5mm)

1 x LoRa Antenna

2 x LTE Antennas

1 x GPS Antenna

1 x Power Adapter

1 x Micro sd card (16GB)
