Elecbee 1Power Amplifier DIY Kit, SSB Linear Power Amplifier 3.5‑30Mhz 13.8V 5W Input 70W Output Handheld Radio Receiver for Reception

SKU: EB0051619

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Model

KX3

Show Similar Products >

Description

NOTICE: It is a diy kit, needs to solder it and without heatsink

Electrical parameters:

1. Operating frequency band 1.8 - 54 MHz

2. Power supply voltage: 12V-16V

3. Current: 12A

4. Max input power:5W

5. Max output power: 100W(13.8V/80W;16V/100W)

7. Size: 50 x 100 mm

6. Air cooling: forced fan cooling

IDQ=50--200ma

Warning:

The output is forbidden to open circuit, short circuit, the prohibition of Bobbi 2 or more

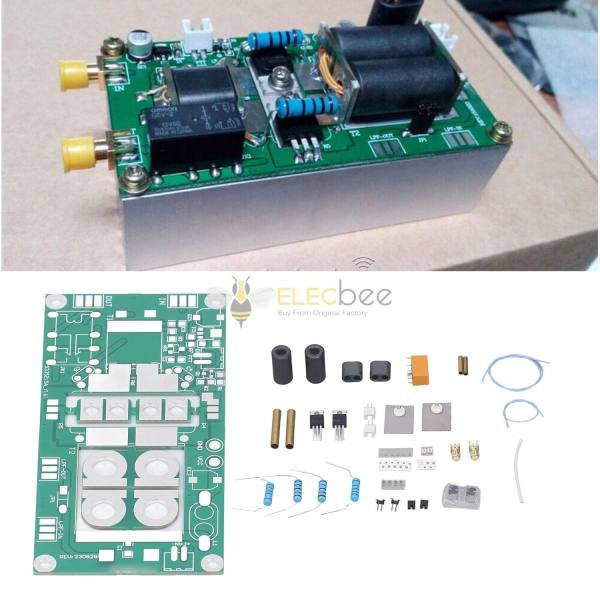

1 x 100W SSB linear HF Power Amplifier DIY KITS without heatsink

After installation, For reference only:
100W-SSB-Linear-HF-Power-Amplifier-For-YAESU-FT-817-KX3-Heatsink-CW-AM-FM-C4-005-DIY-KITS-1586430
