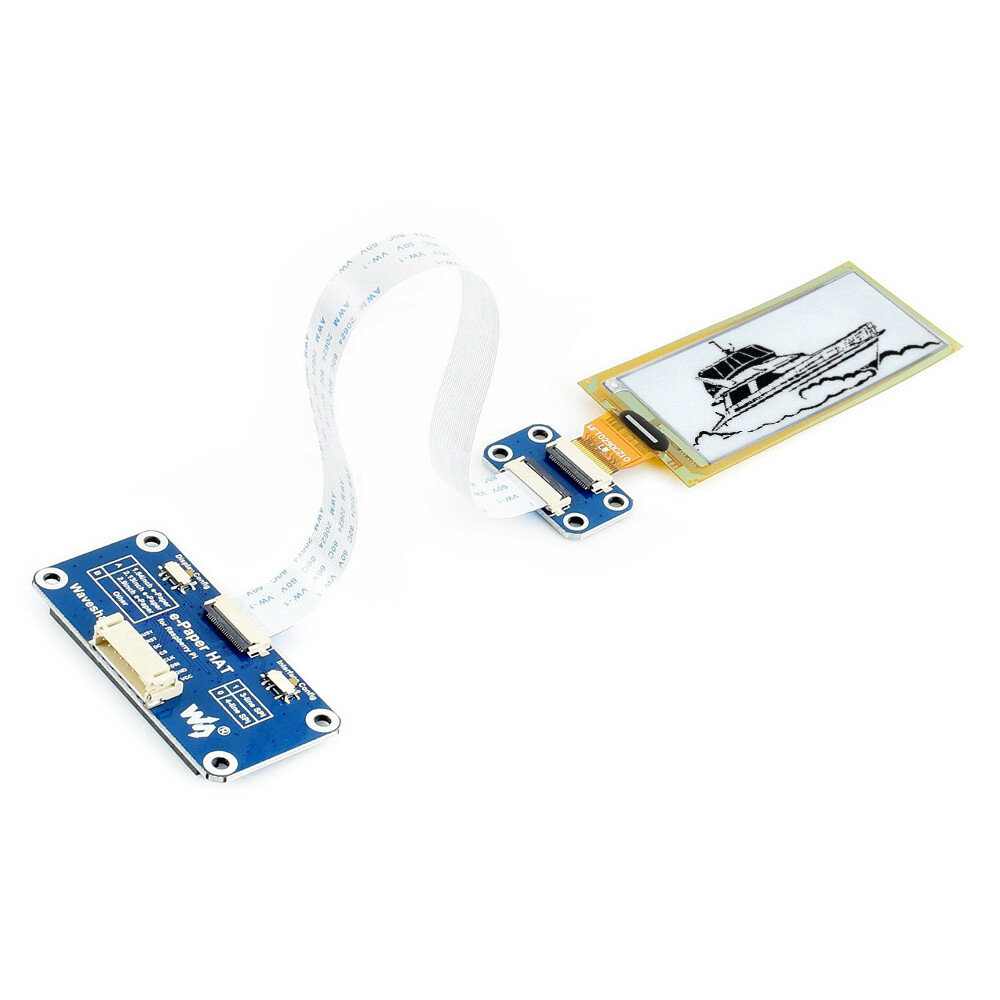

Elecbee 2.9 Inch ink Screen 2.9inch Flexible E-Ink Display HAT 296x128 Resolution Black/White e-paper Module
SKU: EB0050399
Favorites
Key Features
Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Specifications:
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 79mm × 36.7mm × 0.34mm
Display size: 66.9mm × 29.06mm
Dot pitch: 0.227 × 0.226
Resolution: 296 × 128
Display color: black, white
Grey level: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
Interface:
| SYMBOL | DESCRIPTION |
| VCC | 3.3V / 5V |
| GND | Ground |
| NC | NC |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
Show More
Datasheet
Description
1 x 2.9inch e-Paper HAT (D)
Overview:
This is a flexible E-Ink display HAT, 2.9inch, 296×128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Compared with normal e-Paper panels, this flexible panel allows bending without being damaged.
Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.
Package includes:1 x 2.9inch e-Paper HAT (D)
