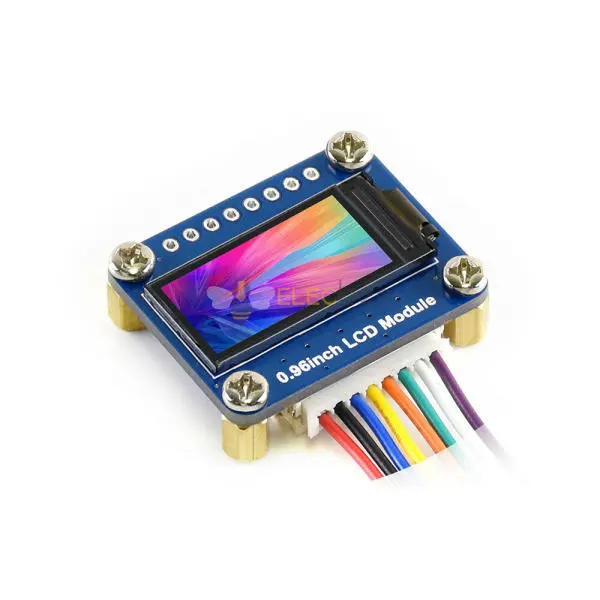

Elecbee 0.96 inch Color LCD Expansion Board Module IPS Screen SPI Interface compatible For Arduino

SKU: EB0050282
Favorites

Key Features

xa0
Use SPI control to ensure that too many interface pin resources are not occupied
Note: 0.96inch OLED is composed of 1/4 yellow at the top of the screen and 3/4 blue at the bottom. It is a two-color block screen, not a "two-color screen"

Parameter:

Driver chip: ST7735S
Support interface: SPI
Display color: RGB, 65K color
Resolution: 160x80
Backlight: LED
Working voltage: 3.3V

Raspberry Pi connection pin correspondence:

LCD Raspberry Pi
BCM2835 code Board Physical pin number
VCC 5V 5V
GND GND GND
DIN MOSI 19
CLK SCLK 23
CS CE0 24
DC 25 22
RST 27 13
BL 18 12

STM32F103ZET connection pin correspondence:

LCD STM32
VCC 3.3V/5V
GND GND
DIN PA7
CLK PA5
CS PB6
DC PA8
RST PA9
BL PC7

Arduino UNO connection pin correspondence:

LCD UNO
VCC 5V/3.3V
GND GND
DIN D11
CLK D13
CS D10
DC D7
RST D8
BL D9

Show More
Datasheet
Description

1 x 0.96inch LCD Module
1 x PH2.0 8PIN cable 20cm

Package includes:

1 x 0.96inch LCD Module
1 x PH2.0 8PIN cable 20cm
