Elecbee XY-WPDT USB Charging Trigger Charger Voltmeter Ammeter 5V/9V/12V/15V/20V/PPS PD2.0 PD3.0 Type-C USB Decoy Device for PD Charger
SKU: EB0046758
Favorites
Key Features
- PD-Fast-Charger Trigger
- Voltage and current display
- Multi-set voltage output
- Power-off memory function
Specifications:
Output Voltage:DC 4.0V~20V
Voltage Precision:0.3%
Voltage Resolution:0.01V
Current Precision:0.5%
Current Resolution:0.001A
Working Temperature range:-20℃~100℃
Working Humidity range:0%-95%RH

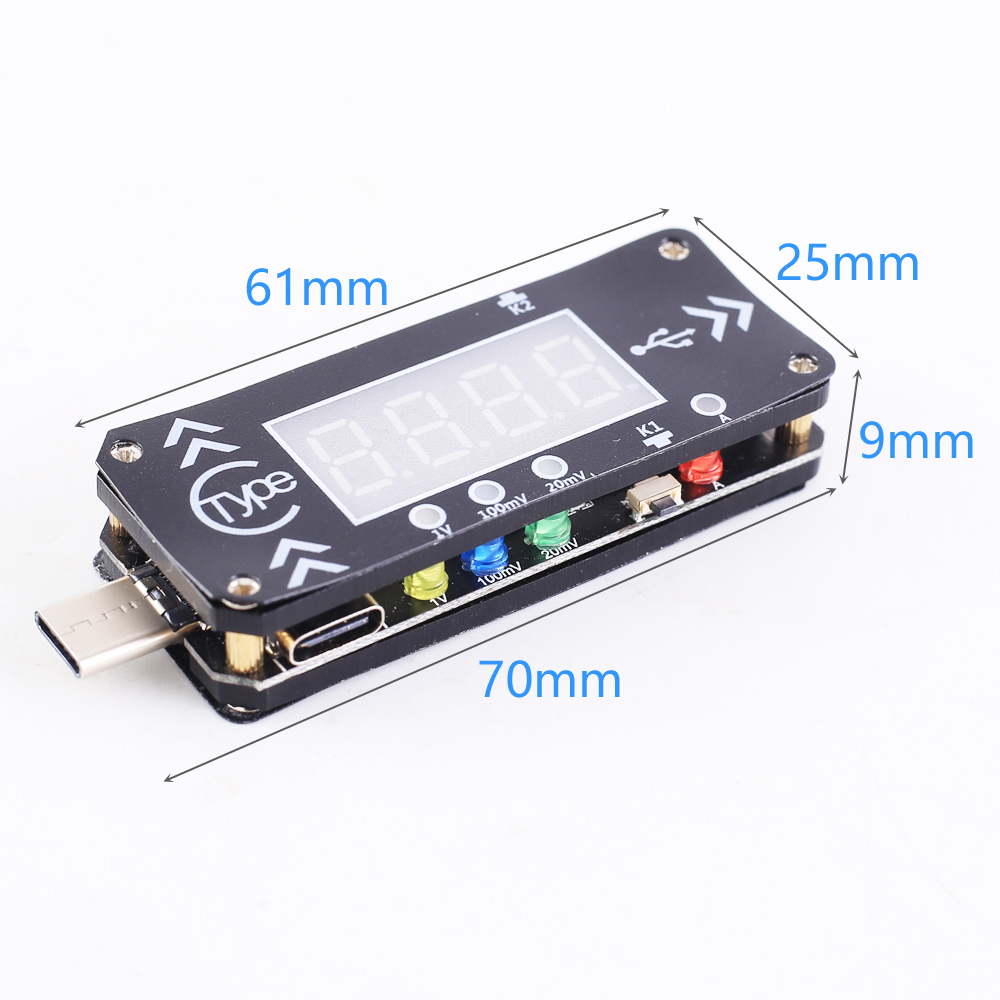

Size:70*25*9mm
Set Mode:
xa0 xa0 1>.Boot display:Automatically detect the PD fast charging protocol every time after power is turned on.
xa0 xa0 xa0 xa0 1.1>.Input device don’t support PD protocol if display ‘----’.
xa0 xa0 xa0 xa0 1.2>.Input device supports PD2.0 protocol.
xa0 xa0 xa0 xa0 1.3>.Input device support PD3.0 protocol.
xa0 xa0 2>.Switch display parameter:
xa0 xa0 xa0 xa0 2.1>.Short press K1 button to switch display output voltage or output current or both in turns.
xa0 xa0 xa0 xa0 2.2>.Keep press K1 button about 5second to turn OFF screen and indicator.But XY-WPDT keeps output voltage.
xa0 xa0 3>.Adjust voltage grade:
xa0 xa0 xa0 xa0 3.1>.Short press K2 button to set voltage grade.The corresponding voltage grade indicator will flash automatically.
xa0 xa0 xa0 xa0 3.2>.Short press K1 or K2 button to change voltage value. K1 is increase and K2 is decrease in this time.

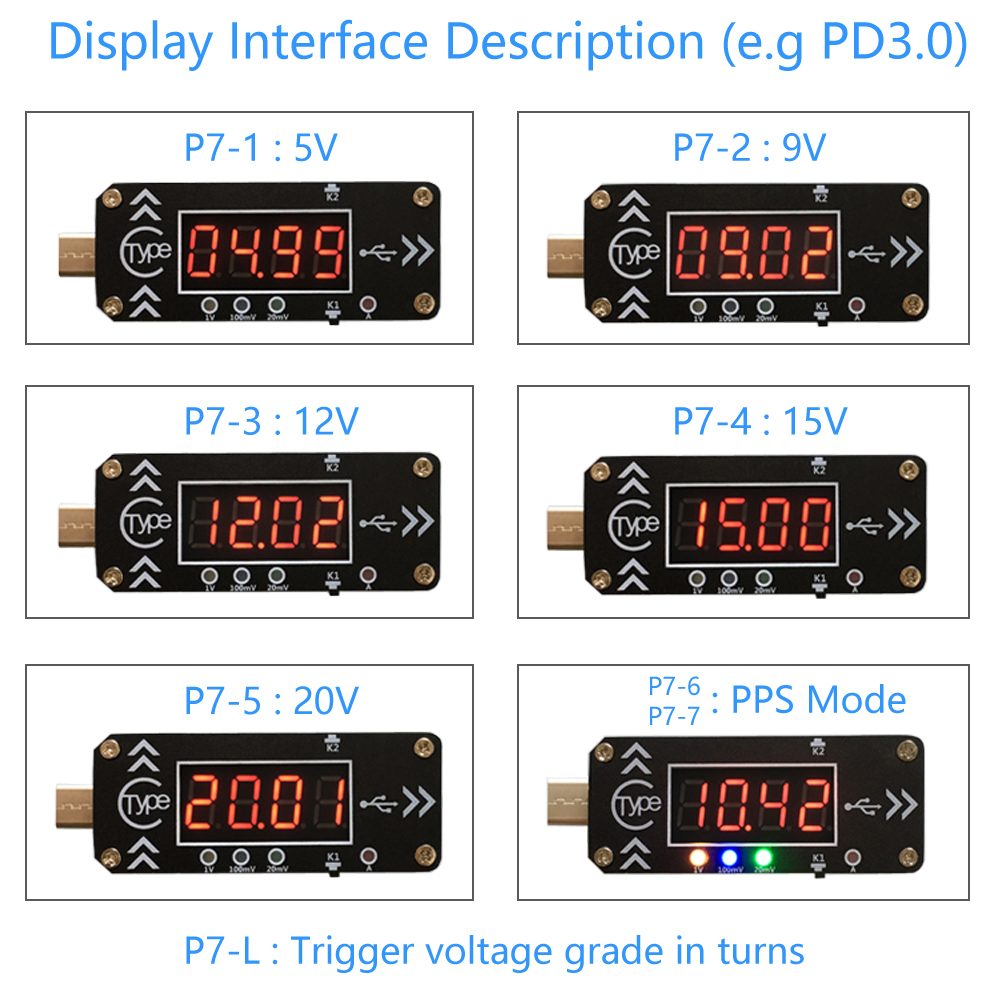

xa0 xa0 xa0 xa0 3.3>.There are 7 voltage grade P7-1 to P7-7 and P7-L. It will display voltage grade and then display corresponding voltage value.
xa0 xa0 xa0 xa0 3.4>.Keep press K1 button about 2second to save parameters and exit(Or without any operation within 5second).
xa0 xa0 xa0 xa0 3.5>.P7-L is the last voltage grade. Module will trigger all grades(5V/9V/12V/15V/PPS-Mode) in turns if selected this grade. Three LED indicator will lit in turns and this mode can be used for factory of charger.
xa0 xa0 xa0 xa0 3.6>.PD2.0 charger generally supports 4~5 voltage grades so screen will display P4-1 or P5-1.
xa0 xa0 xa0 xa0 3.7>.PD3.0 charger generally supports 6~7 voltage grades so screen will display P6-1 or P7-1.
xa0 xa0 xa0 xa0 3.8>.P7-1 output 5V.Yellow/Blue/Green indicator keep OFF.
xa0 xa0 xa0 xa0 3.9>.P7-2 output 9V.Yellow/Blue/Green indicator keep OFF.
xa0 xa0 xa0 xa0 3.10>.P7-3 output 12V.Yellow/Blue/Green indicator keep OFF.
xa0 xa0 xa0 xa0 3.11>.P7-4 output 15V.Yellow/Blue/Green indicator keep OFF.
xa0 xa0 xa0 xa0 3.12>.P7-5 output 5V.Yellow/Blue/Green indicator keep OFF.
xa0 xa0 xa0 xa0 3.13>.P7-6 is PPS mode.Yellow/Blue/Green indicator keep ON.
xa0 xa0 xa0 xa0 3.14>.P7-7 is PPS mode.Yellow/Blue/Green indicator keep ON.
xa0 xa0 xa0 xa0 3.15>.P7-L is in turns mode.
xa0 xa0 4>.Set PPS step voltage:

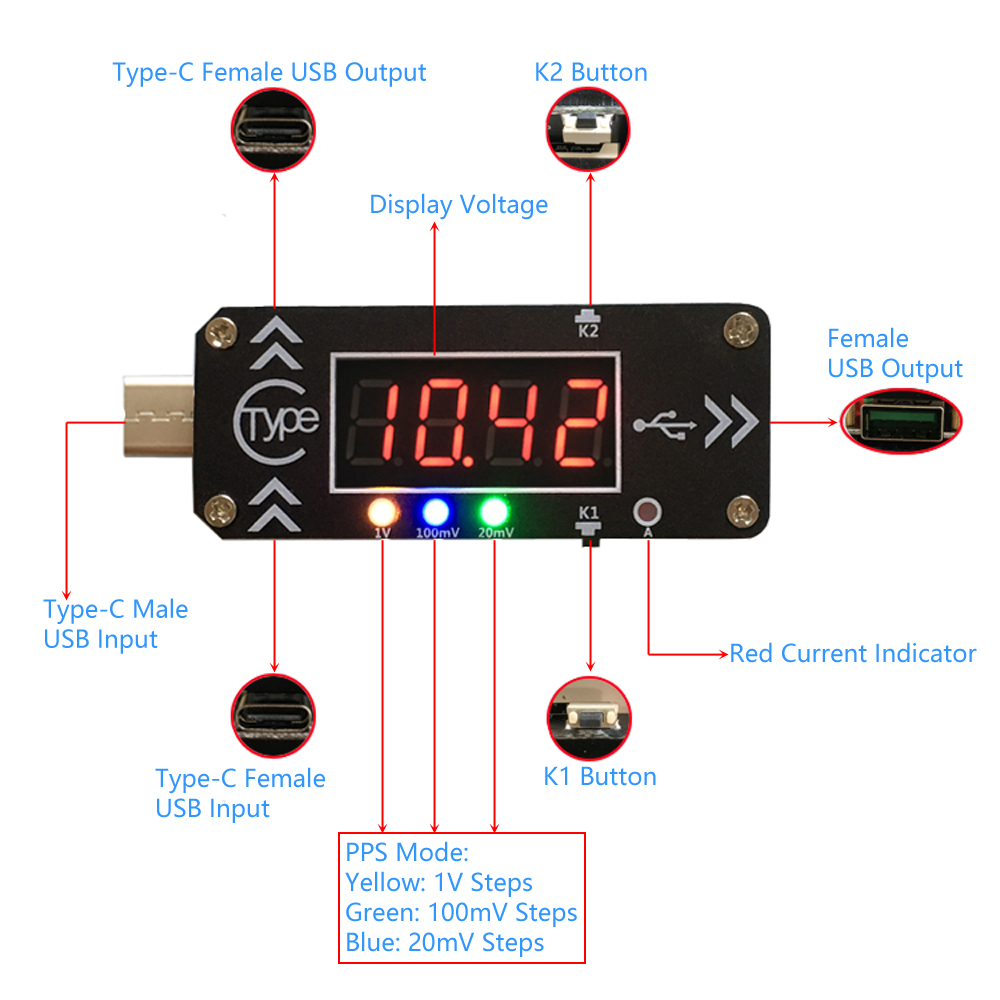

xa0 xa0 xa0 xa0 4.1>.Make sure XY-WPDT is working at PPS mode which 1V/100mV/20mV indicator all or anyone lit which is the P7-6 or P7-7 voltage grade.
xa0 xa0 xa0 xa0 4.2>.Keep press K2 button about 3second to adjust PPS voltage and screen will flashing.First activate the 1V step voltage.
xa0 xa0 xa0 xa0 4.3>.Keep press K2 button about 3second to select next step voltage.
xa0 xa0 xa0 xa0 4.4>.Short press K1 or K2 button to change voltage value. K1 is increase and K2 is decrease in this time.
xa0 xa0 xa0 xa0 4.5>.Short press K1/K2 to exit PPS step voltage set mode and to select othersxa0 step voltage when 1V/100mV/20mV indicator both keep ON.
xa0 xa0 xa0 xa0 4.6>.Keep press K1 button about 2second to save parameters and return to normal display(Or without any operation within 5second).
Application:
xa0 xa0 1>.Router
xa0 xa0 2>.Optical modem
xa0 xa0 3>.Set-top box
xa0 xa0 4>.Laptop
xa0 xa0 5>.Charger converter
xa0 xa0 6>.Charger tester
xa0 xa0 7>.Charger factory
Show More
Description

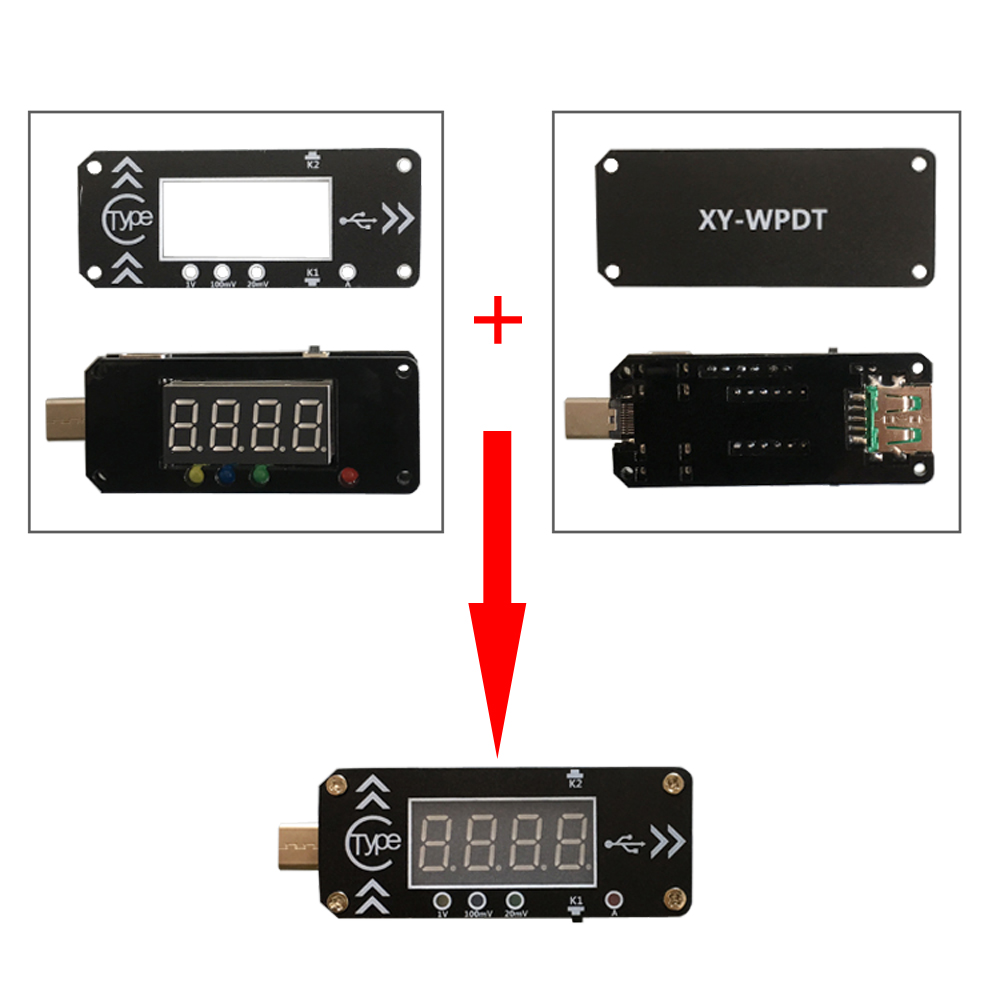

1 x XY-WPDT PD-Fast-Charger Trigger Module
1 x 100cm 5.5*2.5mm USB cable
2 x 60*24*2mm Acrylic shell
2 x Black Indicator panel
1 x Mini screwdriver
4 x M2*5mm Copper column
8 x M2*5mm Screw
Description:
XY-WPDT is a PD-Fast-Charger Trigger. It can make a PD charger becomes DC 4V~20V adjustable power supply module.It supports PD2.0 and PD3.0 protocol.
Package includes:
1 x XY-WPDT PD-Fast-Charger Trigger Module
1 x 100cm 5.5*2.5mm USB cable
2 x 60*24*2mm Acrylic shell
2 x Black Indicator panel
1 x Mini screwdriver
4 x M2*5mm Copper column
8 x M2*5mm Screw
