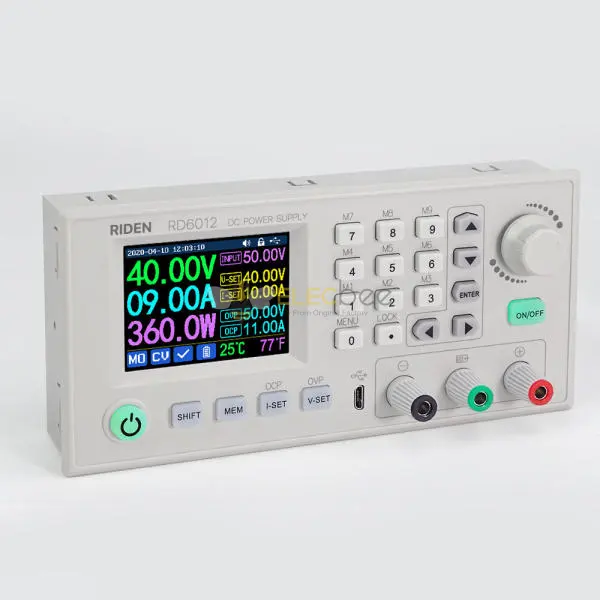

Elecbee RD6012 RD6012W USB WiFi DC-DC Voltage Current Step Down Power Supply Module Buck Voltage Converter Voltmeter 60V 12A
SKU: EB0045190
Favorites
Key Features
准确的细节：
技术参数：
| 模型 | RD6006 | RD6006-W | RD6012 | RD6012-W |
| 输入电压范围 | 6-70.00V | |||
| 输出电压范围 | 0-60.00V | |||
| 输出电流范围 | 0-6.000A | 0-12.00A | ||
| 输出功率范围 | 0-360W | 0-720W | ||
| 输入电压测量分辨率 | 0.01V | |||
| 输出电压设置测量分辨率 | 0.01V | |||
| 输出电流设定测量分辨率 | 0.001A | 0.01A | ||
| 电池电压测量分辨率 | 0.01V | |||
| 输入电压测量精度 | ±(1%+5位) | |||
| 设置和测量之间的输出电压精度 | ±(0.3%+3位) | |||
| 设置和测量之间的输出电流精度 | ±(0.5%+5位) | |||
| 电池电压测量精度 | ±(0.5%+3位) | |||
| 充电时自动切断电流值 | 10毫安 | 100毫安 | ||
| 输出纹波典型 | 100mV VPP | 250mV VPP@6A | ||
| 工作温度范围 | -10℃~40℃ | |||
| 外接传感器温度检测范围： | -10℃~100℃/0℉~200℉ | |||
| 外部传感器 温度检测精度 | ±3℃/±6℉ | |||
| 恒压模式响应时间 | 2ms（0.1A-5A负载） | 2ms（0.1A-5A负载） | ||
| 恒压模式负载 调节 | ±(0.1%+2位) | |||
| 恒流模式负载 调节 | ±(0.1%+3位) | |||
| 容量测量范围 | 0-9999.99Ah | |||
| 能量测量范围 | 0-9999.99Wh | |||
| 容量和能量统计误差 | ±2％ | |||
| 降压工作模式 | 电压降 >1V 和 >10% | |||
| 冷却风扇启动条件 |
输出电压>40V 或输出电流 >4A 或系统温度>45℃ |
输出电流>8A 或系统温度>45℃ |
||
| 工作时冷却风扇关闭状态 |
输出电压<40V 和输出电流<3.9A 和系统温度<45℃ |
输出电流<7.9A 和系统温度<45℃ |
||
| 过温保护 | 系统温度>80℃ | |||
| 屏幕亮度设置 | 0-5（共6级） | |||
| 屏幕 | 2.4 英寸彩色高清显示屏 | |||
| 重量（含包装） | 约607g | 约 642 克 | ||
| 产品尺寸 | 167*81*65mm | |||
| 支持USB通讯 | 是的 | |||
| 支持WiFi通讯 | 不 | 是的 | 不 | 是的 |
包裹包括：
1 个电源模块
不te before buying:
1. RD6012系列有两个版本：RD6012和RD6012-W，RD6012-W有WIFI板，RD6012没有。 RD6012-W可以使用WIFI板连接APP，也可以使用USB micro数据线连接PC软件。 RD6012没有WIFI板，只支持通过USB micro数据线连接的PC软件，不支持APP。 wifi板连接PC软件，现在不支持了。
不te: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2、PC端软件，目前仅支持win 7及以上。 APP方面，仅支持Android 5.0及以上。 APP和PC端软件，可能存在不兼容问题，购买前请先下载，如果可以下载安装，可以下单，否则停止购买。 如果您在购买前没有测试PC软件和APP功能，发现除PC软件或APP外的产品都可以正常工作，我们拒绝退款。
3. S12A机箱，不含任何电源。 部分图片显示RD6012安装完成，开关电源和外壳。
S12A机箱只是机箱，不包含任何电源，但适用于RD6012/RD6012W和AC-DC 800w 70V开关电源，可以单独购买，方便组装。
英文组装说明：https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
所有 RD6012/RD6021W 说明书和机箱安装说明书下载链接：
1、RD6012(W)操作说明、上位机软件使用说明、APP使用说明、APP和上位机软件下载链接：
答：主要下载链接：https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
B：Mediafire：http://www.mediafire.com/folder/k5q2ecp9hnvyd/RD6012
C：备份下载链接：http://www.ruidengkeji.com/rdupdate/software/RidenPower/RidenPowerSupply_V1.0.0.6.rar
2.安卓APP：在文件链接下载 https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing，支持android 5.0 -android 10.0
IOS APP下载：搜索RdPower下载，支持IOS10.0-IOS13.4系统
3. RD6012/RD6012W操作说明视频（类似RD6006）：https://img.elecbee.com/eb/download/video/fn6ROhGrLtI.mp4
支持电源：（产品编号：1689167)
支持 S12A 机箱：（产品编号：1687955)
技术参数：
| 模型 | RD6006 | RD6006-W | RD6012 | RD6012-W |
| 输入电压范围 | 6-70.00V | |||
| 输出电压范围 | 0-60.00V | |||
| 输出电流范围 | 0-6.000A | 0-12.00A | ||
| 输出功率范围 | 0-360W | 0-720W | ||
| 输入电压测量分辨率 | 0.01V | |||
| 输出电压设置测量分辨率 | 0.01V | |||
| 输出电流设定测量分辨率 | 0.001A | 0.01A | ||
| 电池电压测量分辨率 | 0.01V | |||
| 输入电压测量精度 | ±(1%+5位) | |||
| 设置和测量之间的输出电压精度 | ±(0.3%+3位) | |||
| 设置和测量之间的输出电流精度 | ±(0.5%+5位) | |||
| 电池电压测量精度 | ±(0.5%+3位) | |||
| 充电时自动切断电流值 | 10毫安 | 100毫安 | ||
| 输出纹波典型 | 100mV VPP | 250mV VPP@6A | ||
| 工作温度范围 | -10℃~40℃ | |||
| 外接传感器温度检测范围： | -10℃~100℃/0℉~200℉ | |||
| 外部传感器 温度检测精度 | ±3℃/±6℉ | |||
| 恒压模式响应时间 | 2ms（0.1A-5A负载） | 2ms（0.1A-5A负载） | ||
| 恒压模式负载 调节 | ±(0.1%+2位) | |||
| 恒流模式负载 调节 | ±(0.1%+3位) | |||
| 容量测量范围 | 0-9999.99Ah | |||
| 能量测量范围 | 0-9999.99Wh | |||
| 容量和能量统计误差 | ±2％ | |||
| 降压工作模式 | 电压降 >1V 和 >10% | |||
| 冷却风扇启动条件 |
输出电压>40V 或输出电流 >4A 或系统温度>45℃ |
输出电流>8A 或系统温度>45℃ |
||
| 工作时冷却风扇关闭状态 |
输出电压<40V 和输出电流<3.9A 和系统温度<45℃ |
输出电流<7.9A 和系统温度<45℃ |
||
| 过温保护 | 系统温度>80℃ | |||
| 屏幕亮度设置 | 0-5（共6级） | |||
| 屏幕 | 2.4 英寸彩色高清显示屏 | |||
| 重量（含包装） | 约607g | 约 642 克 | ||
| 产品尺寸 | 167*81*65mm | |||
| 支持USB通讯 | 是的 | |||
| 支持WiFi通讯 | 不 | 是的 | 不 | 是的 |
包裹包括：
1 个电源模块
不te before buying:
1. RD6012系列有两个版本：RD6012和RD6012-W，RD6012-W有WIFI板，RD6012没有。 RD6012-W可以使用WIFI板连接APP，也可以使用USB micro数据线连接PC软件。 RD6012没有WIFI板，只支持通过USB micro数据线连接的PC软件，不支持APP。 wifi板连接PC软件，现在不支持了。
不te: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2、PC端软件，目前仅支持win 7及以上。 APP方面，仅支持Android 5.0及以上。 APP和PC端软件，可能存在不兼容问题，购买前请先下载，如果可以下载安装，可以下单，否则停止购买。 如果您在购买前没有测试PC软件和APP功能，发现除PC软件或APP外的产品都可以正常工作，我们拒绝退款。
3. S12A机箱，不含任何电源。 部分图片显示RD6012安装完成，开关电源和外壳。
S12A机箱只是机箱，不包含任何电源，但适用于RD6012/RD6012W和AC-DC 800w 70V开关电源，可以单独购买，方便组装。
英文组装说明：https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
所有 RD6012/RD6021W 说明书和机箱安装说明书下载链接：
1、RD6012(W)操作说明、上位机软件使用说明、APP使用说明、APP和上位机软件下载链接：
A：主要下载链接：https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
B：媒体之火：http://www.mediafire.com/folder/k5q2ecp9hnvyd/RD6012
C：备份下载链接：http://www.ruidengkeji.com/rdupdate/software/RidenPower/RidenPowerSupply_V1.0.0.6.rar
2. Android APP: download at file link https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing, Support android 5.0 -android 10.0
IOS APP下载：搜索RdPower下载，支持IOS10.0-IOS13.4系统
3. RD6012/RD6012W操作说明视频（类似RD6006）：https://img.elecbee.com/eb/download/video/fn6ROhGrLtI.mp4
Show More
Description
Precise details:
Technical Parameter:
| Model | RD6006 | RD6006-W | RD6012 | RD6012-W |
| Input voltage range | 6-70.00V | |||
| Output voltage range | 0-60.00V | |||
| Output current range | 0-6.000A | 0-12.00A | ||
| Output power range | 0-360W | 0-720W | ||
| Input voltage measurement resolution | 0.01V | |||
| Output voltage setting measurement resolution | 0.01V | |||
| Output current setting measurement resolution | 0.001A | 0.01A | ||
| Battery voltage measurement resolution | 0.01V | |||
| Input voltage measurement accuracy | ±(1%+5 digits) | |||
| Output voltage accuracy between setting and measurement | ±(0.3%+3 digits) | |||
| Output current accuracy between setting and measurement | ±(0.5%+5 digits) | |||
| Battery voltage measurement accuracy | ±(0.5%+3 digits) | |||
| Automatic cut off current value when charging | 10mA | 100mA | ||
| Output ripple typical | 100mV VPP | 250mV VPP@6A | ||
| Working temperature range | -10℃~40℃ | |||
| External sensor Temperature detection range: | -10℃~100℃/0℉~200℉ | |||
| External sensor Temperature detection accuracy | ±3℃/±6℉ | |||
| Constant voltage mode response time | 2ms（0.1A-5A Load） | 2ms（0.1A-5A Load） | ||
| Constant voltage mode load regulation | ±(0.1%+2 digits) | |||
| Constant current mode load regulation | ±(0.1%+3 digits) | |||
| Capacity measurement range | 0-9999.99Ah | |||
| Energy measurement range | 0-9999.99Wh | |||
| Capacity and energy statistical error | ±2％ | |||
| Buck working mode | Voltage drop >1V and >10% | |||
| Cooling fan start condition |
Output voltage >40V or Output current >4A or System temperature >45℃ |
Output current>8A or System temperature>45℃ |
||
| Cooling fan shut down condition when working |
Output voltage <40V and Output current <3.9A and System temperature<45℃ |
Output current <7.9A and System temperature <45℃ |
||
| Over temperature protection | System temperature >80℃ | |||
| Screen brightness setting | 0-5(6 level in total) | |||
| Screen | 2.4 inch color HD display | |||
| Weight(with package) | About 607g | About 642g | ||
| Product dimension | 167*81*65mm | |||
| Support USB communication | YES | |||
| Support WiFi communication | No | yes | No | yes |
Package includes:
1 x Power module
Note before buying:
1. RD6012 series has two versions: RD6012 and RD6012-W, RD6012-W have WIFI board, RD6012 doesn't have. RD6012-W can use the WIFI board to connect APP, also use USB micro cable to connect PC software. RD6012 doesn't have a WIFI board, it only supports PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.
Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2. For PC software, it only supports win 7 and above for now. For APP, it only supports Android 5.0 and above. For APP and PC software, because there may be incompatibilities problems, please download first before buying, if you can download and install, you can make the order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products work fine except the PC software or APP, we refuse to refund.
3. For the S12A case, not containing any power supply. some picture show installation finished by RD6012, switch power and case.
For the S12A case, it is just case, not containing any power supply, but it is suitable for RD6012/RD6012W and AC-DC 800w 70V switch power supply, you can buy them separately to assemble easy.
Assemble instruction in English: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
All RD6012/RD6021W instruction and case installation instruction download Link:
1. RD6012(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link:
A: Main download llink: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
B: Mediafire: http://www.mediafire.com/folder/k5q2ecp9hnvyd/RD6012
C: Back up download link:
2. Android APP: download at file link https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing, Support android 5.0 -android 10.0
IOS APP download: Search RdPower to download, support IOS10.0-IOS13.4 System
3. RD6012/RD6012W Operation instruction video(similar to RD6006): https://img.elecbee.com/eb/download/video/fn6ROhGrLtI.mp4
