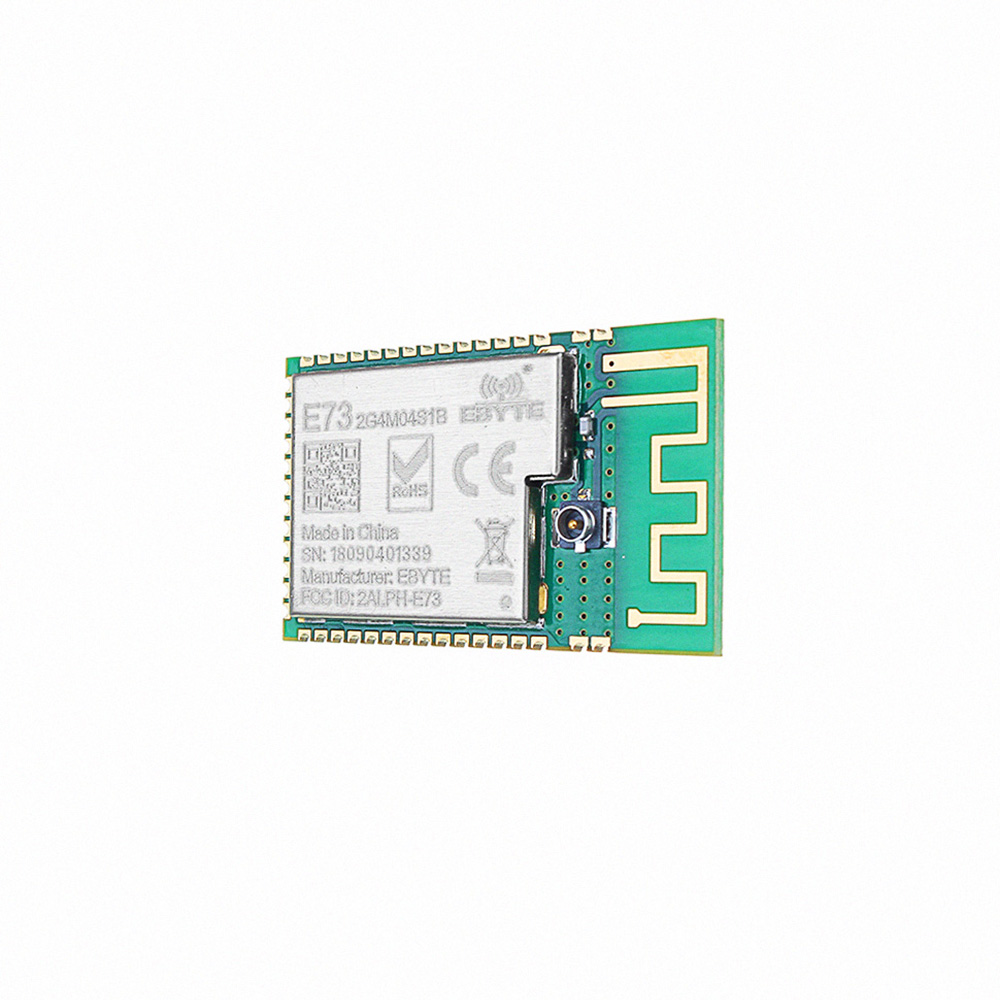

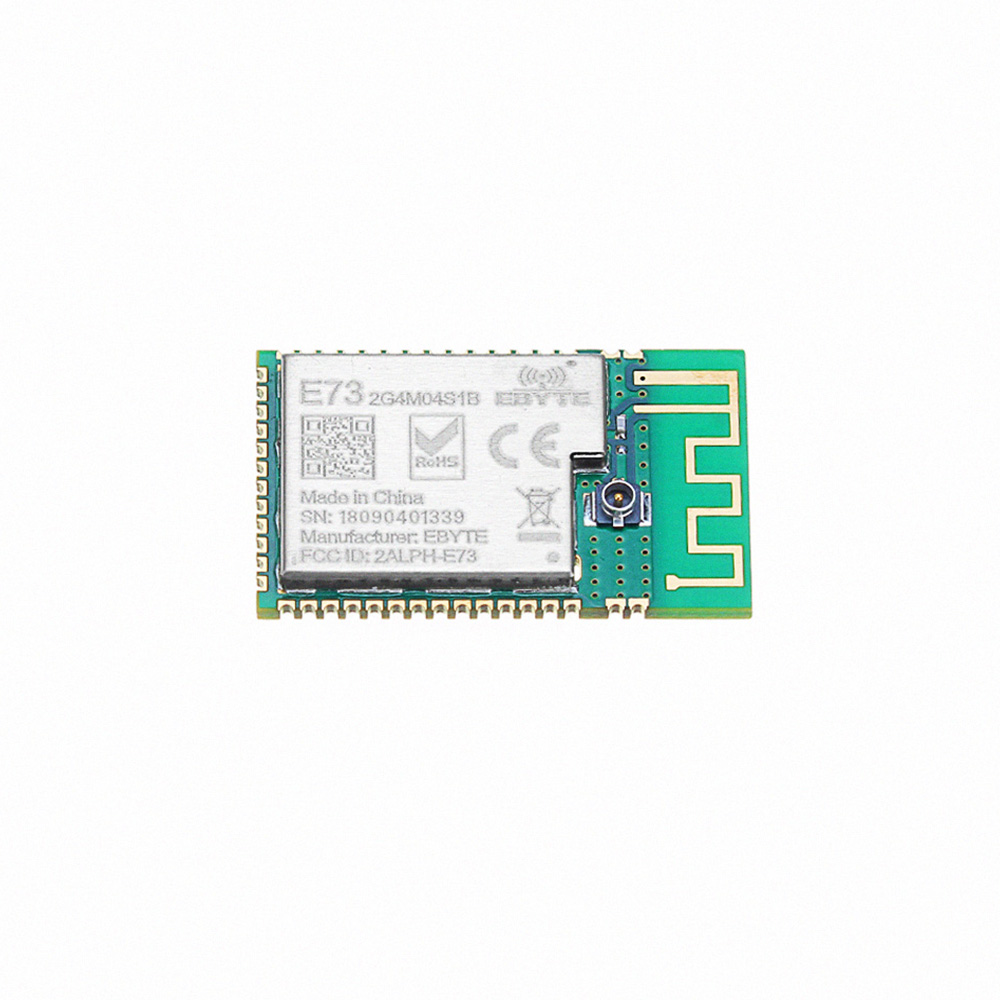

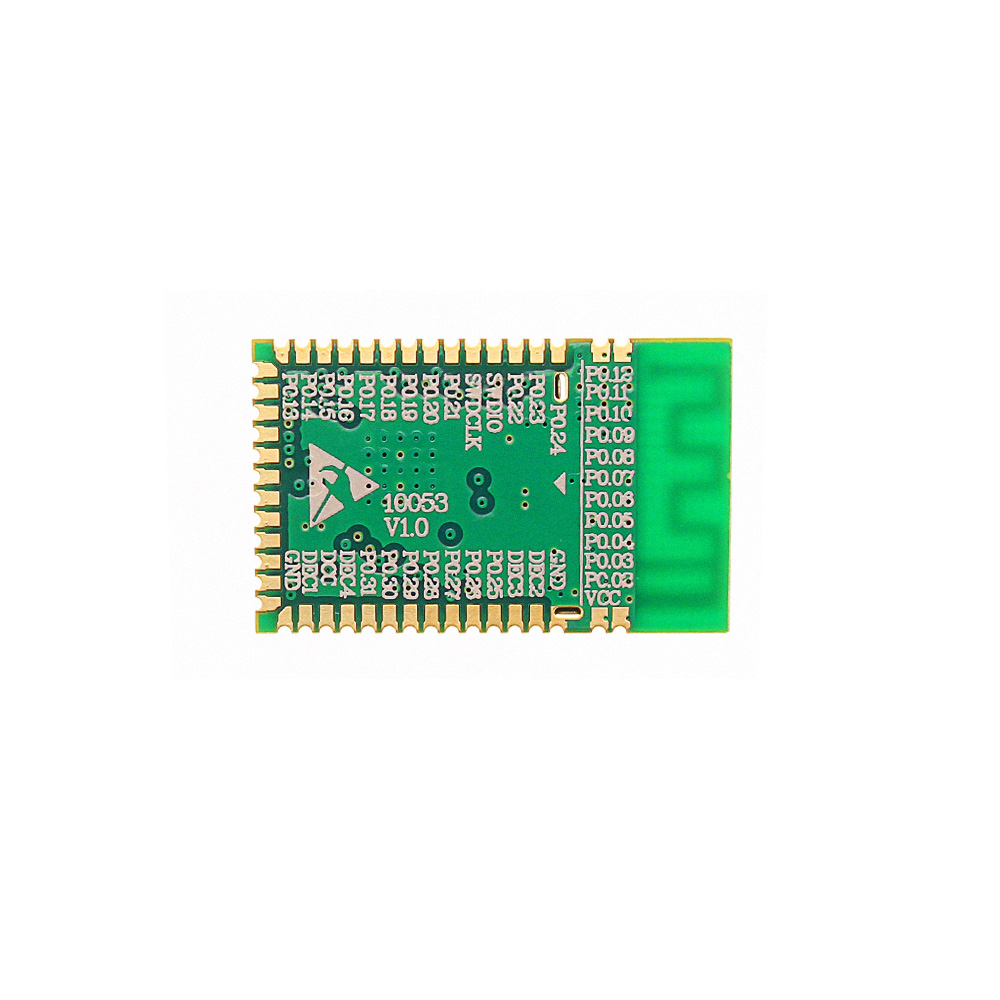

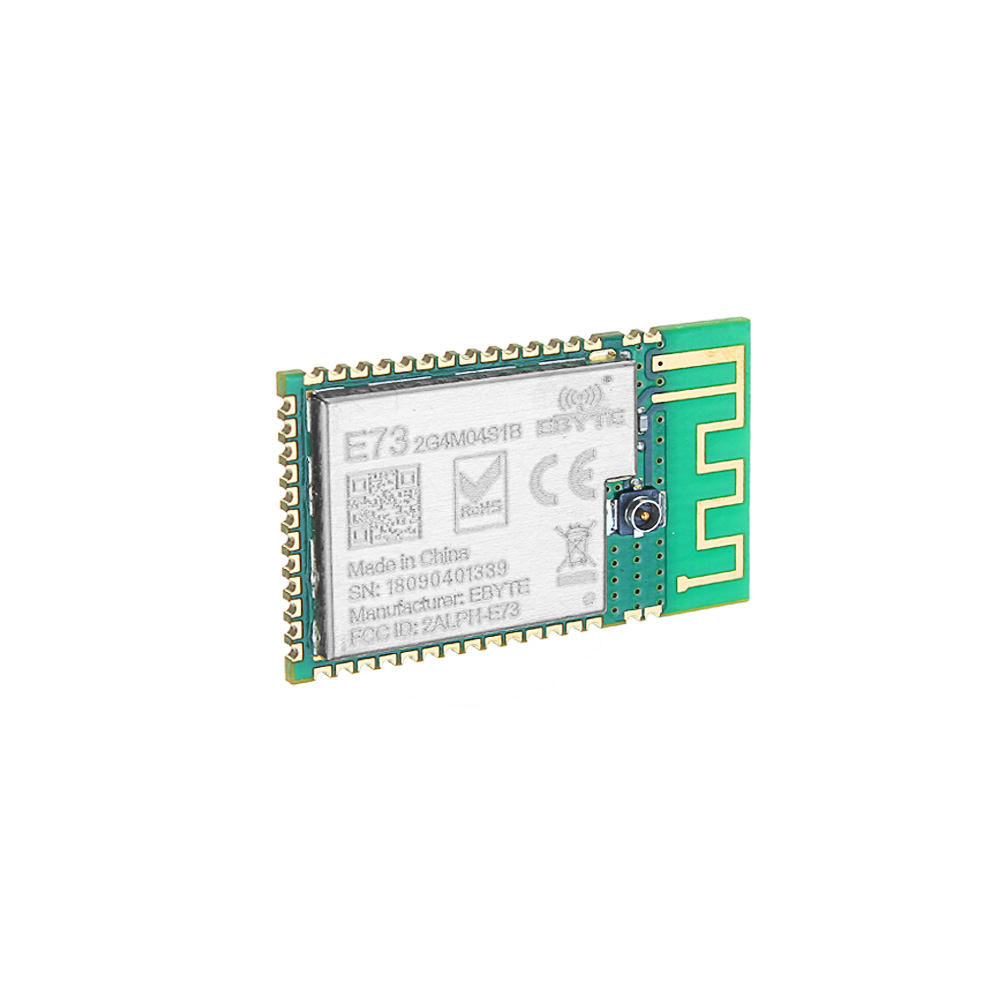

Elecbee nRF52832 2.4GHz Transceiver Wireless RF Module CDSENET E73-2G4M04S1B SMD Ble 5.0 Receiver Transmitter Bluetooth Board
SKU: EB0042926
Favorites
Key Features
| RFxa0Parameter | Value | Remark |
| Workingxa0frequency | 2379~2496xa0MHz | Default:xa0xa02.4GHzxa0(32MHzxa0oscillator) |
| Transmittingxa0power | 4xa0dBm | Aboutxa02.5mW |
| Receivingxa0sensitivity | -95xa0dBm | Airxa0dataxa0rate:xa01Mbps |
| Airxa0dataxa0rate | 1Mbps,xa02Mbps | Default:xa01Mbps |
| Testxa0distance | 100m | Inxa0openxa0andxa0clearxa0air,xa0withxa0maximumxa0power,xa05dBixa0antennaxa0gain,xa0heightxa0ofxa02m |
| airxa0dataxa0rate:xa01Mbps | ||
| Hardwarexa0Parameter | Value | Remark |
| IC | nRF52832-QFAA/QFN48 | - |
| FLASH | 512xa0KB | - |
| RAM | 64xa0KB | - |
| Core | ARM®xa0Cortex™xa0-M4F | - |

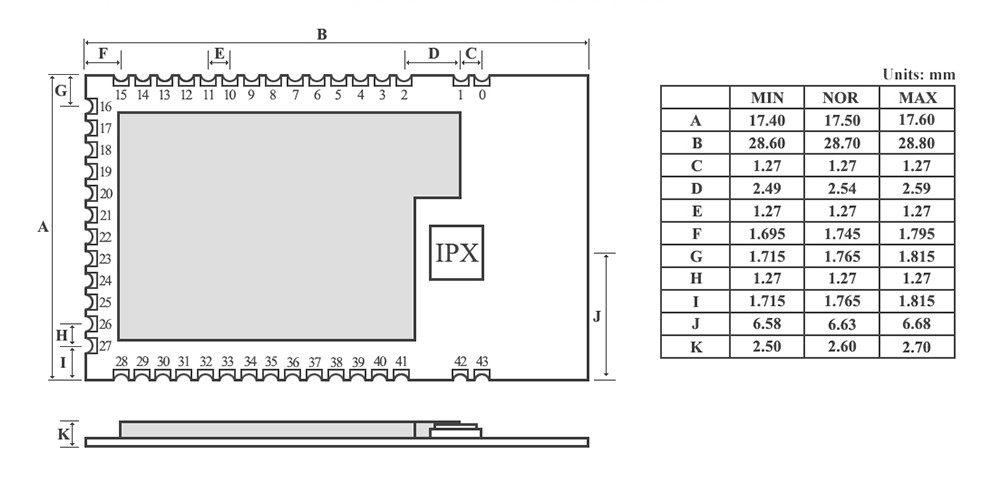

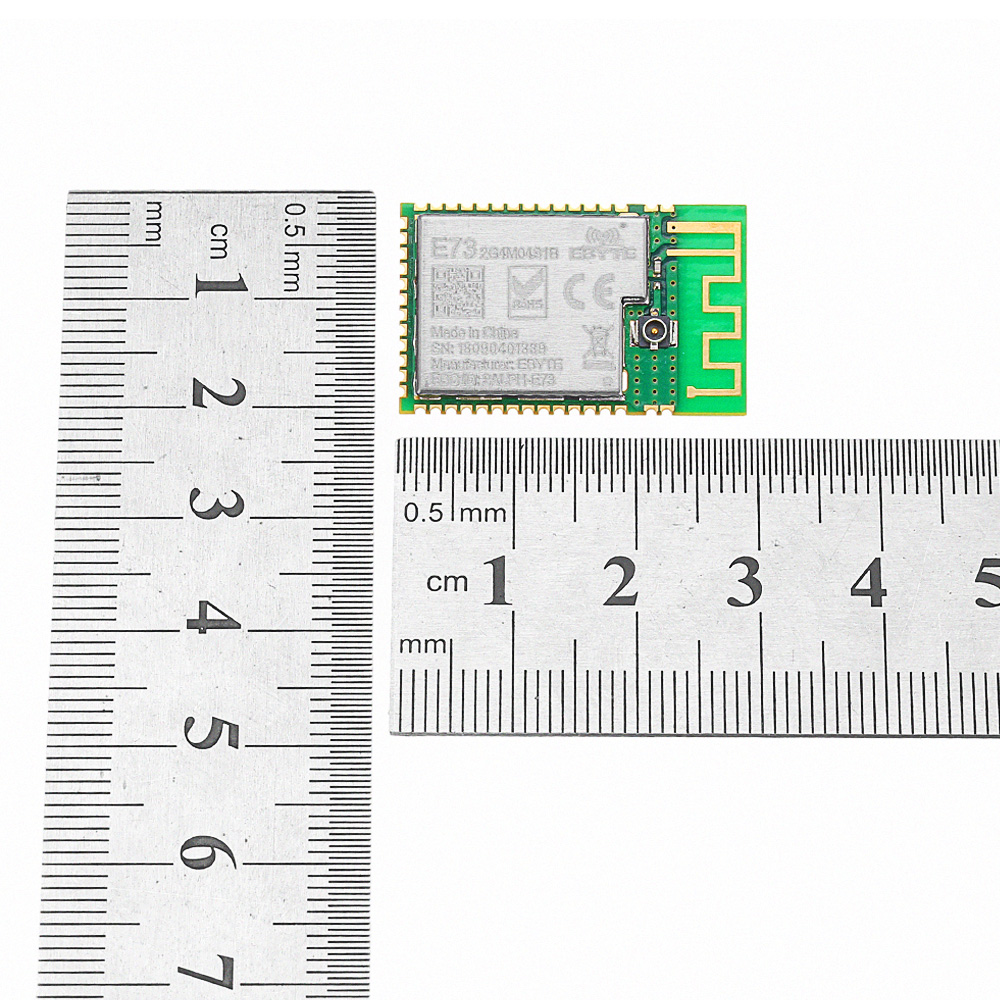

| Size | 17.5xa0*xa028.7xa0mm | - |
| Antennaxa0type | PCBxa0/xa0IPEX | - |
| Communicationxa0interface | I/O | - |
| Package | SMD | - |
| Electronicxa0parameter | Min. | Typ. | Max. | Unit | Condition |
| Powerxa0supply | 1.8 | 3.3 | 3.6 | V | xa0 |
| Communicationxa0level | 1.8 | 3.3 | 3.6 | V | xa0 |
| Transmittingxa0current | 13 | 14 | 15 | mA | 4dBmxa0(2.5mW) |
| Receivingxa0current | 4 | 5 | 6 | mA | xa0 |
| Sleepxa0current | 1 | 2 | 3 | μA | xa0 |
| Operatingxa0temperature | -40 | 20 | 85 | ℃ | xa0 |
| Operatingxa0humidity | 10 | 60 | 90 | % | xa0 |
| Storagexa0temperature | -40 | 20 | 125 | ℃ | xa0 |
Show More
Description
1 x Wireless RF Module
