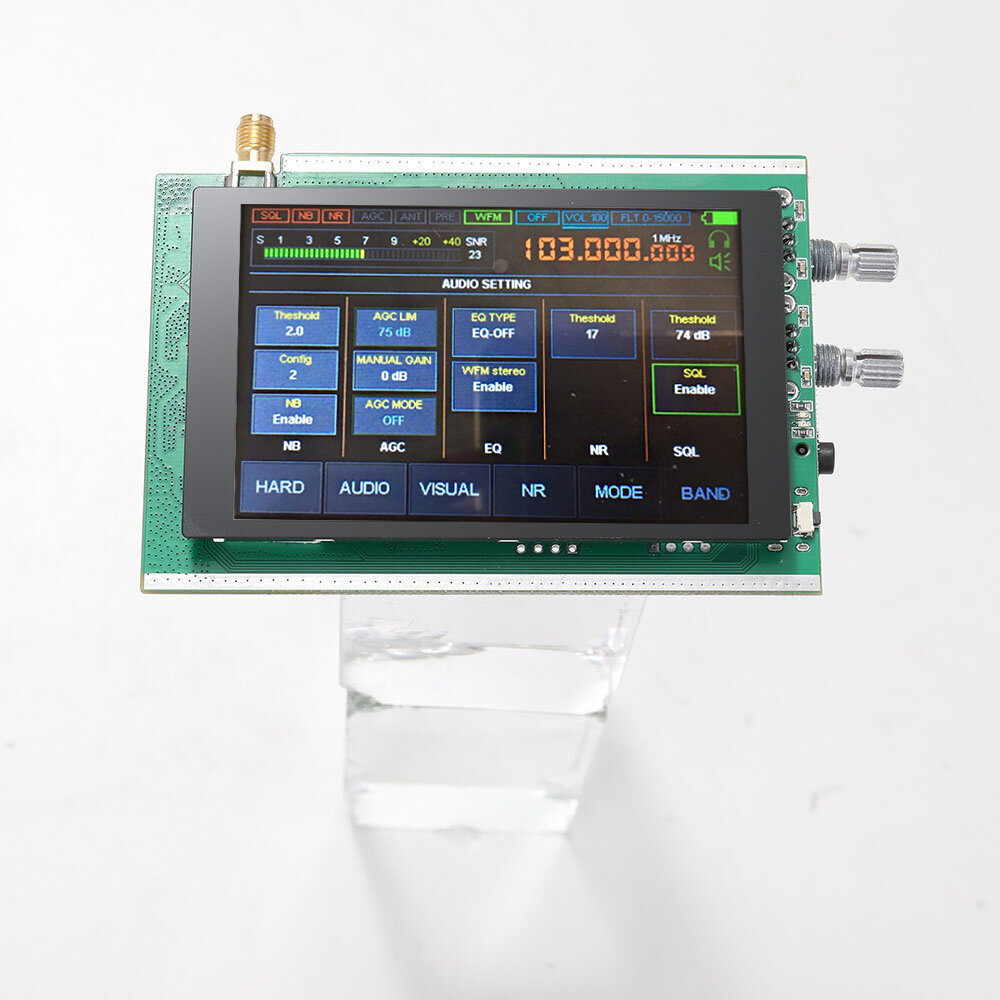

Elecbee 50K-200MHz Malachite Receiver with 3.5 Inch LCD Display Malahit Noise Reduction Backlight Control DSP SDR Full Mode UHF AGC Radio HAM

- Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer.

- Chip: use cheap but fully functional chip msi001, the powerful stm32h743 with clock frequency of 480mhz is applied.

- SDR: the radio is built on the principle of SDR - the function is determined by the loaded software.

- LCD display: with 3.5 inch touch LCD display, 160 kHz span, expandable, backlight control, SMA antenna socket.

- Control: 2 encoders with buttons and touch screen.

- Additional board: in order to improve HF reception on the telescope antenna, an additional board with a source follower is developed, the board will be built into the standard receiver design.

- Use: connecting to the computer via USB, you can transfer cat, IQ and audio.

- Dynamic blocking range: is about 85dB due to the characteristics of msi001 chip used.

- Consumption: 300mA when listening to headphones.

Material: PCBxa0

Color: as shown

Size(approx): 100X70mm/3.94*2.76inch

Frequency range: 50KHz to 200MHz

Power: USB(Type C)xa0 power,xa0 or install battery , ( battery not included)

All types of analog modulation: AM, SSB, NFM, WFM

Sensitivity: 0.3 μ v = 10dB at S / w up to 250MHz; no measurement was carried out due to lack of measuring equipment
