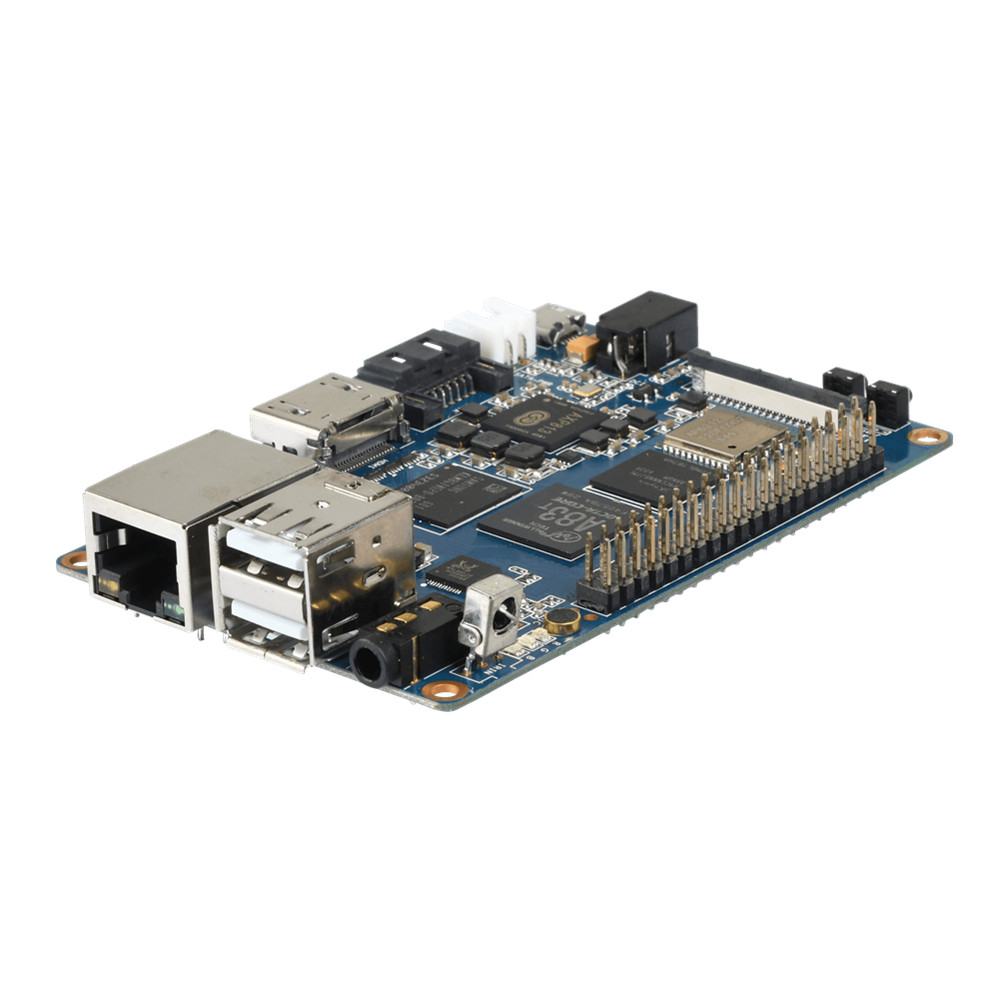

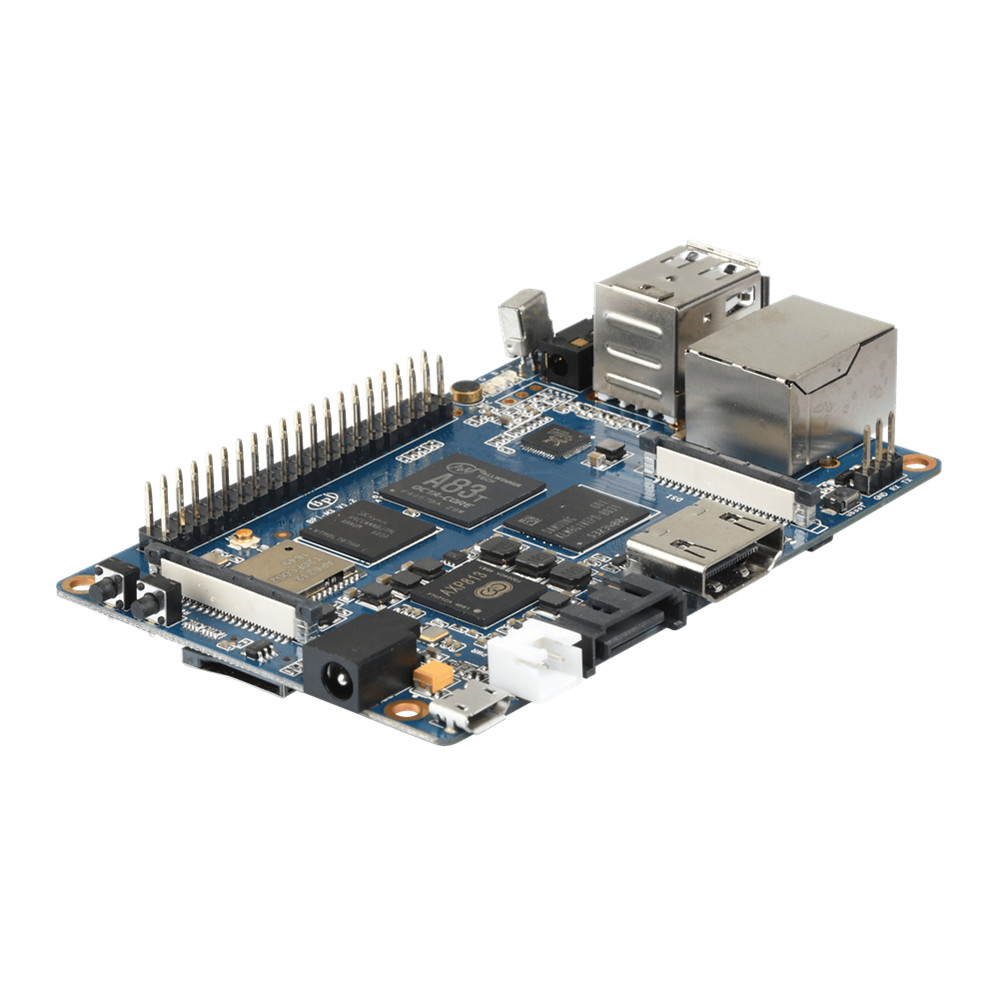

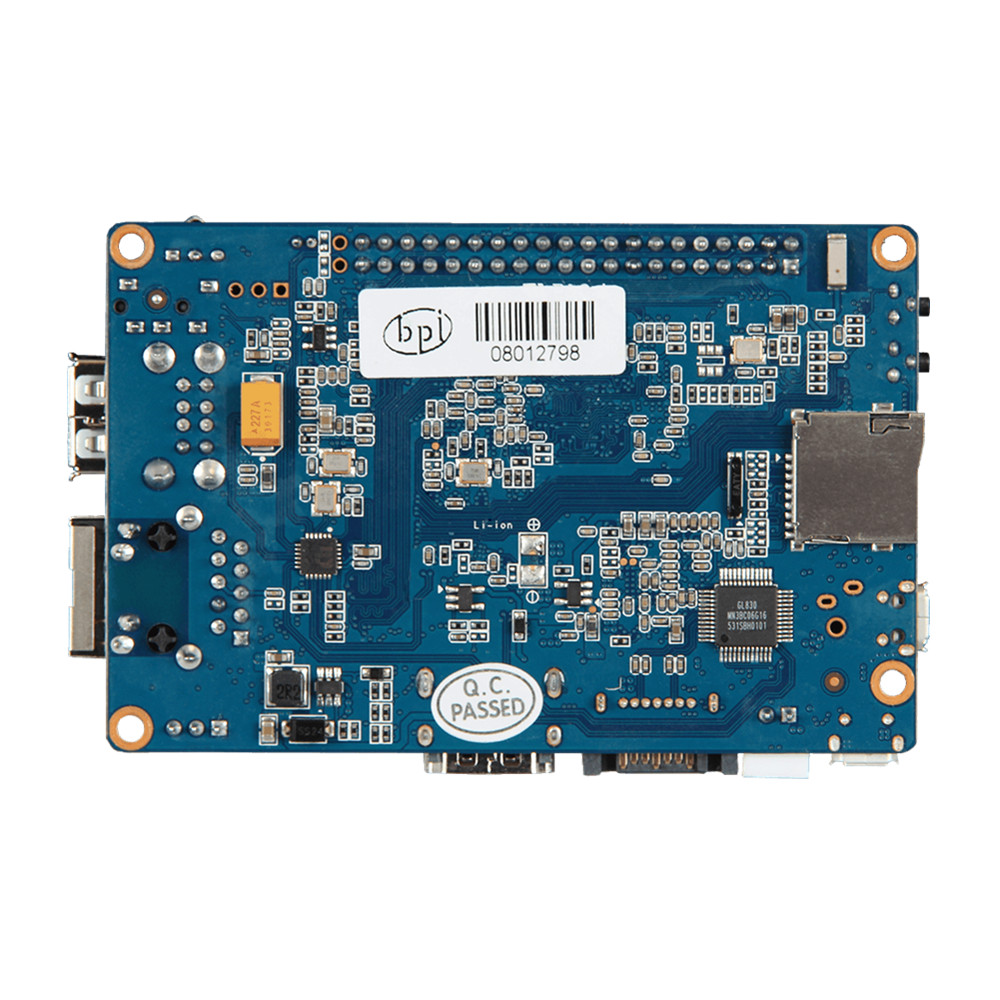

Elecbee Banana Pi BPI M3 A83T Octa-core 1.8GHz CPU 2GB LPDDR3 8GB eMMC Storage With WiFi & bluetooth Onboard Single Board Computer Development Board Mini PC Learning Board
SKU: EB0050103
Favorites
Key Features
- Allwinner A83T Octa-core 1.8GHz Powerful CPU.
- 2 GB LPDDR3 memory.
- 8 GB eMMC storage.
- HDMI out
- IR control
- WiFi & bluetooth onboard.
- MIPI DSI ingerface
- CSI camera interface
xa0
| Hardware spec | |
| CPU | Allwinner A83T ARM Cortex-A7 Octa-Core 1.8xa0GHz, 512KB L1 cache and 1MB L2 cache |
| GPU | PowerVR SGX544MP1 Comply with OpenGL ES 2.0 Open-CL 1x, DX9_3 |
| Memory | 2 GB LPDDR3 (shared with GPU) |
| Network | 10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) + Wi-Fi 802.11 b/g/n (AP6212) + bluetooth BT4.0 |
| Storage | On Board 8GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port (USB-to-SATA bridge) |
| Video Input | A CSI input connector allows for the connection of a designed camera module |
| Video Outputs | HDMI 1.4 (Type A Full), MIPI Display Serial Interface (DSI) for raw LCD Panel |
| Audio Input(s) | On board microphone |
| Audio Output(s) | 3.5mm jack and HDMI |
| USB ports | USB 2.0 PORT (x2), USB OTG (x1) |
| Remote | IR Receiver (x1) |
| GPIO | 40 Pin Headerxa0: GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM |
| Switches | Reset, Power and U-boot |
| LED | Power Status and 8P8C |
| Power Source | 5V 2A via DC Power and/or Micro USB (OTG) |
| Size & Weight | 92x60mm, 48g |
| OS | Android and Linux |
Click here to know more about BPI M3: http://wiki.banana-pi.org/Banana_Pi_BPI-M3
Show More
Description
Banana Pi M3 is a super charged single board computer with an Octa-core processor and 2GB of R AM. Along side the elite processing uit, it features Gigabit Ethernet, 2 USB, SATA, WiFi, bluetooth, and HDMI connection. It can run on a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.
Being a brother of the power hungry M2, the M3 does not want to rest while his brother goes to acquire two more cores. The M3 secretly mastered the powerful art of Octa-core to best even the M2. Unlike his careless brother, the M3 did not lose his SATA port.
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
:
1 x BPI M3 Board
