Elecbee ATmega2560 Development Board 16MHz For Arduino
SKU: EB0041730
Favorites
Key Features
ATmega 2560 @ 16MHz
Selectable 5V/3.3V operation
70 Digital IO
16 Analog inputs
14 PWM outputs
4 Hardware serial ports (UART)
Compatible with most Duemilanove and Diecimila Shields
Small form factor, 30% smaller than Mega
Easy to program, no additional hardware is required to load firmware – just plug to a USB port and you’re good to go.
ICSP Header
Can be powered through a battery or through a AC to DC adaptor
| Technical details | |
| Dimensions | 115mm x75mm x25mm |
| Weight | G.W 54g |
| Battery | Exclude |
| Item | Value |
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V/3.3V |
| Input Voltage | 7-12V |
| Digital I/O Pins | 70 |
| PWM Channels | 14 |
| Analog Input Channels | 16 |
| DC Current per I/O Pin | 20 mA |
| Flash Memory | 256 KB |
| RAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
Documentations:
Getting Started with Arduino
Arduino Language Reference
Download the Arduino Software(IDE)
Arduino FAQ
Arduin0 Introduction
Wikipedia page for Arduino
WIKI datasheet
Show More
Datasheet
Description
1 x Mega board
Product Details:

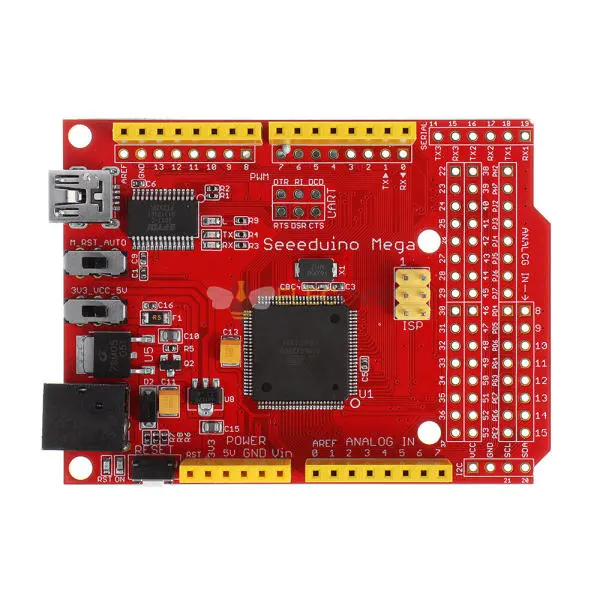

Seeeduino Arduino Mega is a powerful micro-controller derived from Mega. It features ATmega2560 processor which brings a large number of I/O pins, as much as 70 digital I/O, 16 analog inputs, 14 PWM, and 4 hardware serial ports. Compared to Mega, we shrunk the volume of Arduino Mega by at least 30% and made it 100% compatible with Seeed Shield products. And as a member of Seeeduino series, Seeeduino Arduino Mega inherits deliberate details from Seeeduino, like selectable operating voltage(3.3V/5V), right angle reset button, and so on.
1 x Mega board
