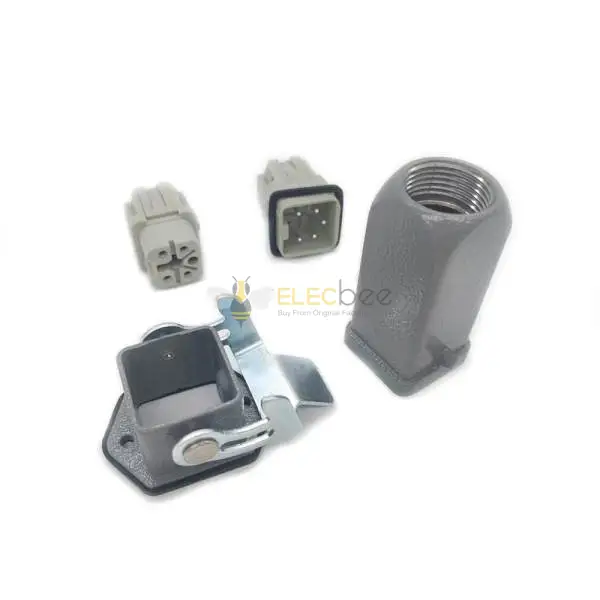

Elecbee H3A Top Entry M20 Bulkhead Mounting HA 4 Pin Screw Terminal
SKU: EB-H3A-004-BK-1L-TE-2B-S-M20
Favorites
Key Features
- H3A,Top Entry,2 Bolts,M20,H3A,Bulkhead Mounting,1 Locking lever,Metal Steel,HA,4,PC,Screw Terminal,Male，Female Pin,Copper Alloy,Silver
- Always the right plug-in connection for your requirements with three different series types
- Compatible connection: Housings are mounting and plug-in compatible with aluminum housings from well-known manufacturers
- Flexible combination: Variable connection technologies for contact inserts and terminal adapters
- Everything in one housing: Simply snap modular contact inserts for signals, data, power, and pneumatics onto the snap-in frame and mount them in the housing
- Reliable interfaces: All metal housings are EMC-ready with conductive surfaces and seals
Show More
Specifications
Attribute
Value
Search
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
4 Pin
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Hood Series
H3A
Hood orientation
Top Entry
Hood Locking
2 Bolts
Thread Size
M20
Housing Series
H3A
Housing Mounting Type
Bulkhead Mounting
Housing Locking
1 Locking lever
Housing Locking Material
Metal Steel
Inserts
HA
Insert Type
Male Contacts, Female Contacts
Insert Material
PC
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
