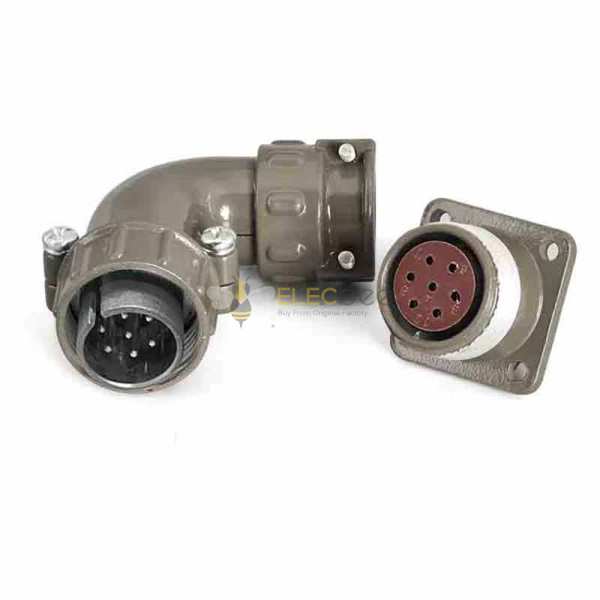

Elecbee P20 7-Pin Male Plug and Female Socket Reverse Set P20J11S Pin + P20K11A Hole Aviation Connector
SKU: EB-401-1072-L
Favorites
Key Features
- With anti-missing design
- good insulation performance
- stable working performance
- Simple structure, convenient user wiring
- Easy installation
- effective cost
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Operating Temperature
-20℃~+85℃
Rated Current
10A
Rated Voltage
150VAC
Connector Series
P20
Color
Taupe
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated, Silver Plated
Insulating Materials
PBT
Cable Diameter
6mm~12.5mm
Shell Size
20
Insulation Color
Red
