Elecbee External Trigger Delay Switch Touch Button Relay Signal Timer Module Board 24V

Name: Elecbee External Trigger Delay Switch Touch Button Relay Signal Timer Module Board 24V
Brand: Elecbee
SKU: EB0046163-24V
Price: 11.89 USD
Availability: InStock

SKU: EB0046163-24V

Favorites

Key Features

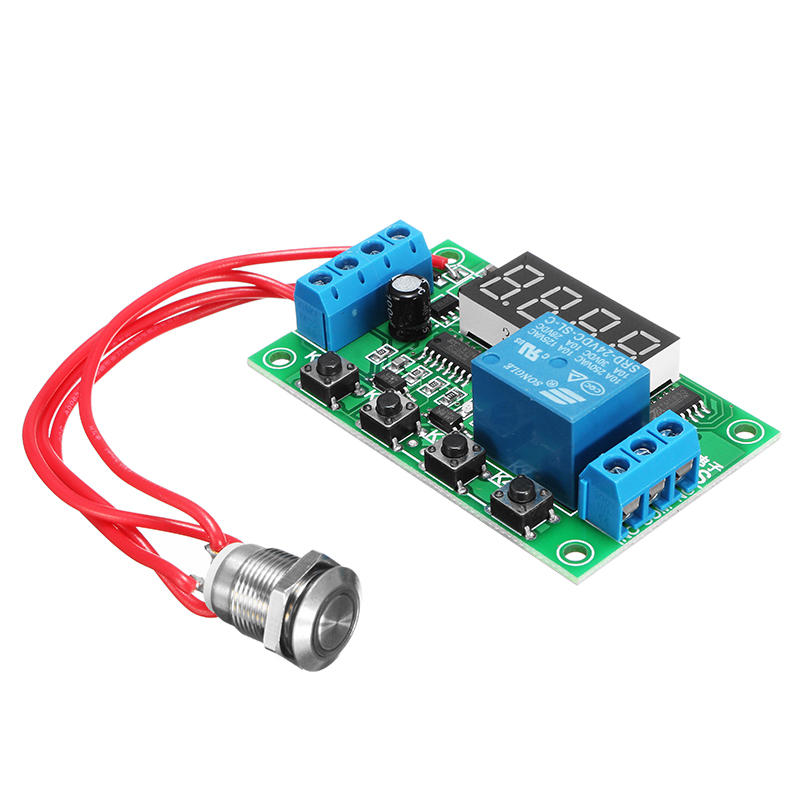

Model: YYC-2S 24 kinds of commonly used functions; can control the solenoid valve, water pump, motor, lights, etc.

Input voltage: DC 5/6/12/24V optional

Output power: can control the DC within 5A or AC load

Time range: 0.01 seconds ~ 999 minutes adjustable at any time

Terminal Description:

1. DC +: Input positive DC power supply

2. DC -: Input negative DC power supply

3. IN +: Signal input positive

4. IN -: Signal input negative

5. NO: Normally open relay interface, the relay hanging before pull-in, after pulled shorted connect to COM

6. COM: Relay Common Interface

7. NC: Normally closed relay interface, the relay is shorted connect to COM before pull-in, after pulled hanging

Function list:

P-11: Jog (offer signal to relay pull-in, the signal disappears, the relay stop)

P-12: Self-locking (offer signal to pull, give a signal again to stop relay)

P-13: Offer signal, the relay will stop automatically for A second; trigger will be invalid during the delay time

P-14: Offer signal, the relay will stop automatically for A second; trigger re-timing during the delay time

P-15: Offer signal, the relay will stop automatically for A second; trigger superimposed during the delay time

P-16: Offer signal, the relay will stop automatically for A second; trigger reset during the delay time

P-17: Offer signal, relay pull-in, input signal is disconnected, start counting time after A second power off, during the delay period offer signal again to keep output, timing stop

P-18: When power is on, the relay will pull in immediately and power will be off after A second delay; until the next power-on

P-21: Offer signal, delay A seconds, the relay pull

P-22: Offer signal, more than A seconds, the relay pull, the signal disappears, the relay stops

P-23: After the signal disappears for more than A second, the relay will be closed, the signal will disappear and the relay will stop

P-24: When the signal exceeds A second, the relay will be closed and the relay will stop after the signal disappears for more than A seconds

P-25: When the signal exceeds A second, the relay will pull in. If the signal exceeds A seconds again, the relay will stop

P-26: When the signal pull exceeds A second and stop, signal disappear and relay pull again, after A second stop

P-27: Detection of pulse signal, the relay stops; no pulse signal, the relay delay A seconds then pull; (continuous signal or signal disappear are regarded as no pulse signal)

P-28: After power on, after a second delay, the relay will be pulled until it is powered off

P-31: After power on, relay pull A seconds, off B seconds, infinite loop; power off to stop

P-32: With signal, start P-31 infinite loop; signal disappears, terminates loop

P-33: Give a signal, start P-31 infinite loop; give a signal again to terminate the loop

P-34: After the power on, the relay will pull in after A second delay and will stop after B seconds

P-35: With signal, delay A seconds later, the relay pull, after pull B seconds stop

P-36: With signal, more than A seconds, the relay pull, after pull B seconds the relay stop, the signal disappears, the timer cleared to stop

P-37: With signal, the relay automatically stop A seconds, and then timing B seconds again, duiring A + B signal trigger is invalid

P-38: With signal, the relay pull A seconds automatically stop, stop re-time after B seconds, again pull A seconds to automatically stop
