Elecbee Happymodel Crazybee F4 Lite 1S Whoop Flight Controller

SKU: EB-315-0147-L

Favorites

Key Features

Description

Specifications

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

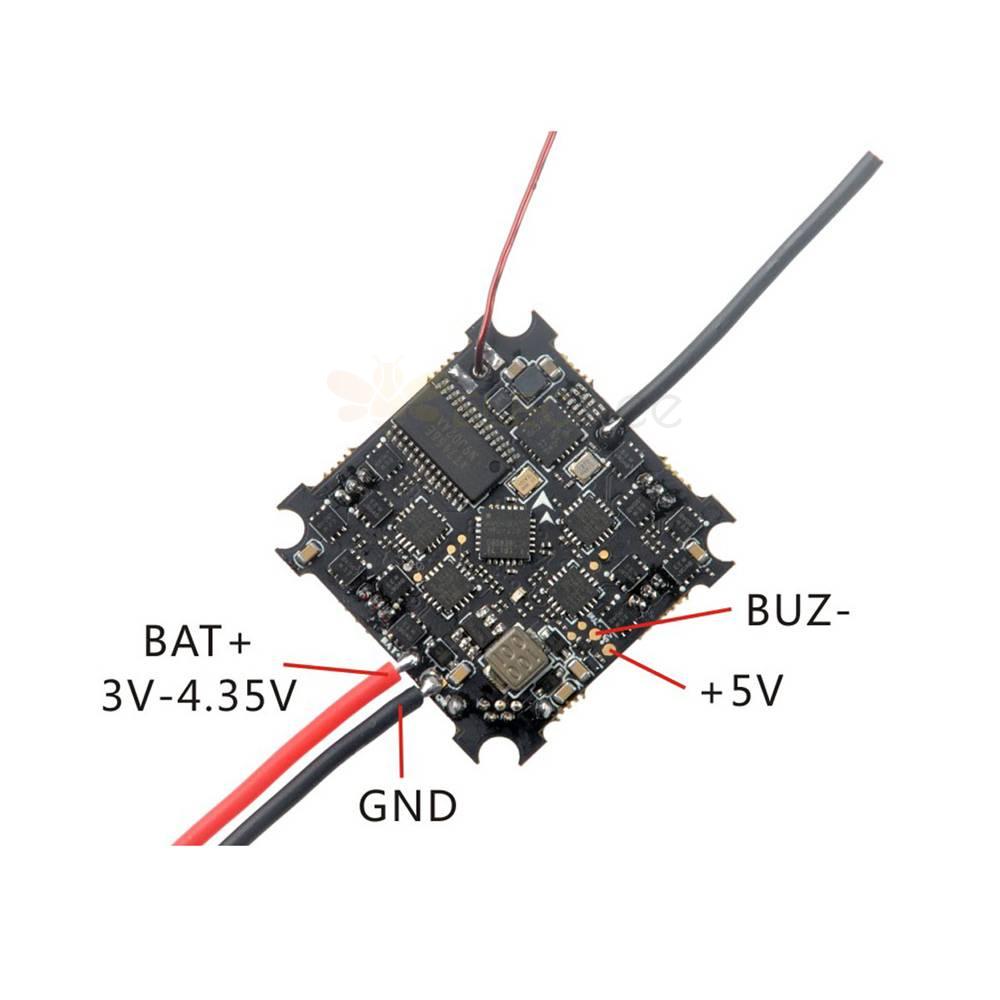

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

Onboard SPI D8

SPI BUS receiver Frsky D8 compatible

Compatible Non-EU transmitter D8 model

Channels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8GHz VTX

Output power: 25mw

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels

With Race band

Smart audio ready

package inclusion

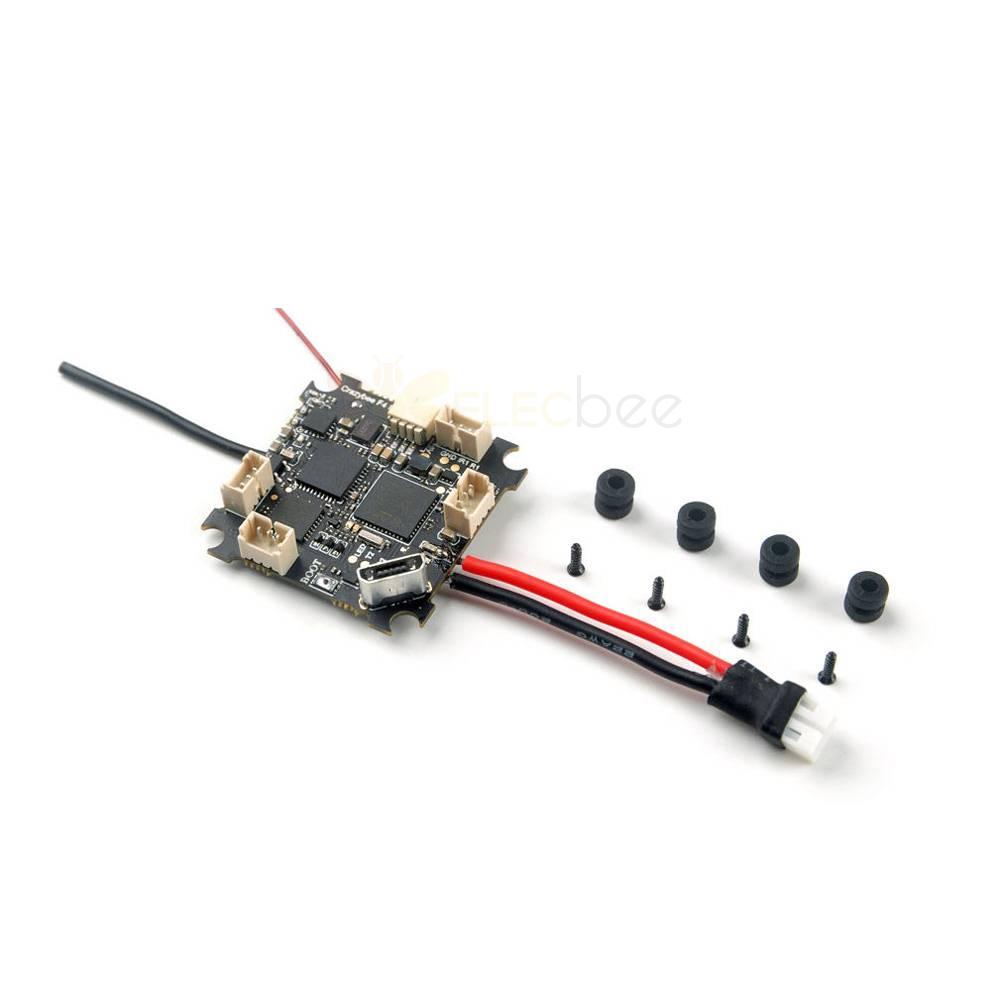

1 x Happymodel CrazyBee F4 Lite 1S Whoop Flight Controller
