- Description
Specifications
Flight Controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI Connection)
Board Size: 28.5 * 28.5mm
Power Supply: 1S-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky receiver support D8/D16 (
Built-in 5V 1A BEC
Built-in voltage detection
Firmware Target:
CrazybeeX FR Version: Recommend Betaflight 3.5.7 target CRAZYBBEF4FR
CrazybeeX FS version: Recommend Betaflight 3.5.7 target CRAZYBBEF4FS
CrazybeeX PNP version: Recommend Betaflight 3.5.7 target CRAZYBEEF4DX
Onboard 5A 4In1 ESC
EFM8BB21
Power Supply: 1-2S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory Firmware: S_H_50_REV16_7.HEX
Default Protocol: DSHOT600
Onboard Voltage and Current Detector
Voltage Meter scale “110”
Amperage Mete scale “1175”
package inclusion

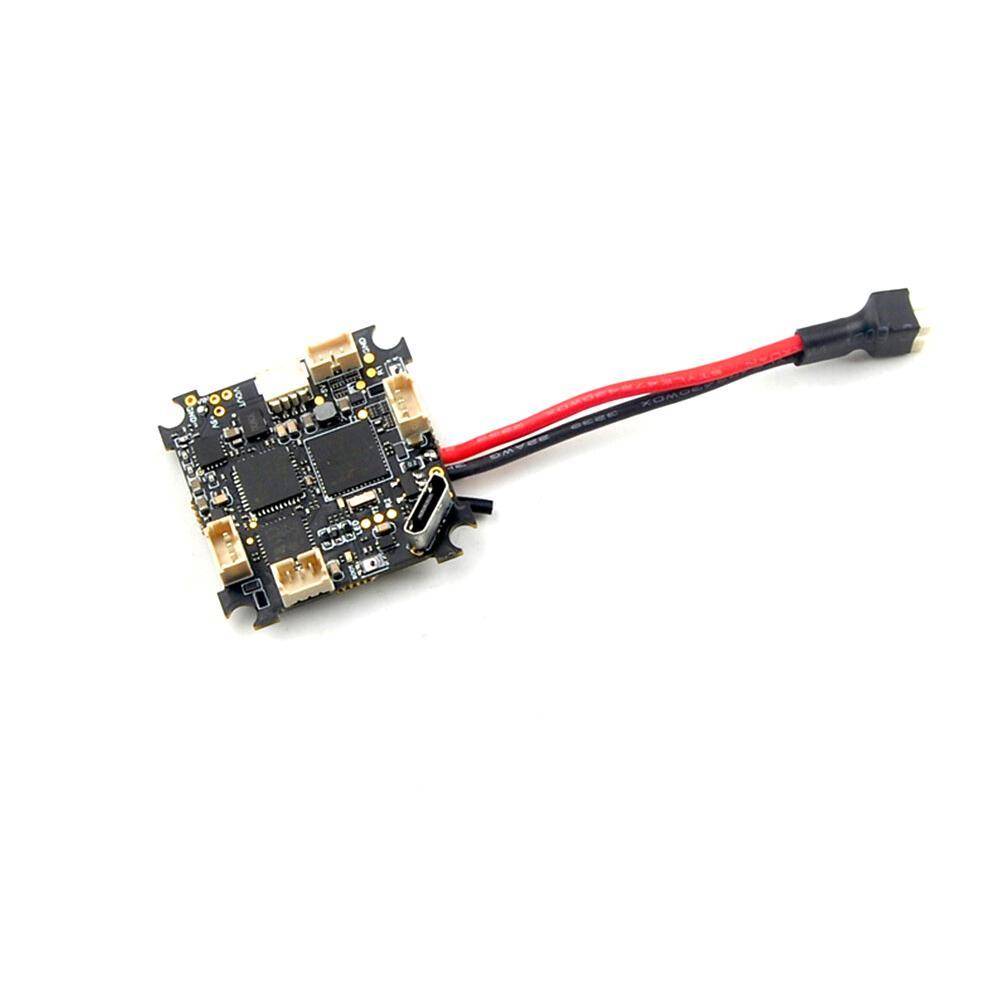

1x HappyModel CrazyBee X V2.2 F4 AIO Whoop Flight Controller (F4 FC, 5A 1-2S 4in1 ESC, 25-200mW VTX)
