Elecbee HEX Here3 CAN GNSS GPS Module w/ iStand

SKU: EB-315-0065-L

Favorites

Key Features

Description

Features

Equipped with STM32F302 high-performance processor in a real-time operating system. The framework developed by Hex provides additional stabilities. Supports future firmware updates.

Cost-efficient high precision and RTK-supported GNSS chip (base station needed for RTK). Positioning accuracy down to centimeter-level in an ideal environment.

Improved dust and water resistance (Not guaranteed to be water-proof under any situation due to the complexity of the operating environment).

Complete built-in set of Inertial Measurement Units (compass, gyroscope, and accelerometer), which satisfy advanced navigation needs.

The high data rate, upgradeability, noise immunity, and real-time features benefited from the CAN protocol.

Support from ground control software. Future updates will be available from Mission Planner.

Brand new design with improved visibility on signal LEDs.

iStand Included.

Specifications

Receiver Type: u-blox M8 high precision GNSS modules (M8P)

Satellite Constellation: GPS L1C/A, GLONASS L1OF, BeiDou B1I

Positioning accuracy: 3D FIX: 2.5 m / RTK: 0.025 m

Dimension: 76mm x 76mm x 16.6mm

Operating Temperature: -40℃ to 85℃

Navigation Update Rate : Max: 8Hz

Communication Protocol: CAN

Processor: STM32F302

IMU sensor: ICM20948

Weight: 48.8g

package inclusion

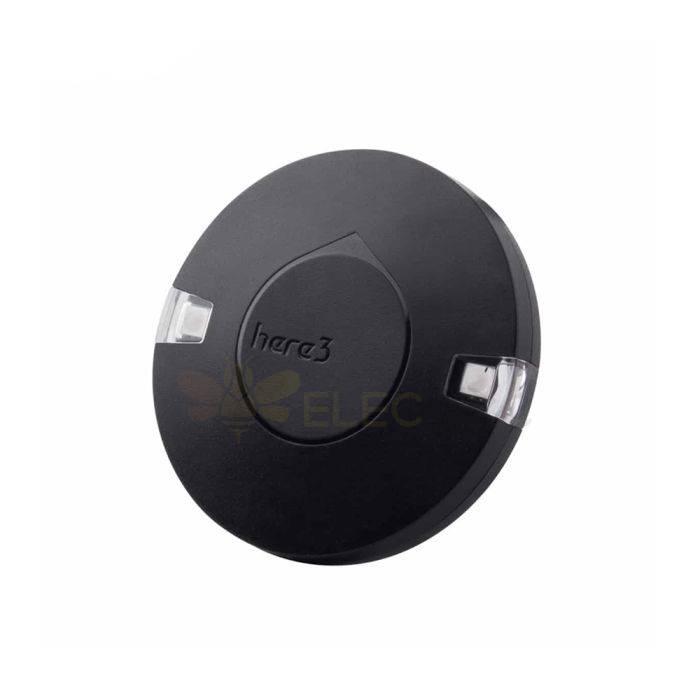

1x HEX Here3 CAN GNSS GPS Module

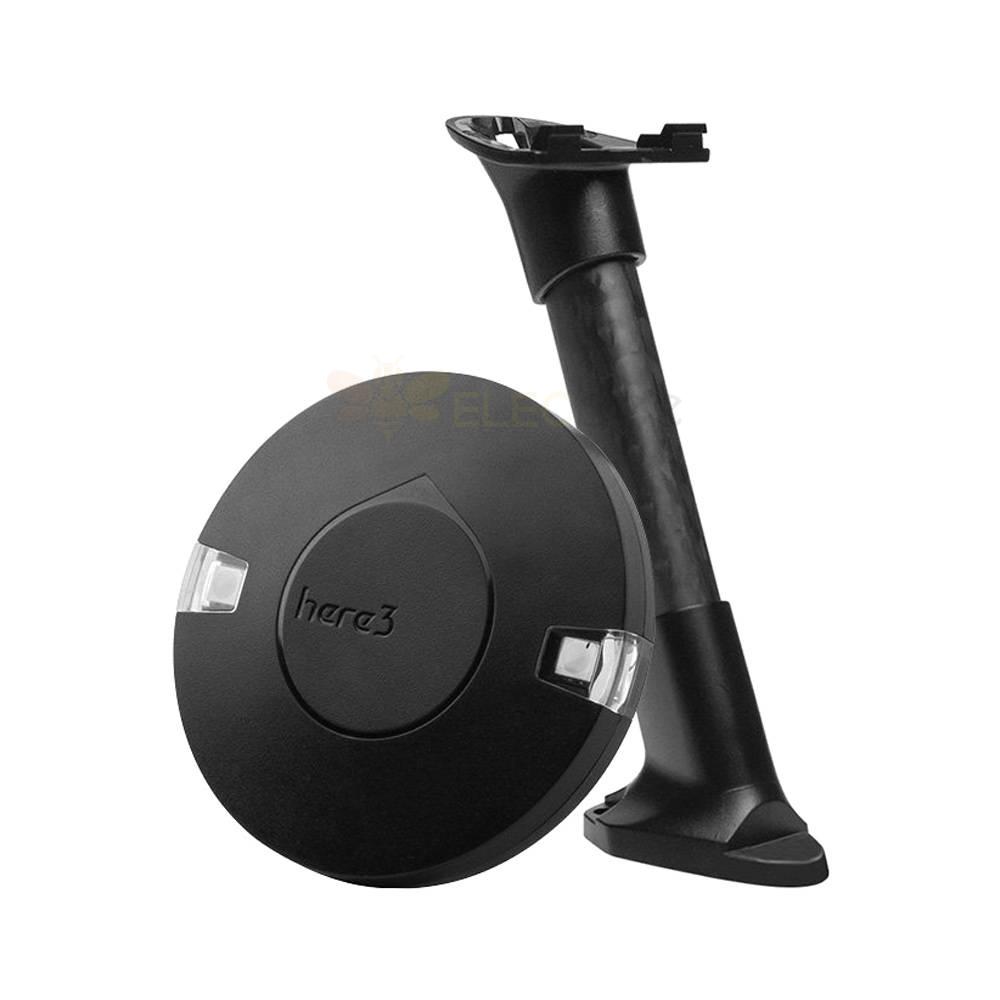

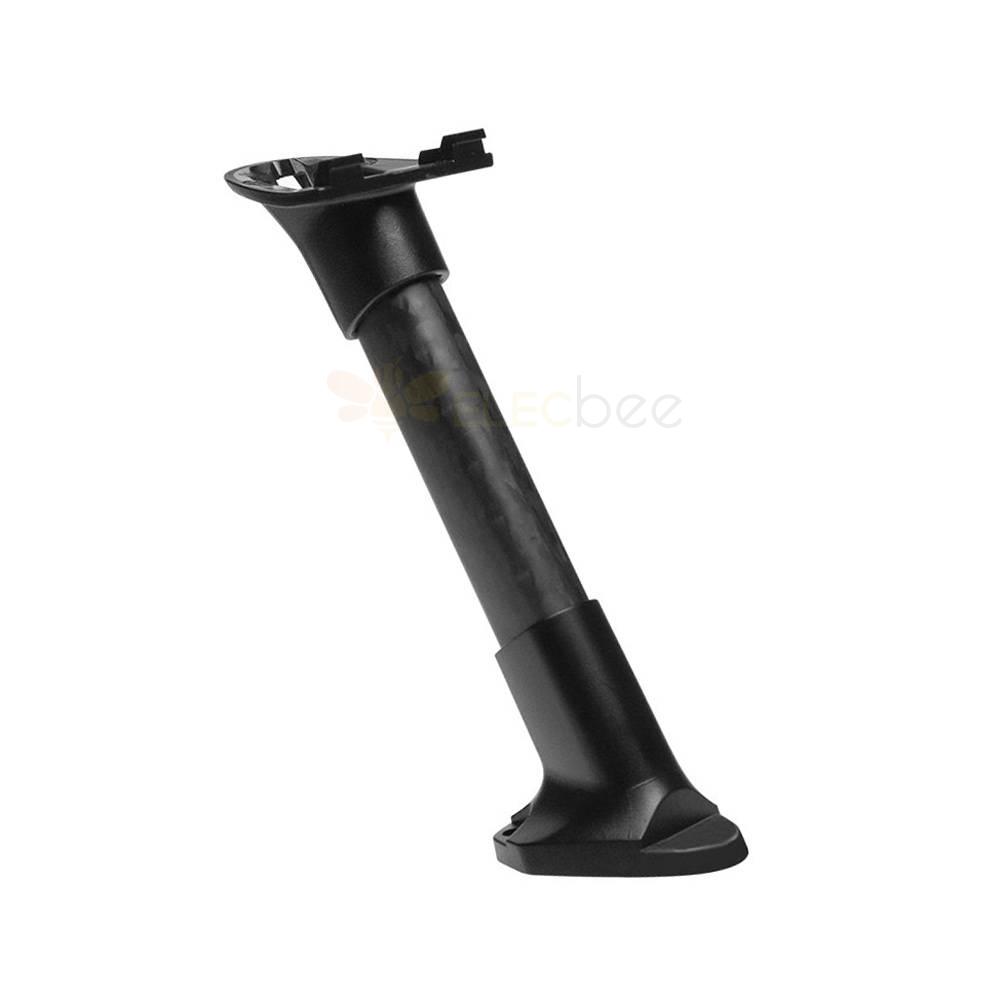

1x Here3 iStand
