Elecbee Holybro M10 standard GPS positioning module suitable for Pixhawk1/2.4.6/2.4.8 flight control PX4

SKU: EB-315-0025-L

Favorites

Key Features

Features

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
High-gain 25*25*4mm antenna
IST8310 Compass
Internal Buzzer, Safety switch
Ultra Bright UI RGB LED

Description

Overview

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

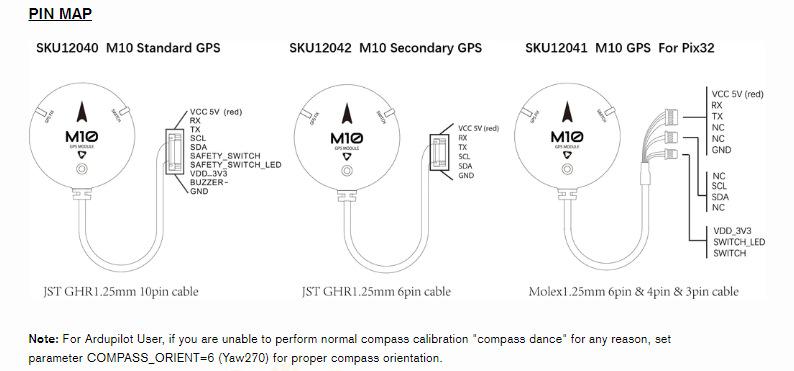

Difference between the three cable options

SKU12040 - Holybro M10 GPS (JST GHR1.25mm 10pin cable):

This option is the most common, it is used on the This connector can be used on Pixhawk Standard Flight Controller 10pin “GPS Module”or "GPS1" input port.

SKU12042 - Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable):

This connector can be used on Pixhawk Standard Flight Controller 6pin“UART & I2C”or "GPS2" input port as secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

SKU12041 - Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):

These connectors are for "Switch", "GPS", and "I2C" input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8

Package Includes:

1x M10 GPS Module
1x Fixed Carbon Fiber GPS mount
