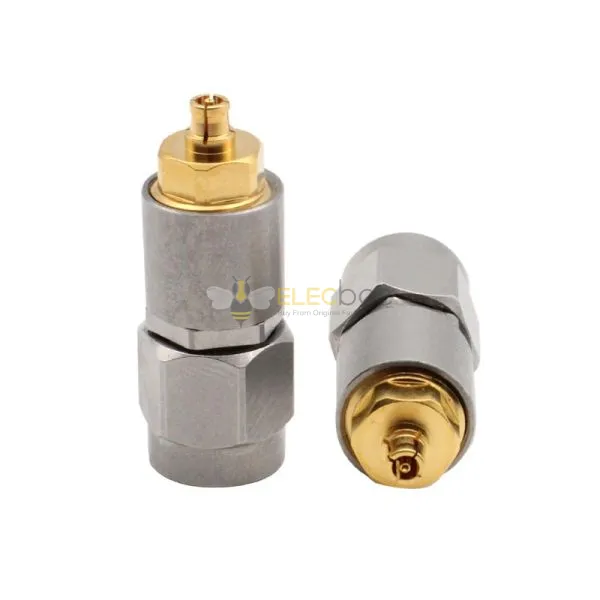

2.92MM Male to SSMP Female Coaxial Adapter 40GHZ High Frequency Connector Stainless Steel GPPO

Description

Electrical:

lmpedance: 50Ω
Frequency: DC-40GHz
VSWR: ≤1.25
Dielectric withstanding voltage: 750v(rms)
Center contar resistance /2.92mm: ≤3MΩ
Outer contart resistance/2.92mm: ≤2MΩ
Center contar resistance /SSMP: ≤6MΩ
Outer contart resistance/SSMP: ≤2MΩ
Insulation resistance: ≥1000MΩ

Environmental &Mechanical:

Temperture range: -55 ~+165°C
Rohs Compliant: RoHS
Durability: 500cycles

Material and Plating:

Inner Contact: beryllium-copper, gold plated
Outer Contact: Stainless Steel,Passivated
Insulators: PEI

Typical Use Cases Include:

• 5G mmWave Networks and Communications Infrastructure

• High-frequency, small cell-based wireless access points

• MIMO ultra-high-speed outdoor backhaul fixed and moving wireless access points

• Test and measurement instrumentation

• High-speed, Mil-Aero, SATCOM, and instrumentation applications
