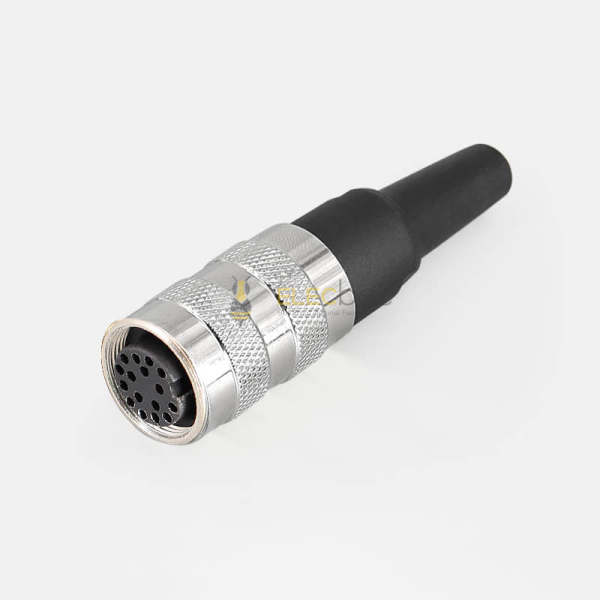

Elecbee 16Pin PG7 straight female Plug IP65 Waterproof Connectors J09 M16 Sensor Connector Non-Shield
SKU: EB-400-3131-H
Favorites
Key Features
Features:
- Connector Series: M16 / J09
- Standard: IEC 61076-2-101
- Coding: A
- Pins: 2 3 4 5 6 7 8 12 14 16 19 Pin
- Gender:Female
- Connector Locking System: Fix the screw
- Ambient Temperature: -25°C~+85°C
- Connector Body: PA66+GF
- Contacts: Phosphorus copper with gold plated
- Screw/Nut: Brass with nickel plated
- Waterproof 0-ring: FKM
- Glue: Black epoxy resin
- Wire Jacket: PVC/PUR
Noted: J09 series connectors. It can be compatible with the Amphenol C091D series, Binder 423 series and 680 series. It is applied to industries such as instrumentation, sensors, automation control and communication.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
16 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
3A
Rated Voltage
60V
Connector Series
M16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
