Elecbee CCM96SK DC 12V/24V/36V/48V PWM Motor Speed Controller | 10A High Power With Protective Housing

SKU: EB0049013

Favorites

Key Features

Features:

Multi-Voltage Compatibility: Designed for 12V/24V/36V/48V systems with a wide DC 10-60V input range—versatile for matching various motor types, from small pumps to industrial equipment.
High Power Performance: Features 10A rated current (20A max) and adjustable power output (120W-480W based on voltage), ensuring reliable operation for both standard and high-demand motors.
Smooth 25kHz PWM Control: Equipped with 25kHz high-frequency PWM technology, delivering stable speed regulation with minimal motor vibration for consistent performance.

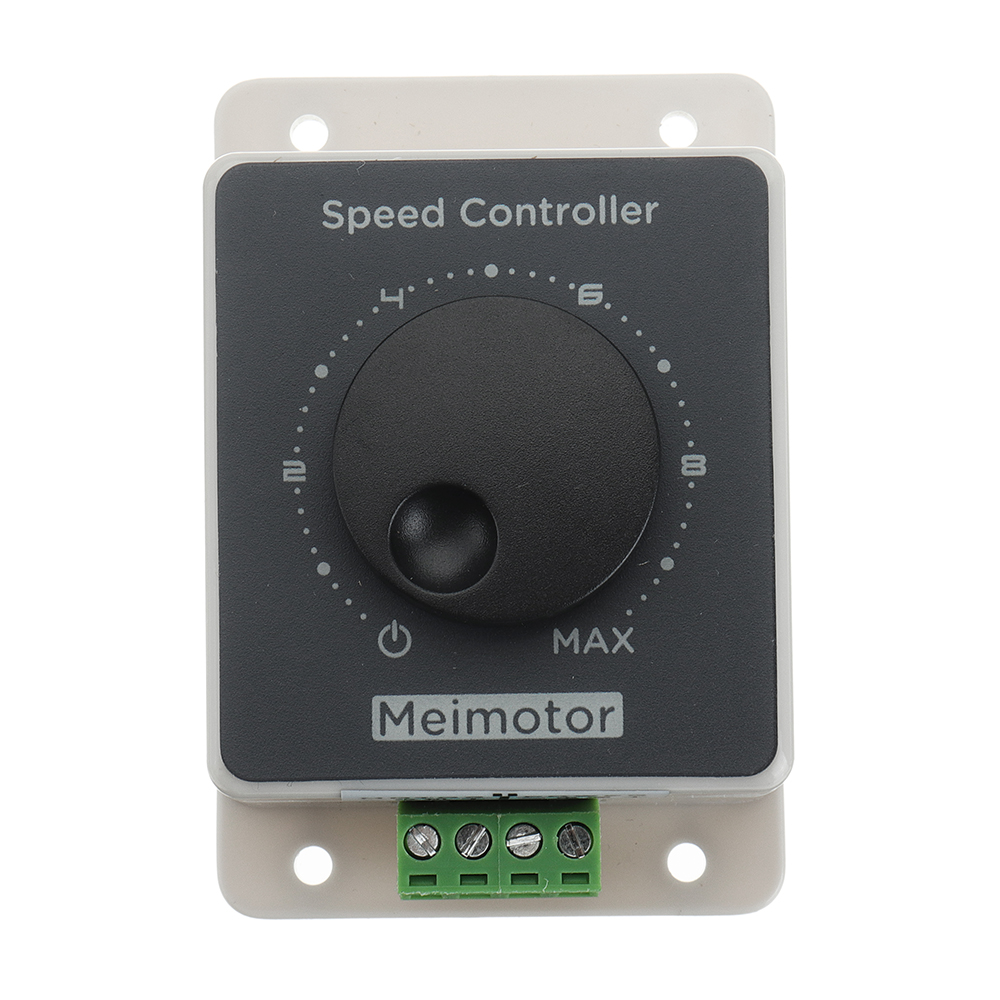

Precise 5%-100% Speed Adjustment: Offers fine-tuned speed control via a B100K potentiometer, allowing users to set motor speed from 5% (low idle) to 100% (full power) as needed.

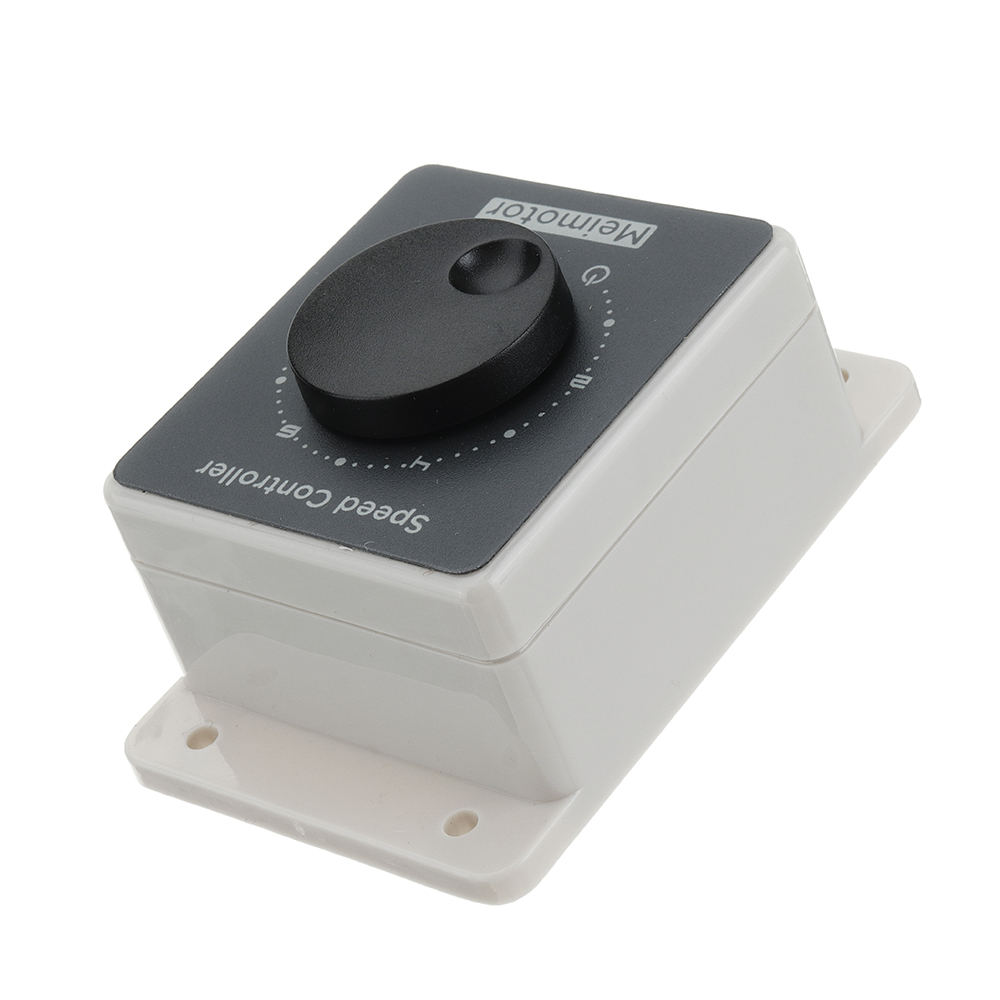

Durable Housing & Easy Installation: Comes with a protective housing (88x59x35mm) for dust and impact resistance, plus an 8mm potentiometer mounting hole—simplifying setup for DIY or professional use.

Specifications

Show Similar Products >

Attribute

Value

Model

CCM96SK

Show Similar Products >

Description

Model: CCM96SK

Potentiometer: Resistance B100K; opening 8mm

Input voltage: DC10-60V

Output voltage: 0-100% of input voltage

Control power: 12V*10A=120W, 24V*10A=240W,...

Rated current: 10A

Maximum current: 20A

Speed range: 5%-100%

Size: 88mm*59mm*35mm

PWM frequency: 25kHz

Precautions and instructions for use:

1. DC motor speed controller input is DC, not directly connected to AC, otherwise it will burn out

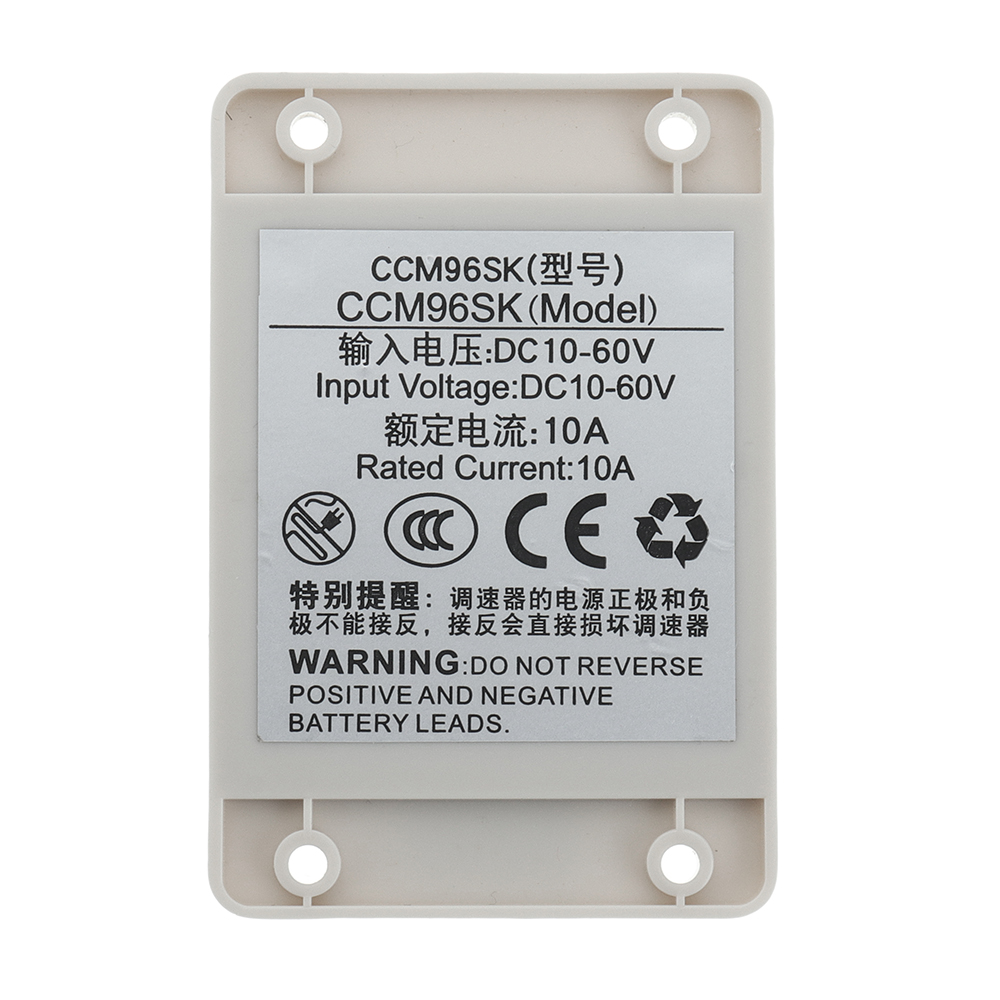

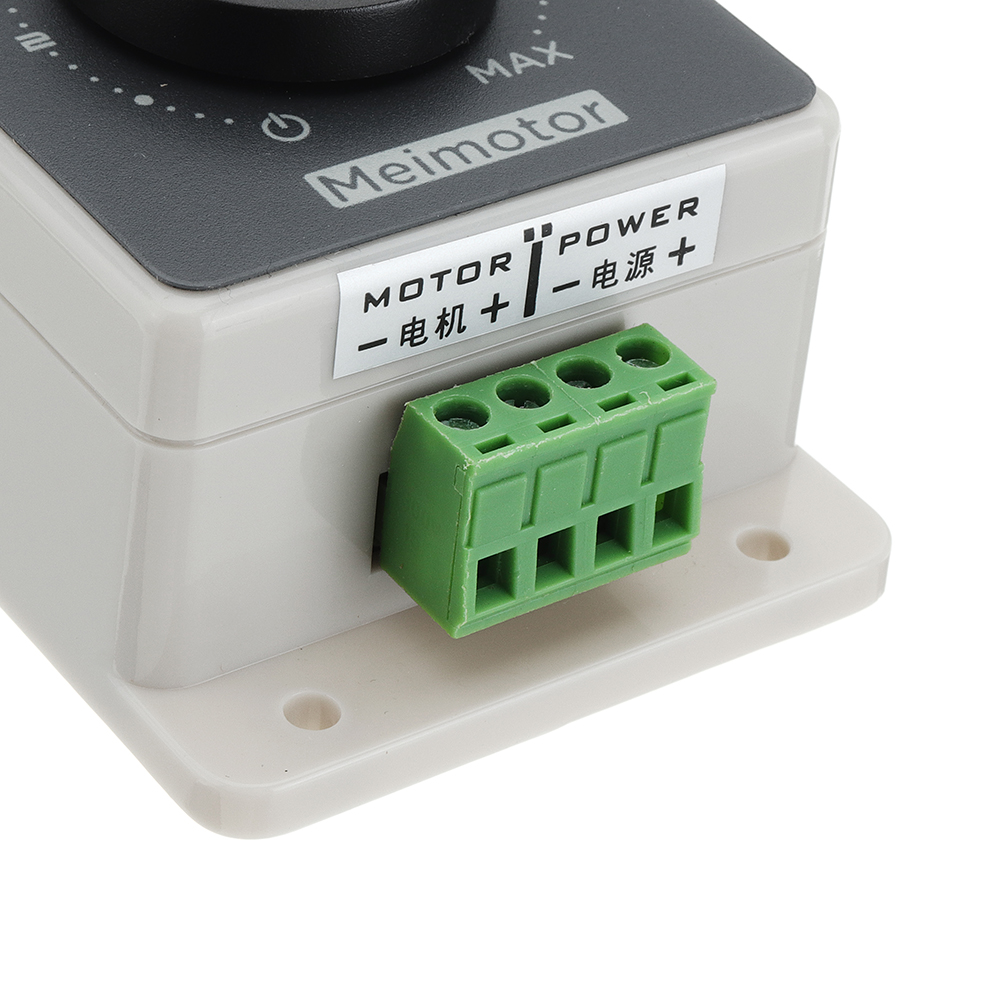

2. The positive and negative DC power supply can not be reversed, otherwise the governor will be damaged.

3. The motor can be divided into positive and negative. When the direction of movement is inconsistent with the expectation,
the direction can be changed by adjusting the line sequence.

4. The potentiometer knob can change the duty cycle of the speed control output, thus changing the motor speed.

DC-12V-24V-36V-48V-PWM-DC-Motor-Speed-Controller-Meimotor-High-Power-10A-With-Housing-1310728

DC-12V-24V-36V-48V-PWM-DC-Motor-Speed-Controller-Meimotor-High-Power-10A-With-Housing-1310728
