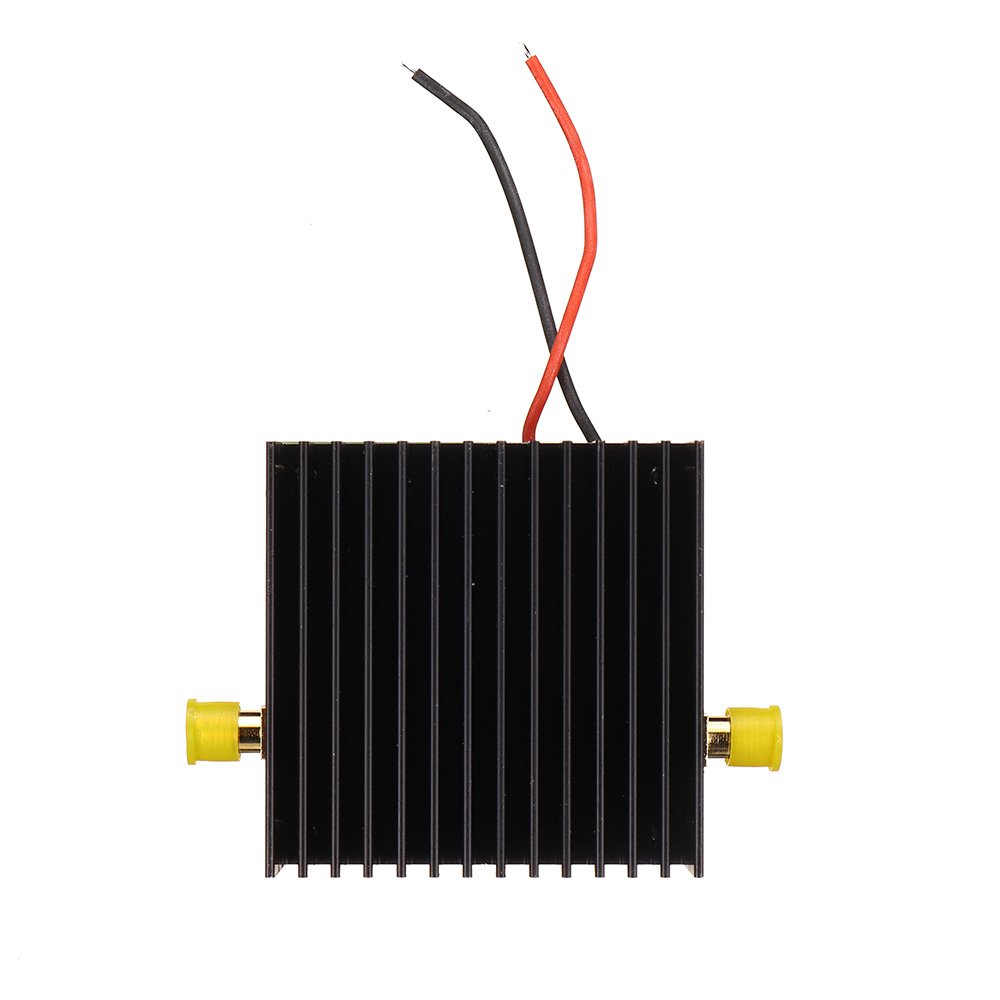

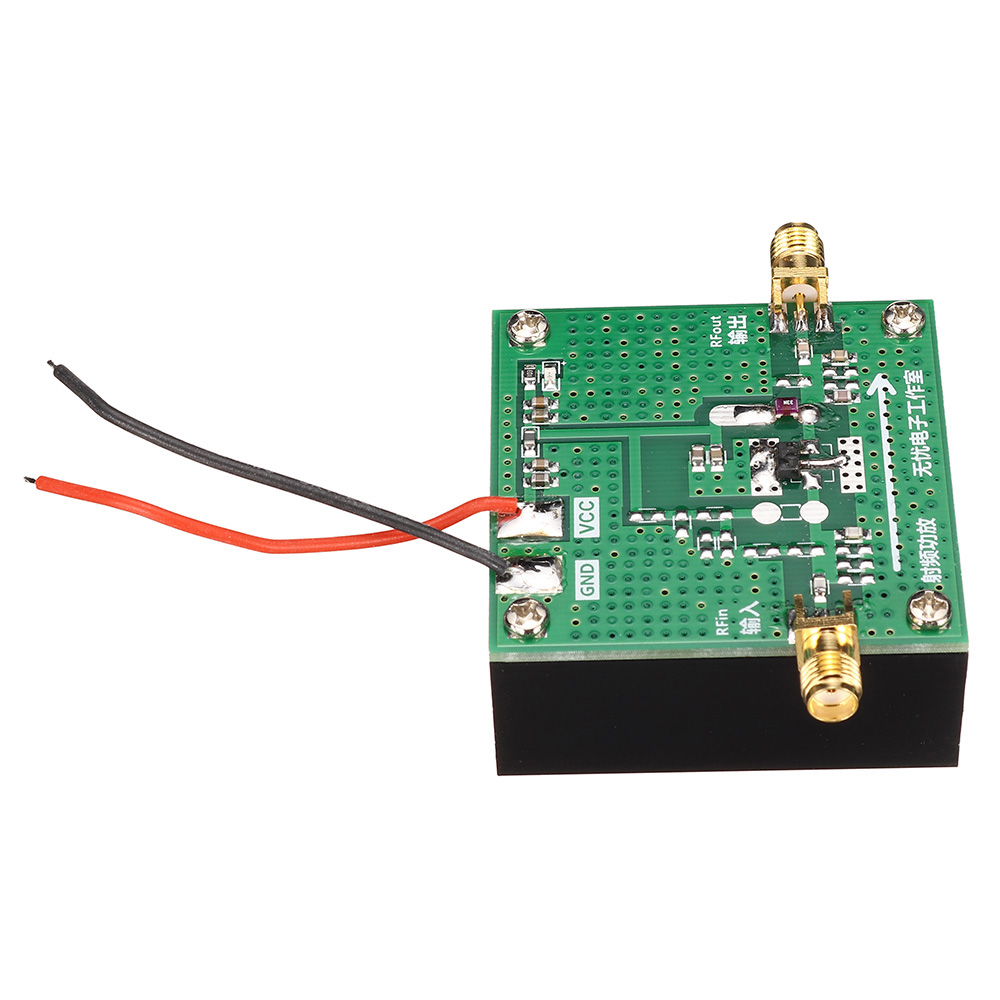

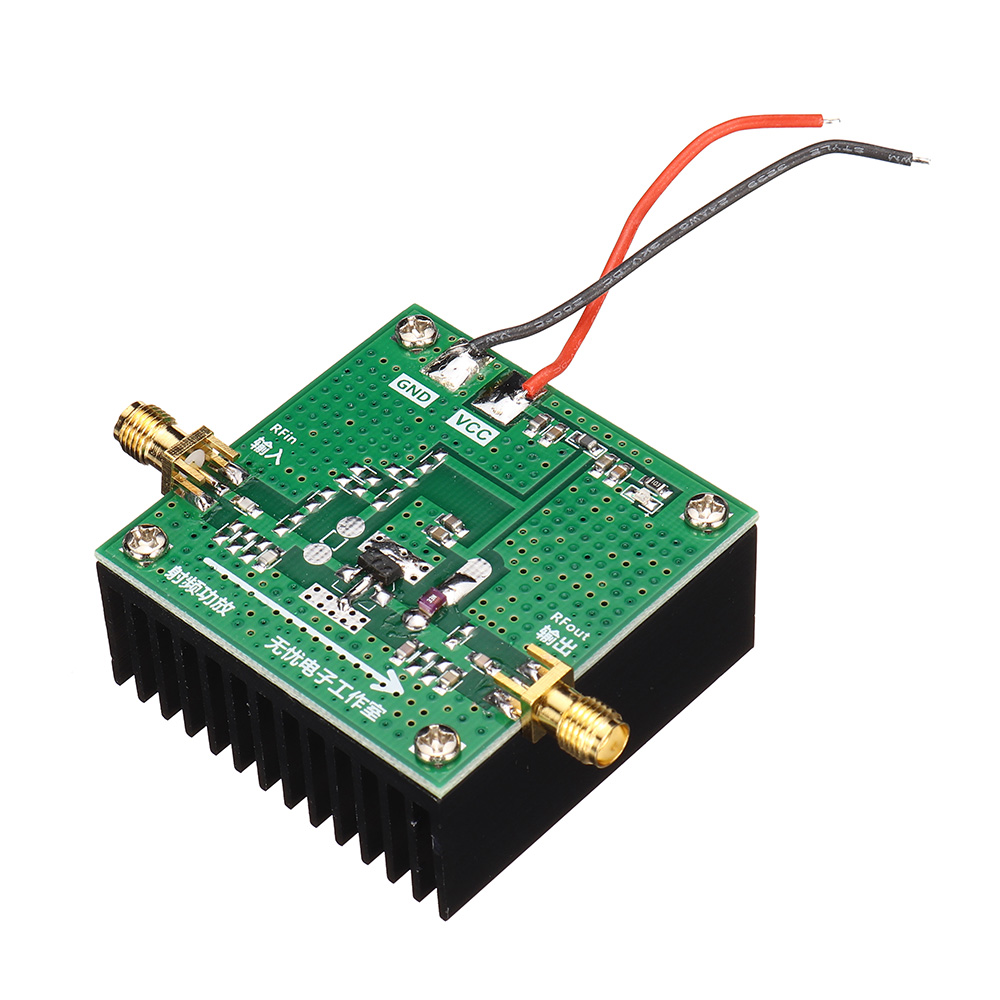

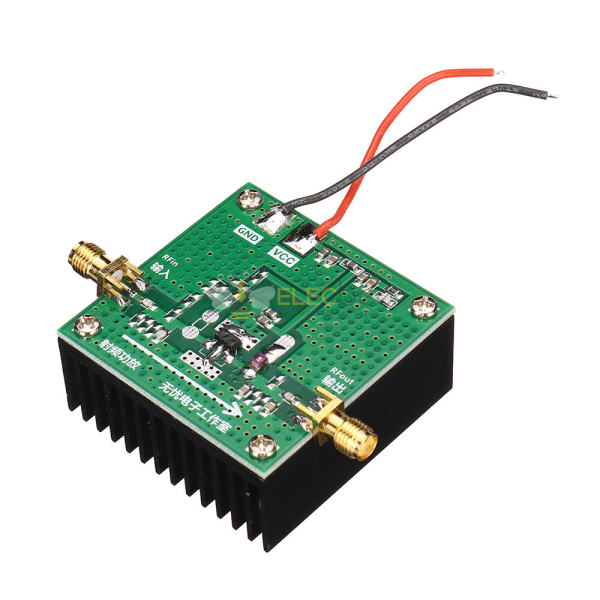

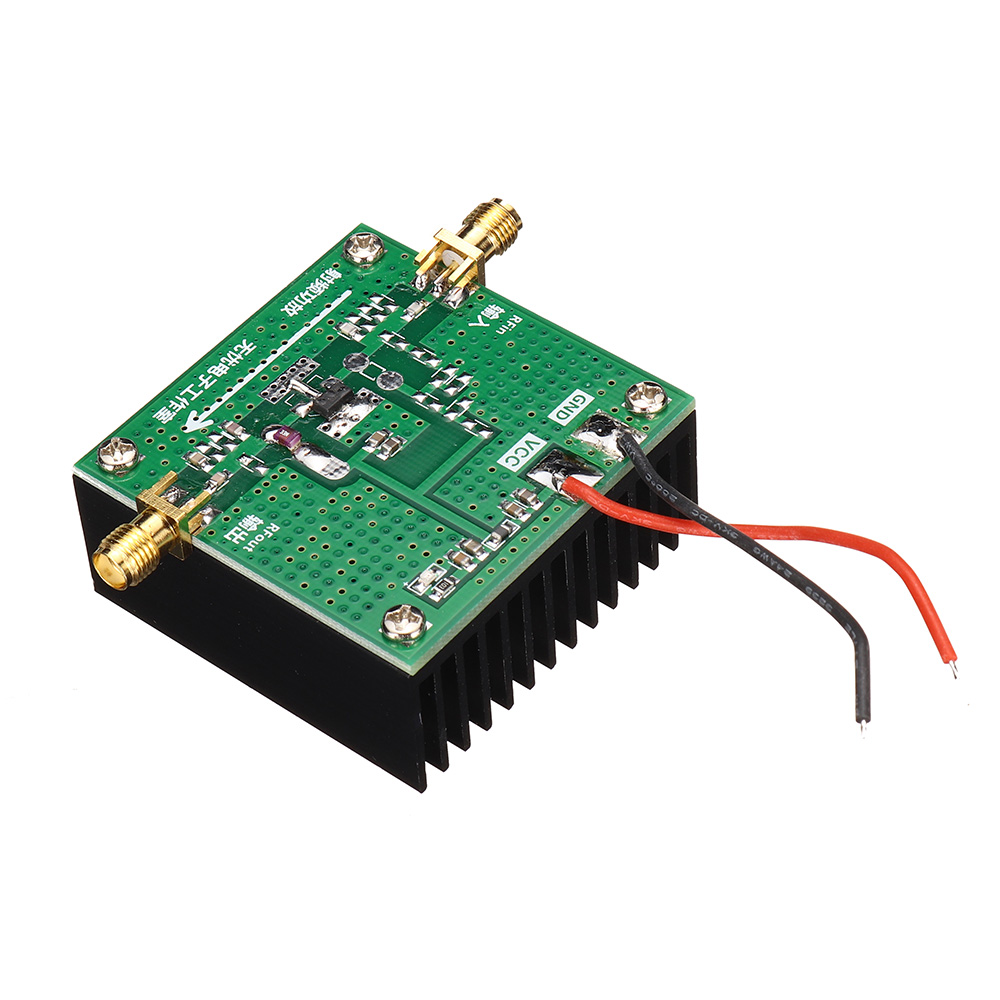

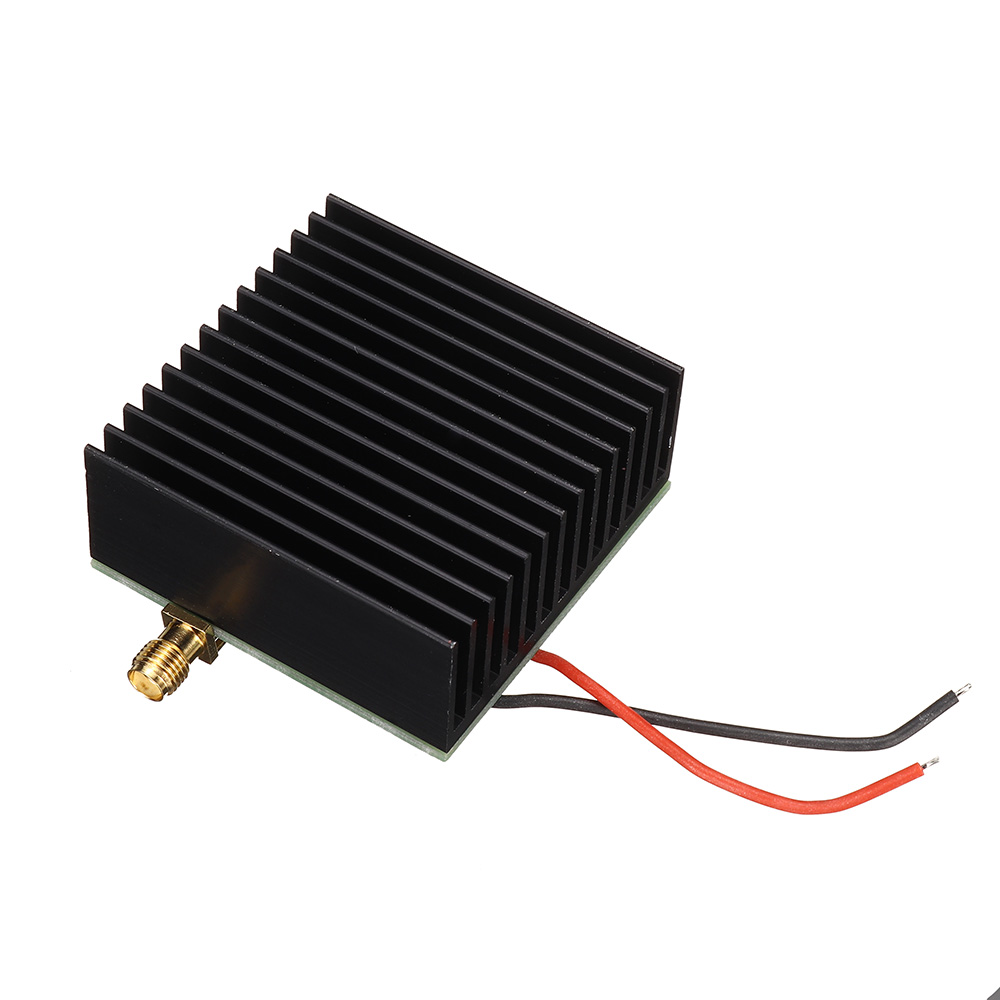

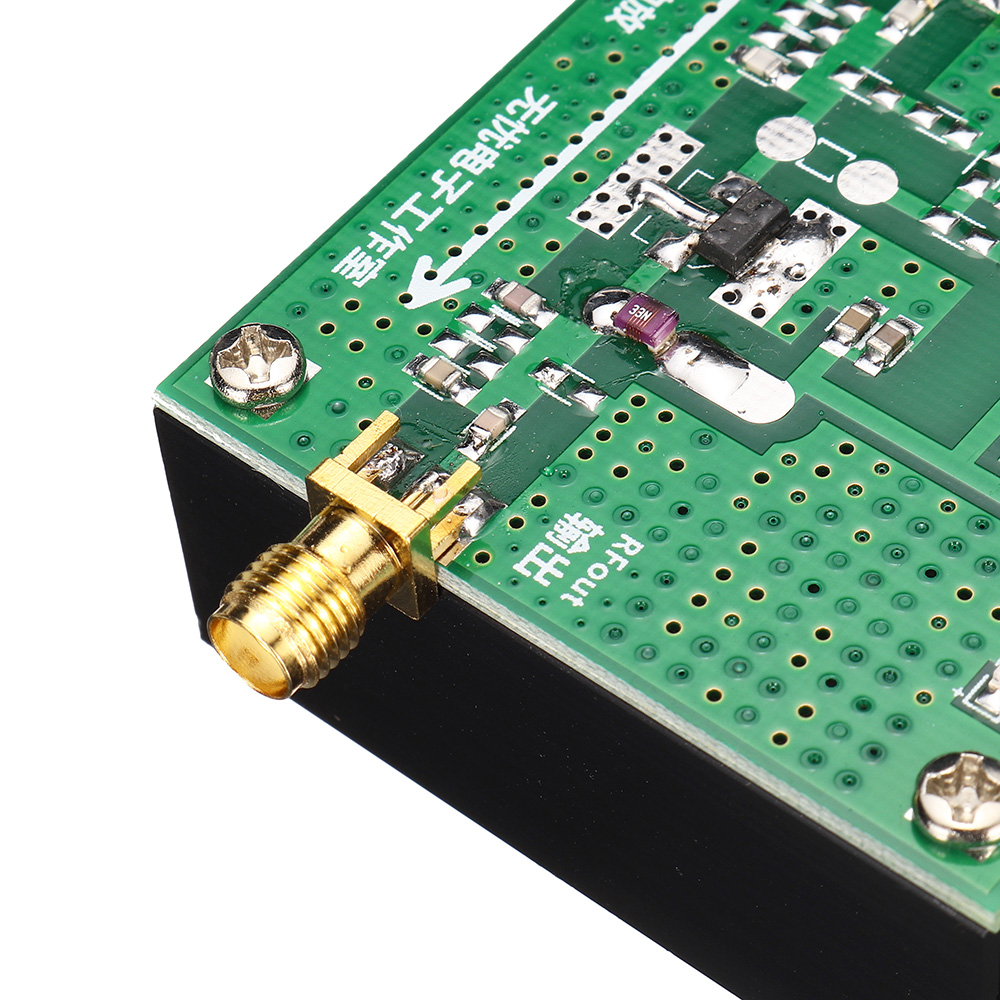

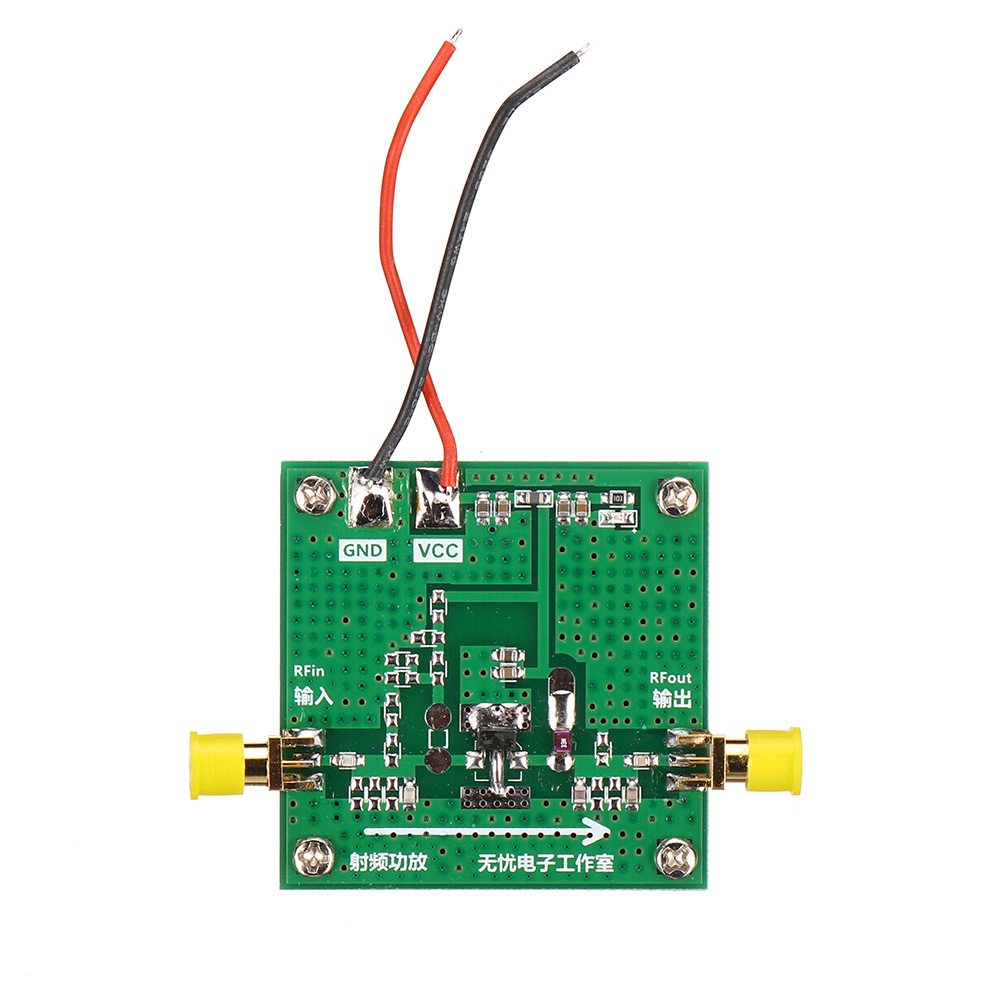

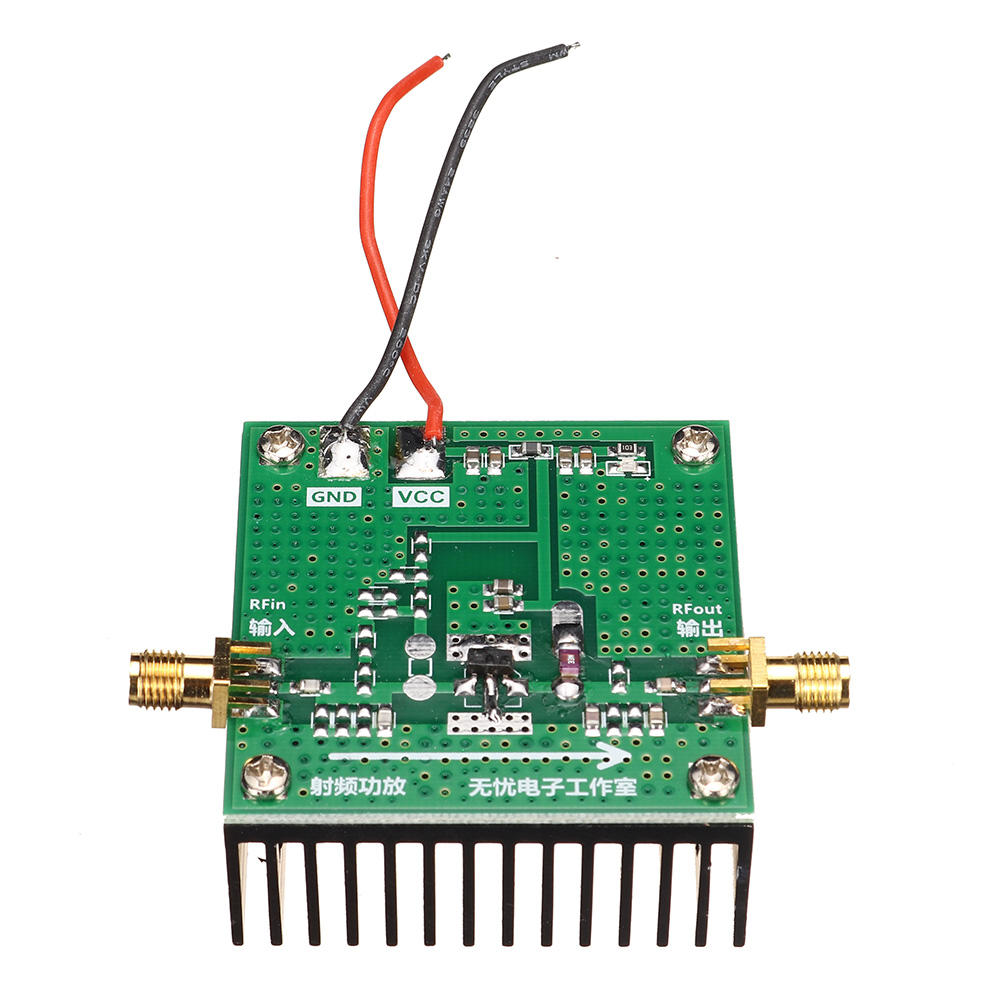

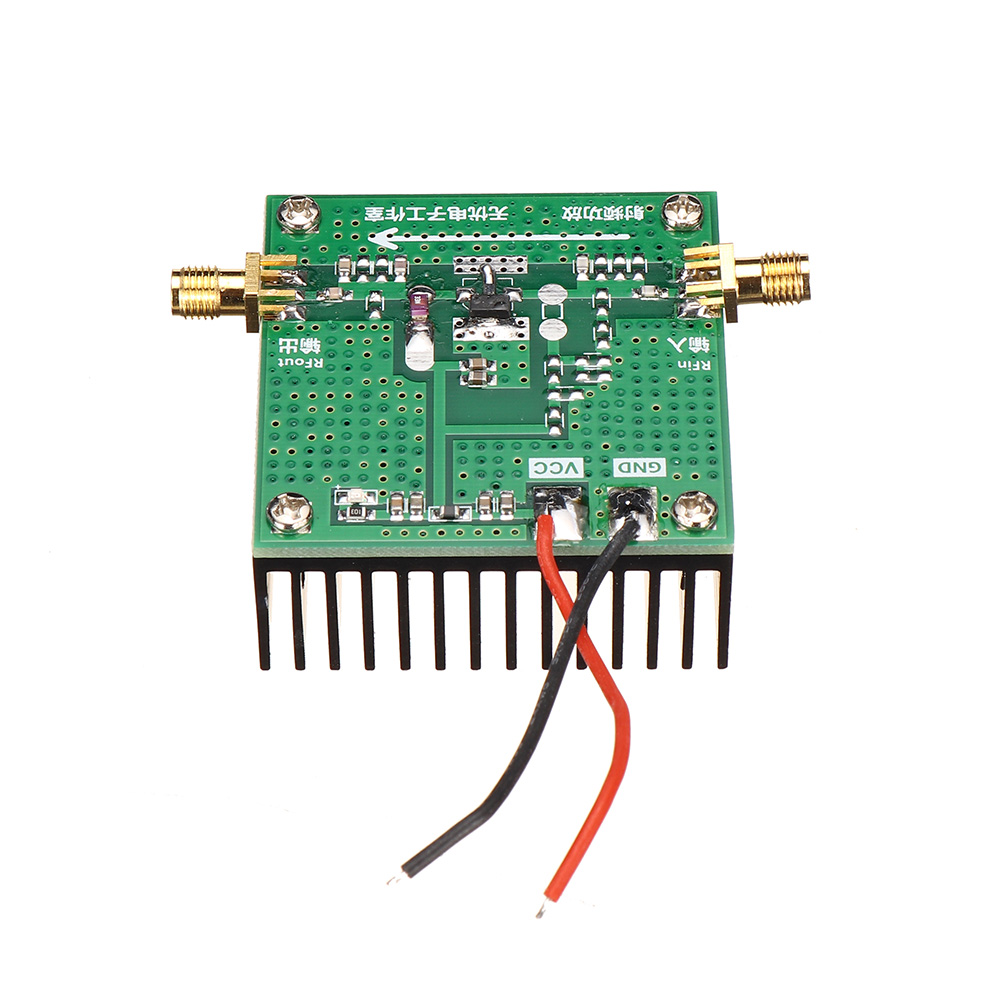

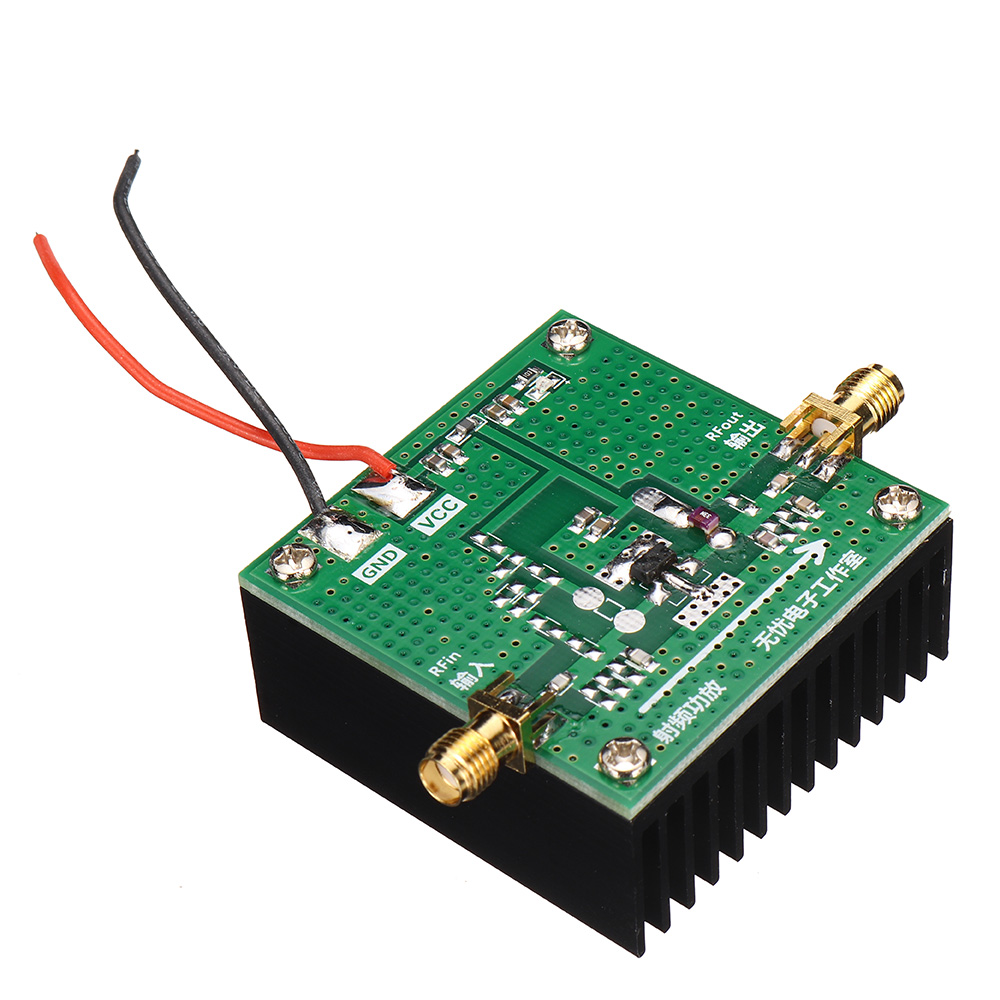

Elecbee 400MHZ-4GHZ 1W Power Amplifier Development Board TQP7M9103 with Heat Sink

SKU: EB0051616

Favorites

Key Features

Nmae:1W High Linearity Amplifier

Chip:TQP7M9103

Frequency: 400-4000MHz

+29.5 dbm Pldb

+45 dbm Output IP3

16.5 db Gain④2140MHz

+5V Single Supply, 235 MA Current

Intemal RF overdrive protection

Intemal DC overvoltage protection

On chip ESD protection

apable of handling 10: 1 VSWR(@ 5vce, 2.14 GHZ

29.5 dbm CW Pout or 20 dbm WCDMA Pout

Product size: 50*50*22MM ( not include SMA seat)

Product weight: 73 g

Application:

Repeaters

BIS Transceivers

BTS High Power Amplifie

CDMA/ WCDMA/LIE

General Purpose Wireless

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Cellular

Model

TQP7M9103

Show Similar Products >

Description

1 x Power Amplifier Development Board

Package includes:

1 x Power Amplifier Development Board

400MHZ-4GHZ-1W-Power-Amplifier-Development-Board-TQP7M9103-with-Heat-Sink-1755427
