Elecbee TDA7498 Stereo 2X100W Dual Channel High Power Digital Computer Power Amplifier with Acrylic Shell

SKU: 1745435

Favorites

Key Features

Amplifier chip: TDA7498

Output power: 100W+100W (Vcc = 36 V, RL = 6Ω, THD: 10%)

Output power: 80W+80W (Vcc = 34 V, RL = 8Ω, THD: 10%)

Wide range single power supply: 15-34VDC(recommended 24V)

Applicable speaker impedance: 8 ohm best(4 ohm or 6 ohm also works)

Four fixed gain settings available: 25.6 dB, 31.6 dB, 35.1 dB and 37.6 dB

Adopts differential input to minimize common-mode noise

Protection: short-circuit protection, over temperature protection

Designed to optimize the circuit layout.Voice pure dynamic feels dye-in-the-wood

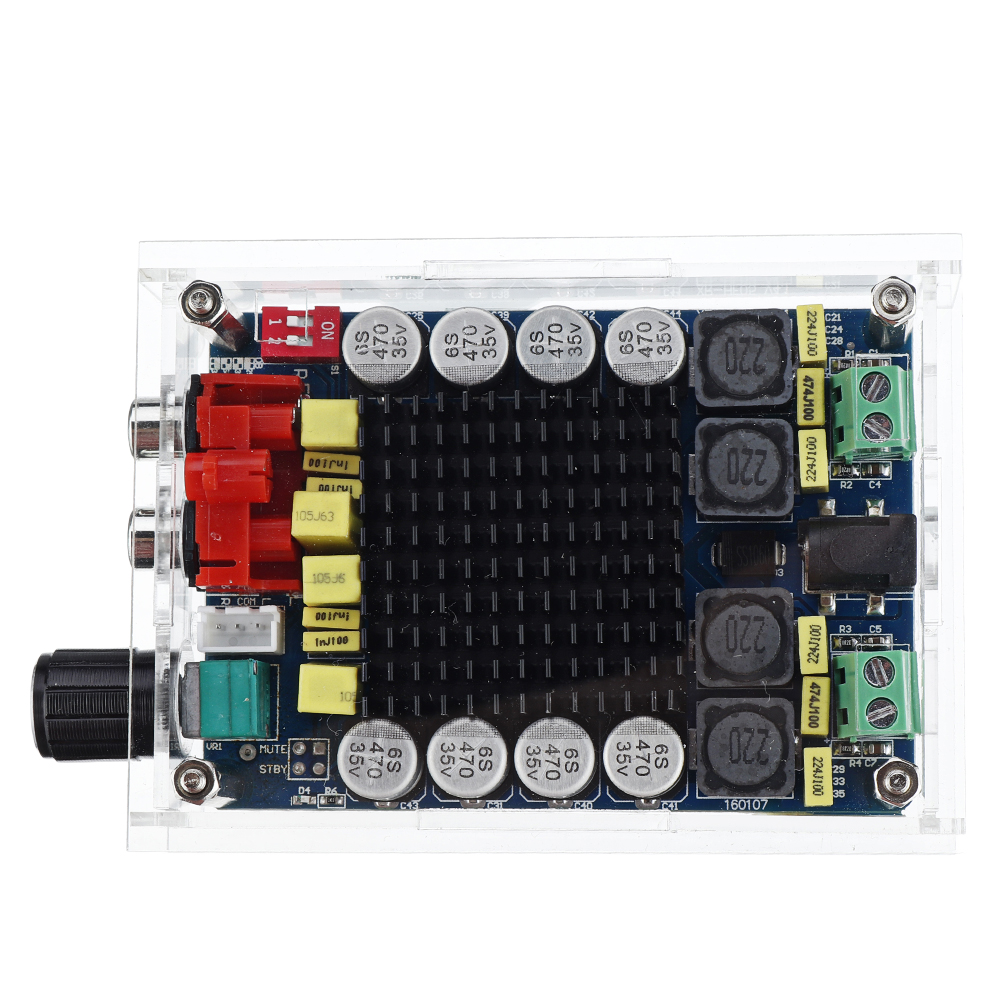

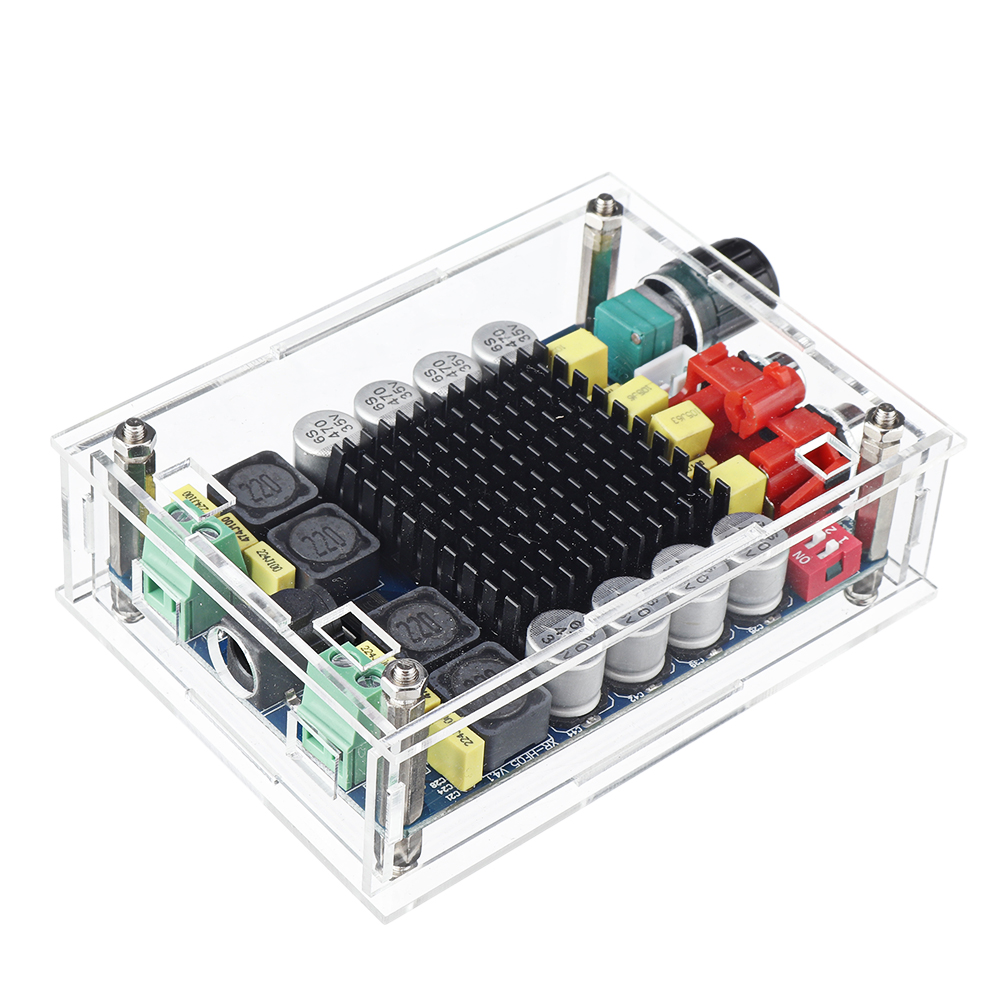

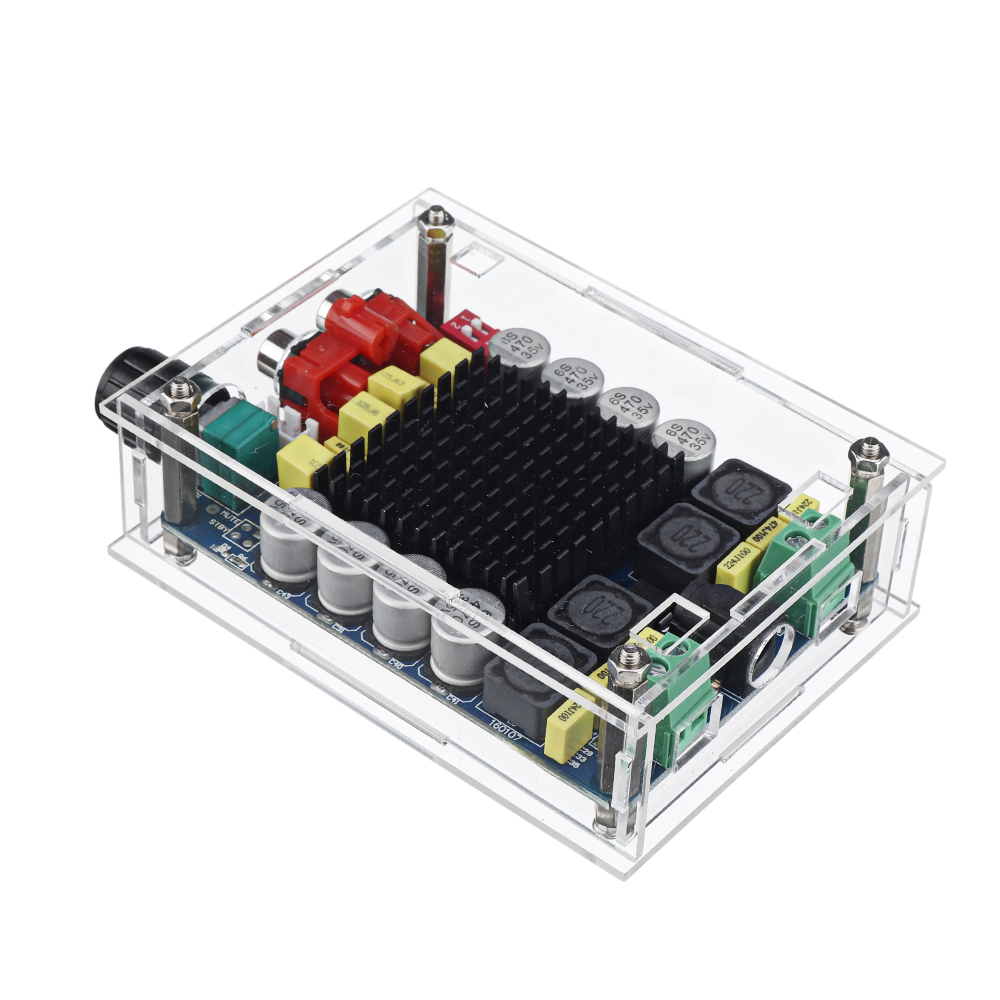

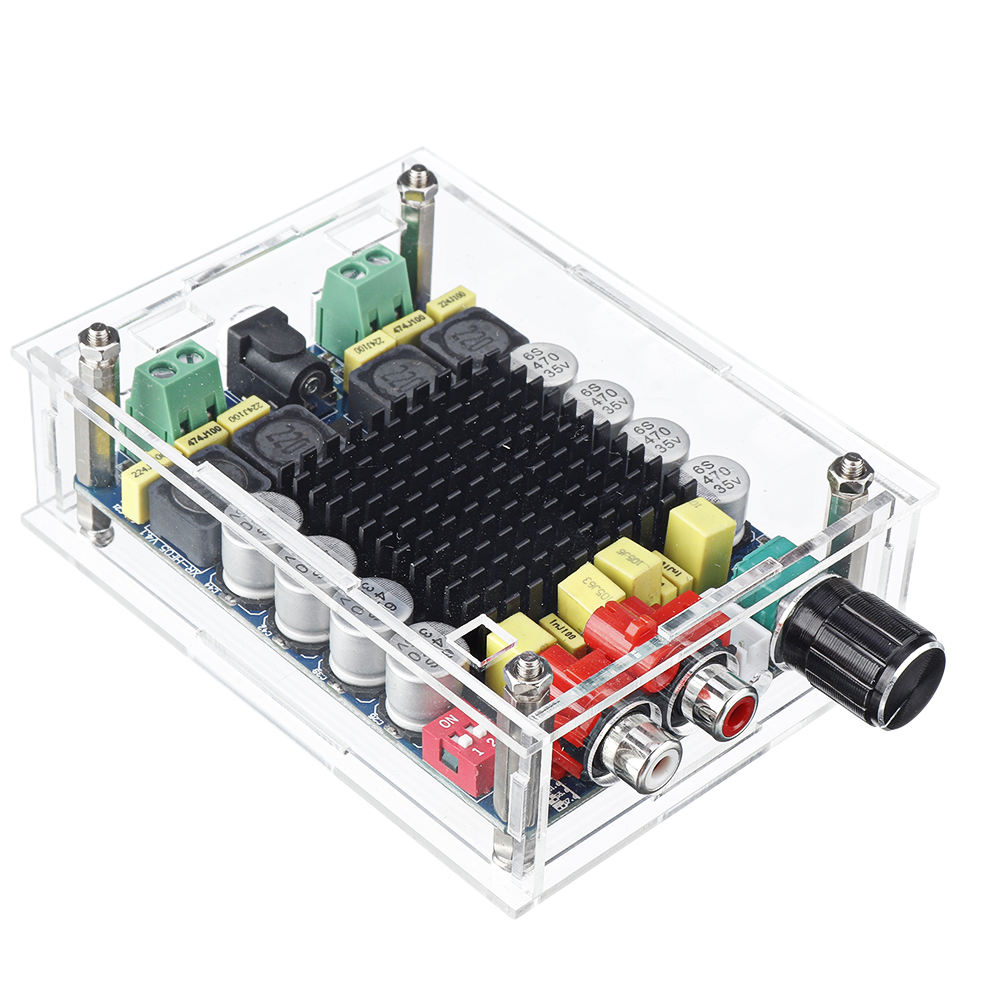

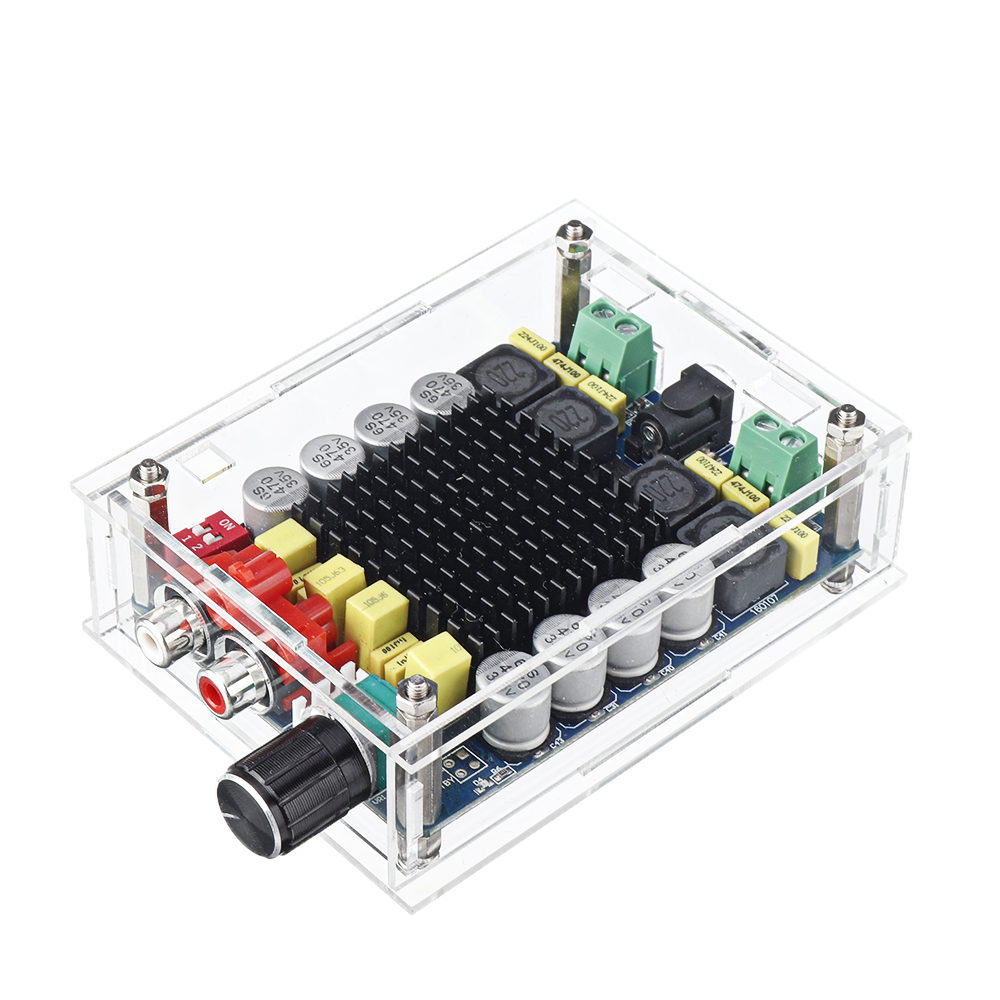

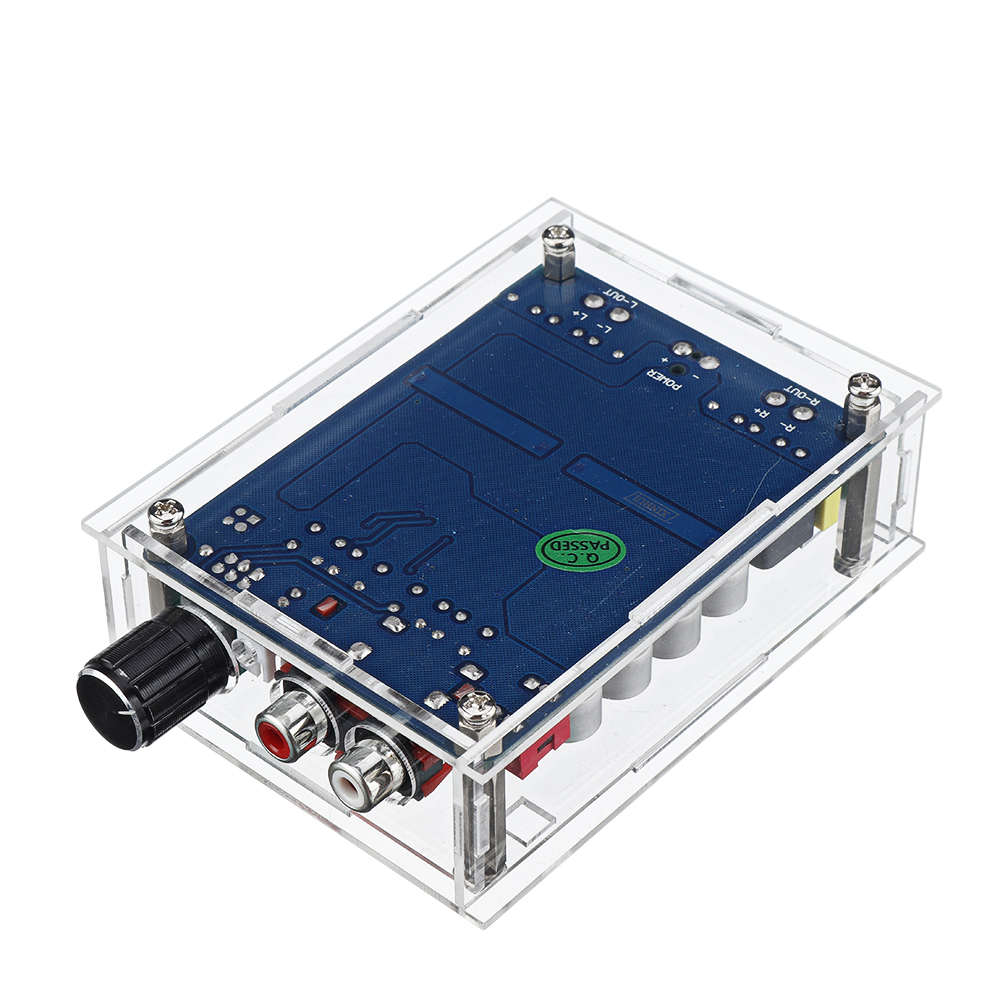

Transparent acrylic shell and two mini heatsinks make the amplifier perfect.xa0

With standby and mute features

High efficiency: 90%

Weight: 215g

Specifications

Show Similar Products >

Attribute

Value

Model

TDA7498

Show Similar Products >

Description

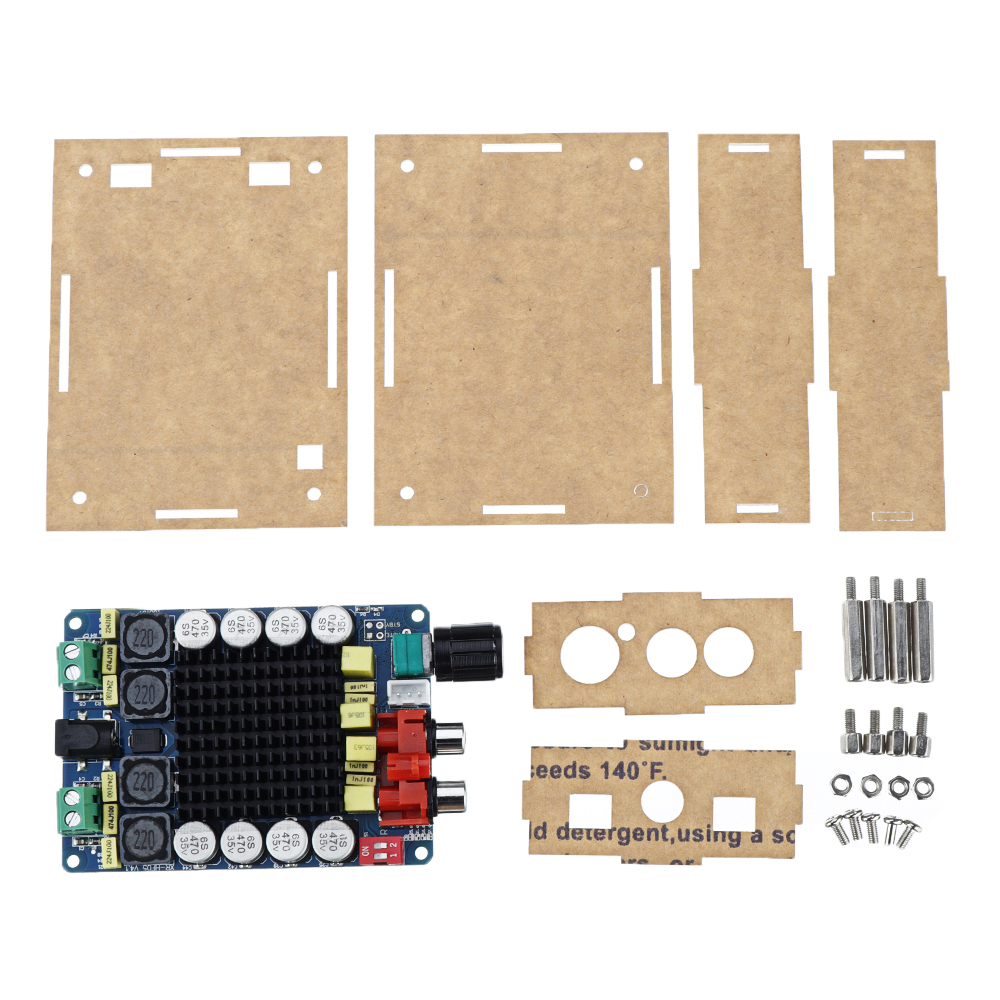

1 x Digital Amplifier Board

1 x Protective Case

1 x Matching screws and Knob

Description:

The TDA7498 is a 100W+100W dual-BTL class-D audio amplifier with single power supply designed for home theater and active speaker applications. It adopts 36-pin PowerSSO packaging with exposed pad up (EPU), more convenient to mount a separate heatsink.

The TDA7498 has three kinds of modes: standby, mute and normal working mode(you can set the mode by shorting the pins shown on pictures).

Standby mode: all circuits closed, at a low power state;

Mute mode: all input signals connects ground, the duty cycle of forward/backward PWM output signal is 50%;

Normal working mode: the amplifier works normally.

Package includes:

1 x Digital Amplifier Board

1 x Protective Case

1 x Matching screws and Knob
