Elecbee RS-485 M5Atomic TTL RS485 Converter SP3485EE RS485 Multipoint Communication Industrial Control Node

SKU: EB0050900

Favorites

Key Features

Product Features:

- Compatible ATOM Matrix/ATOM Lite

- SP3485EE

- Built-in DC/DC

- Multipoint communication

Datasheet

EB0050900

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi + Bluetooth

Model

M5ATOMIC

USB Support

USB-C

Show Similar Products >

Description

Description:

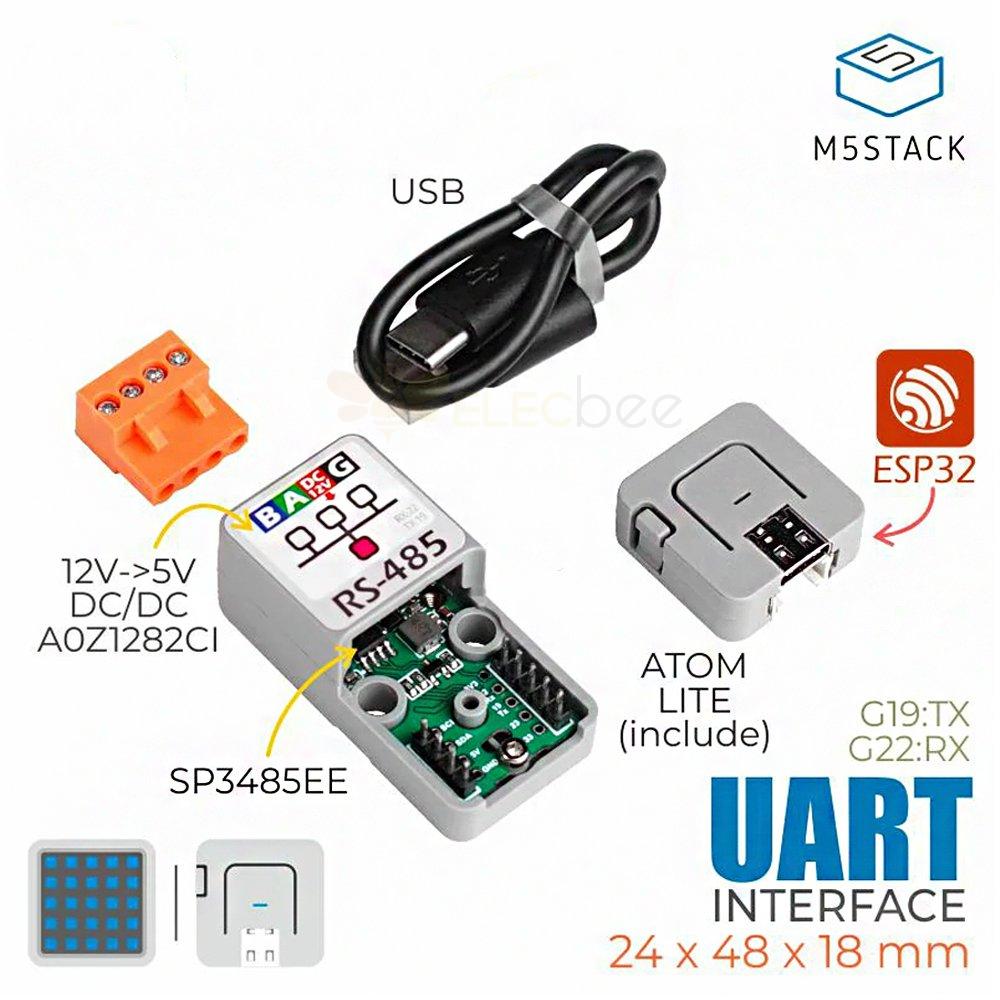

ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It's function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports amulti-point system and is widely used in industry. When the applications equipment needs to communicate and be controlled through RS485, ATOM RS-485 is an excellent choice. A DC/DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.

Package includes：

- 1x ATOM RS-485

- 1x ATOM Lite

- 1x 18cm TYPE-C Cable

Applications:

- RS485 Multipoint communication

- Industrial control node

- RS485 to WiFi

EasyLoader: Click to download: contact us

EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial: contact us, M5StickC/V/T/ATOM series can be used without driver)

Related Link:

SP485EEN

AOZ1282CI

Pin Map:

ATOM	GPIO22	GPIO19	5V	GND
ATOM RS-485	RX	TX	5V	GND

Example:

1. Arduin IDE

Click here to download Arduin example: contact us

2. UIFlow

Click here to download UIFlow example: contact us
