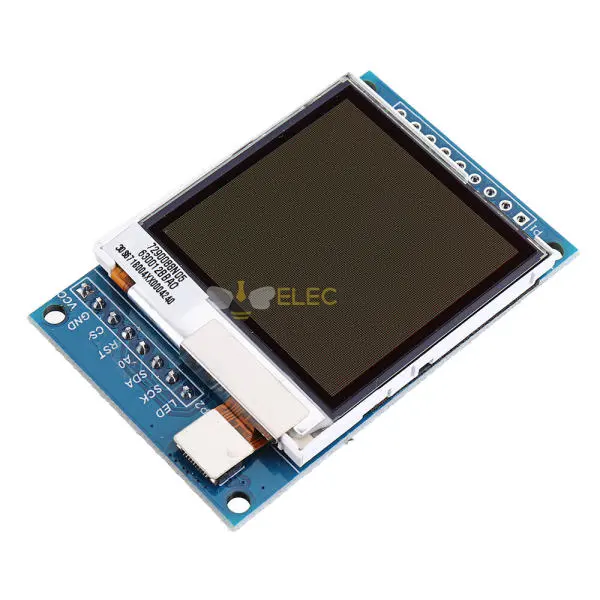

Elecbee 5Pcs 1.6 Inch Transflective TFT LCD Display Module 130X130 Sunlight Visible SPI Serial Port 3.3V 5V for Arduino
SKU: EB0050517
Favorites
Key Features
Show More
Description
Features:
• 1.6-inch color screen, support 65K color display, display rich colors
• Semi-transparent LCD, superior performance, clearly visible under strong light
• SPI serial bus, only a few IO can light up the display
• Onboard 3. 3V/5V power conversion chip, compatible with 3. 3V and 5V voltage levels
• Operating temperature range is industrial grade (-20-70 ° C)
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support
• Support backlight control
Specificatoins:
Driver: SSD1283A
Resolution: 130*130
Working voltage: 3.3V/5V
Viewing angle: >60°
Display size: 28.86*28.86mm
Module size: 35.4*53.82*1.6mm
Module interface: 4-wire SPI
Power consumption: about 100mA when fully lit, about 10mA when fully off
Pin:
Number | Pin | Meaning |
1 | GND | LCD power supply (ground) |
2 | VCC | LCD power supply (positive)3.3V/5V |
3 | CS | LCD chip select signal |
4 | RESET | LCD reset signal |
5 | A0/DC | LCD register / data selection signal |
6 | SDA | SPI bus data signal |
7 | SCK | SPI bus clock signal |
8 | LED | Backlight control signal (high level lighting, if you do not need control, please connect 3.3V) |
Package Included:
5 x 1.6 Inch Transflective TFT LCD Display Module 130X130
