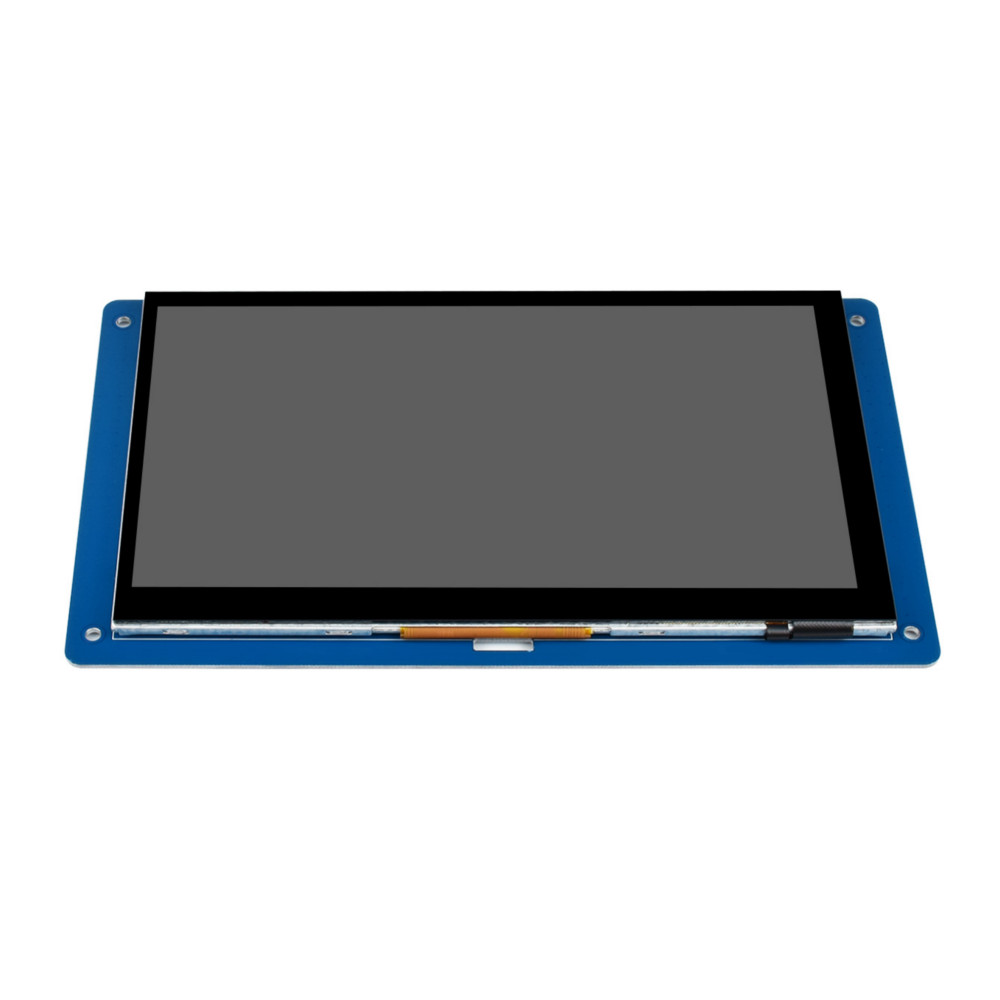

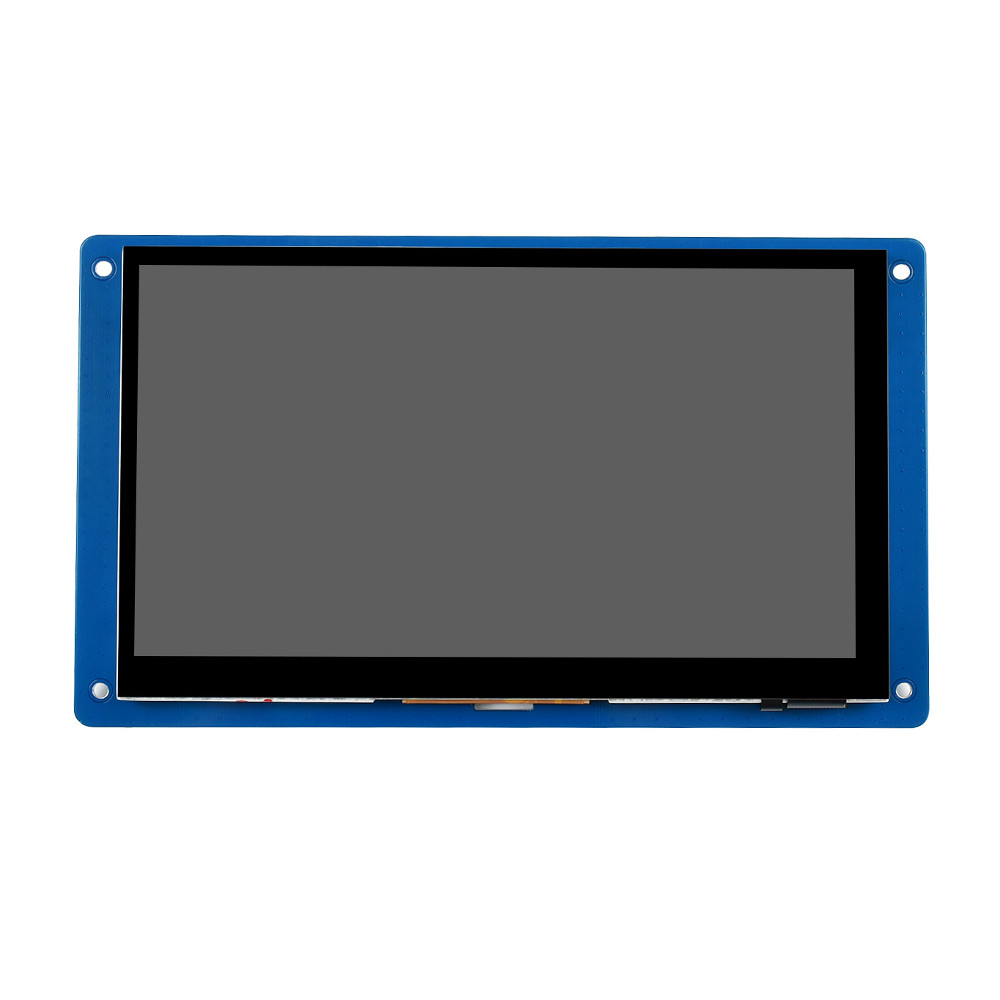

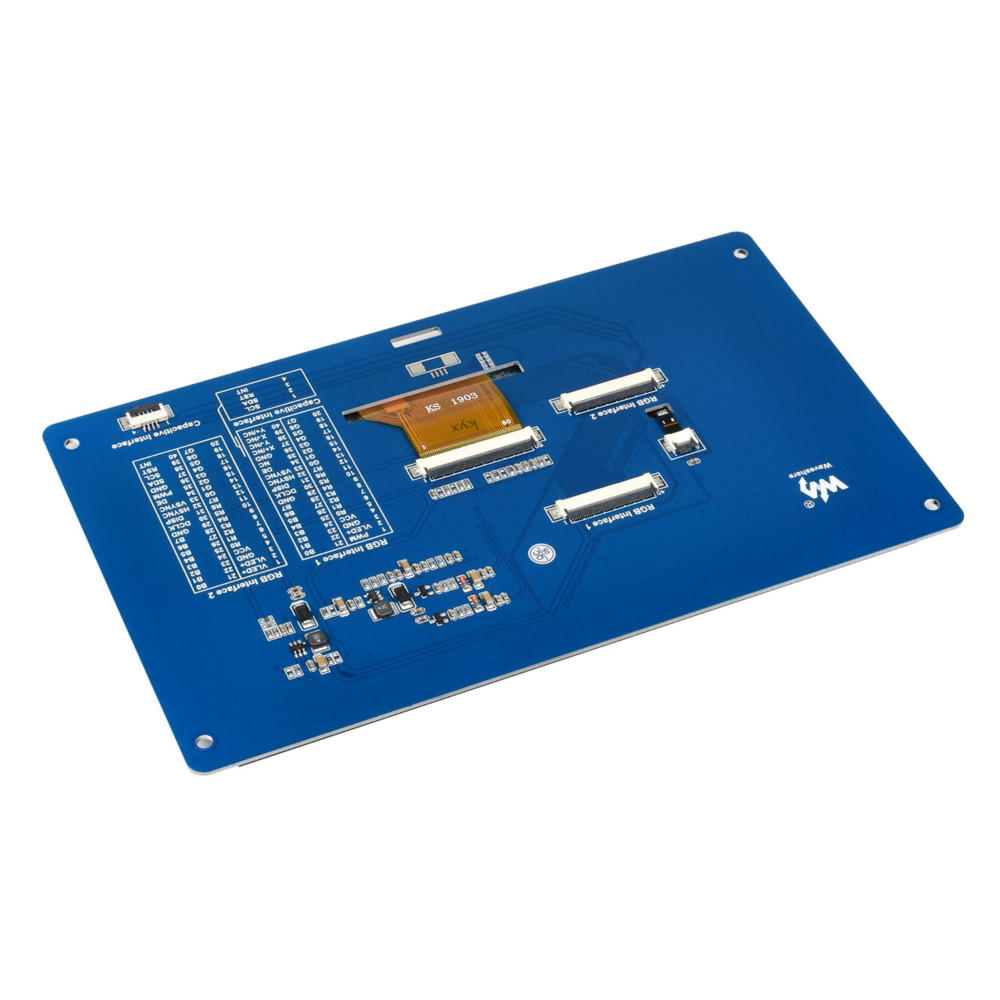

Elecbee GT911 7-inch Capacitive Touch Screen LCD Display TFT LCD Module RGB Interface
SKU: EB0050421
Favorites
Key Features
Feature:
| Types | TFT |
| Interface | LCD: 24-bit parallel, touch panel: 4-wire capacitive screen |
| Touch control chip | GT911 |
| Backlight | led |
| Viewing area (mm) | 154.08 (W) × 85.92 (H) |
| Dot pitch (mm) | 0.0642 (W) × 0.1790 (H) |
| Size ratio | 8:05 |
| Resolution | 800 X 480 (Pixel) |
| Power consumption | TBD |
| Backlight current | TBD |
| Working temperature (℃) | TBD |

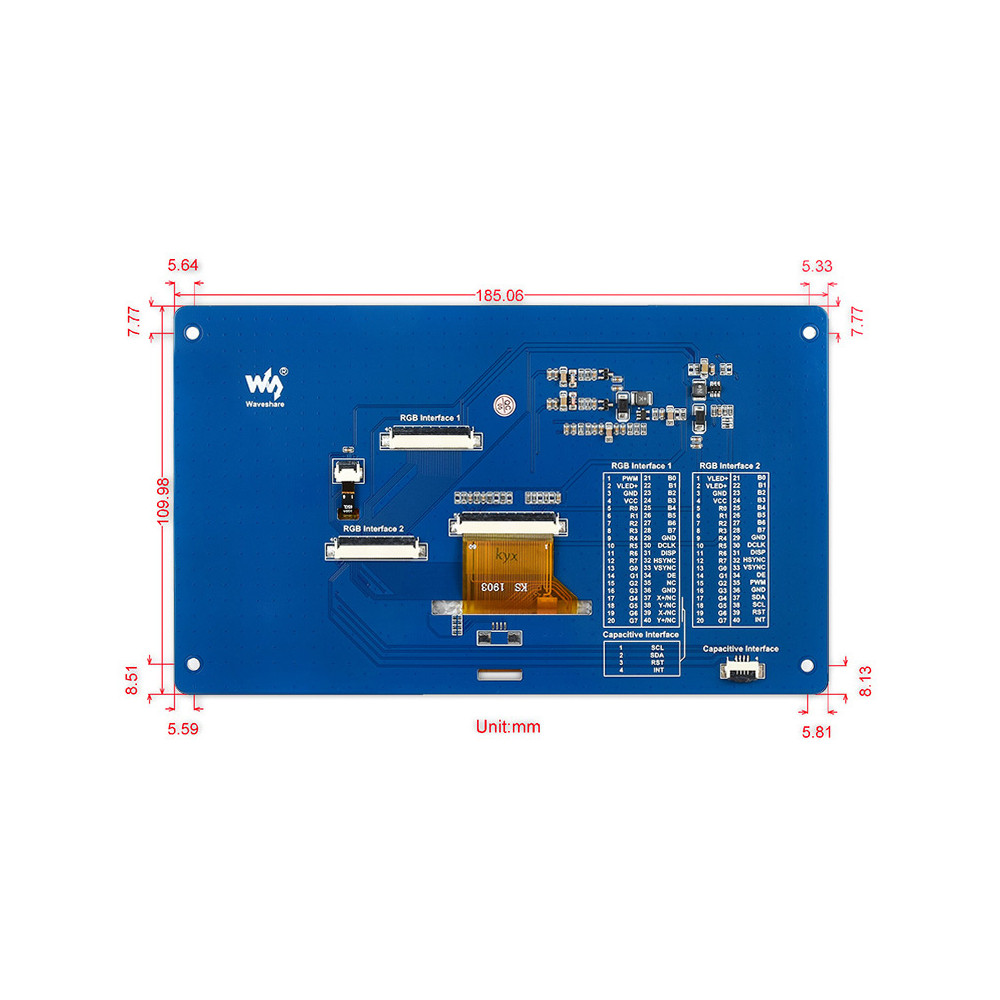

Capacitive touch screen interface definition:
| PIN | Mark | Description | Type | Features |
| 1 | CAP_INT | Interrupt pin | Input | External touch interrupt control input pin |
| 2 | CAP_WAKE | WAKEUP pin | Input | Used to wake up external TP controller |
| 3 | I2C_SDA | I2C data pin | Output/input | I2C data transmission pin, read and write data |
| 4 | I2C_SCL | I2C clock pin | Input | I2C clock control pin, control clock |

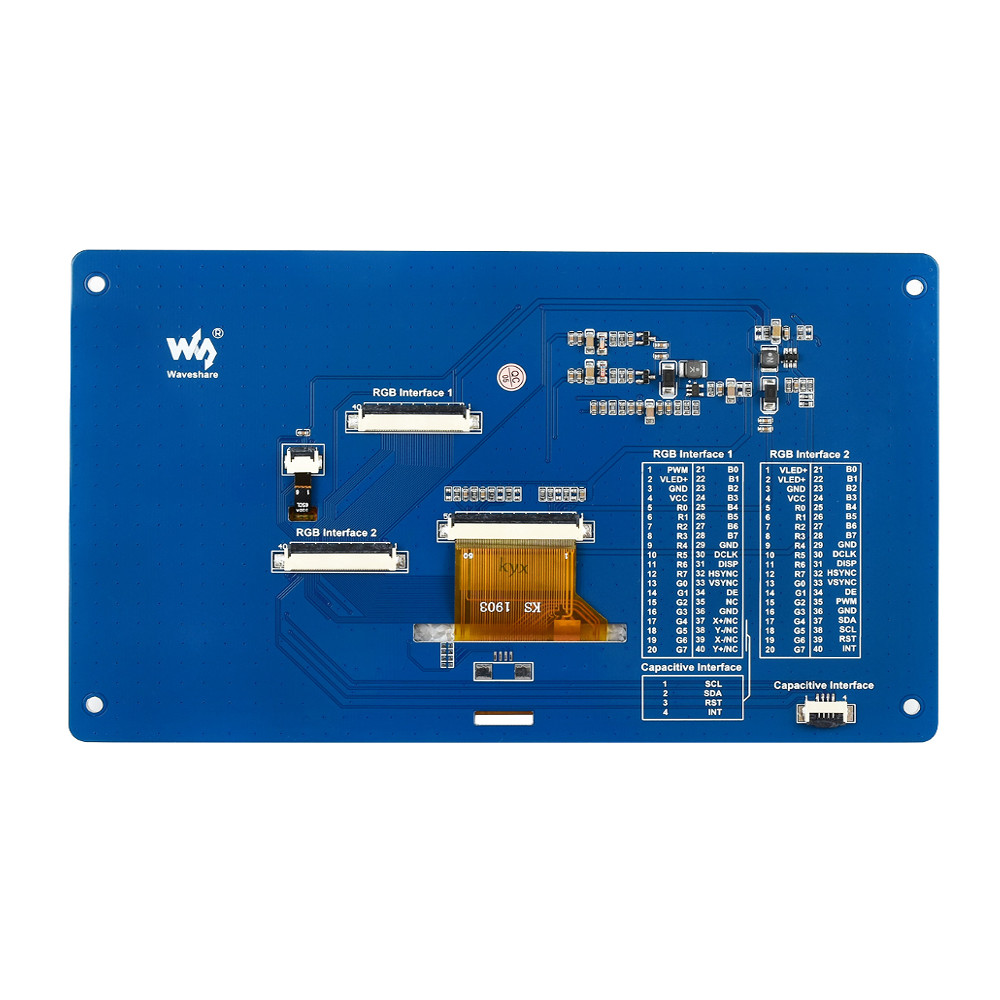

RGB interface 1 definition:
| PIN | Mark | Description | Type | Features |
| 1 | PWM | Backlight negative | Power type | Backlight negative, generally connected to GND or PWM control |
| 2 | VLED+ | Backlight positive | Power type | Backlight positive, generally connected to 5V |
| 3 | GND | Power ground | Power type | Grounded |
| 4 | VCC | Power is positive | Power type | Power supply, connect to 3.3V |
| 5 | R0 | Data line | Input | Red palette data cable |
| 6 | R1 | |||
| 7 | R2 | |||
| 8 | R3 | |||
| 9 | R4 | |||
| 10 | R5 | |||
| 11 | R6 | |||
| 12 | R7 | |||
| 13 | G0 | Data line | Input | Green palette data cable |
| 14 | G1 | |||
| 15 | G2 | |||
| 16 | G3 | |||
| 17 | G4 | |||
| 18 | G5 | |||
| 19 | G6 | |||
| 20 | G7 | |||
| 21 | B0 | Data line | Input | Blue palette data cable |
| 22 | B1 | |||
| 23 | B2 | |||
| 24 | B3 | |||
| 25 | B4 | |||
| 26 | B5 | |||
| 27 | B6 | |||
| 28 | B7 | |||
| 29 | GND | Power ground | Power type | GND |
| 30 | DCLK | LCD clock | Input | LCD clock signal source |
| 31 | DISP | Backlight control enable | Input | Control enable backlight control, generally connected to VCC |
| 32 | HSYNC | Line synchronization | Input | Horizontal sync signal input |
| 33 | VSYNC | Frame synchronization | Input | Vertical sync signal input |
| 34 | DE | Control mode selection | Input | DE=0: SYNC mode |
| DE=1: DE mode | ||||
| 35 | NC | |||
| 36 | GND | Power ground | Power type | GND |
| 37 | X+/NC | - | - | Capacitive screen here NC |
| 38 | Y-/NC | - | - | |
| 39 | X-/NC | - | - | |
| 40 | Y+/NC | - | - |
RGB interface 2 definition:
| PIN | Mark | Description | Types | Features |
| 1 | VLED+ | Power is positive | Power type | Backlight power supply, generally connected to 5V |
| 2 | VLED+ | |||
| 3 | GND | Power ground | GND | |
| 4 | VCC | Power is positive | Generally connected to 3.3V | |
| 5 | R0 | Data line | Input | Red palette data cable |
| 6 | R1 | |||
| 7 | R2 | |||
| 8 | R3 | |||
| 9 | R4 | |||
| 10 | R5 | |||
| 11 | R6 | |||
| 12 | R7 | |||
| 13 | G0 | Green palette data cable | ||
| 14 | G1 | |||
| 15 | G2 | |||
| 16 | G3 | |||
| 17 | G4 | |||
| 18 | G5 | |||
| 19 | G6 | |||
| 20 | G7 | |||
| 21 | B0 | Blue palette data cable | ||
| 22 | B1 | |||
| 23 | B2 | |||
| 24 | B3 | |||
| 25 | B4 | |||
| 26 | B5 | |||
| 27 | B6 | |||
| 28 | B7 | |||
| 29 | GND | Power ground | Power type | GND |
| 30 | DCLK | LCD clock | Input | LCD clock signal source |
| 31 | DISP | Backlight control enable | Control enable backlight control | |
| 32 | HSYNC | Line synchronization | Horizontal sync signal input | |
| 33 | VSYNC | Frame synchronization | Vertical sync signal input | |
| 34 | DE | Control mode selection | DE=0: SYNC mode | |
| DE=1: DE mode | ||||
| 35 | PWM | Backlight brightness adjustment | PWM adjustment backlight signal line | |
| 36 | GND | Power ground | Power type | GND |
| 37 | SDA | I2C data pin | Output/input | I2C data transmission pin, read and write data |
| 38 | SCL | I2C clock pin | Input | I2C clock control pin, control clock |
| 39 | RST | Reset pin | Used to reset the TP controller | |
| 40 | INT | Interrupt pin | Output | External touch interrupt control pin |
Show More
Description
Package includes:
1 x 7-inch Capacitive Touch Screen
