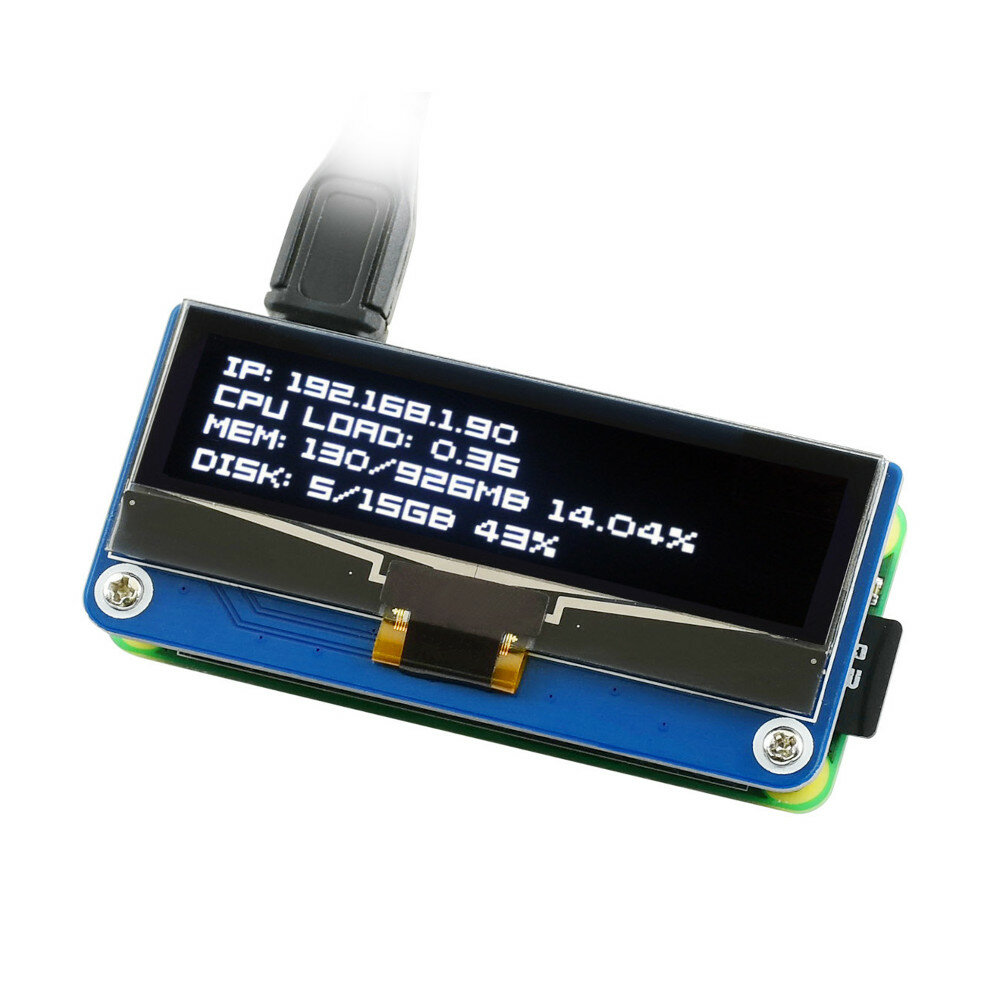

Elecbee 2.23 inch OLED Display Expansion Board Module Support SPI/I2C Jetson Nano
SKU: EB0050328
Favorites
Key Features
Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards, Jetson Nano
Support SPI or I2C two interfaces, the default is SPI, can be switched to I2C through resistance
Leads out the control interface for easy access to main control boards such as Arduino/STM32
Specification:
Driver chip: SSD1305
Support interface: I2C, SPI, OLED
Resolution: 128*32
Display size: 2.23inch
Pixel size: 0.41 x 0.39 (mm)
Display color: white
Working voltage: 3.3V
Working temperature: -40~70℃
| PIN | Raspberry Pi Interface (BCM) | Description |
| VCC | 3V3/5V | Power is positive |
| GND | GND | Power ground |
| DIN | MOSI | SPI data input |
| CLK | SCLK | SPI clock signal input |
| CS | CE0 | Chip select, active low |
| DC | P24 | Data/command, low level is command, high level is data |
| RST | P25 | Reset, active low |
