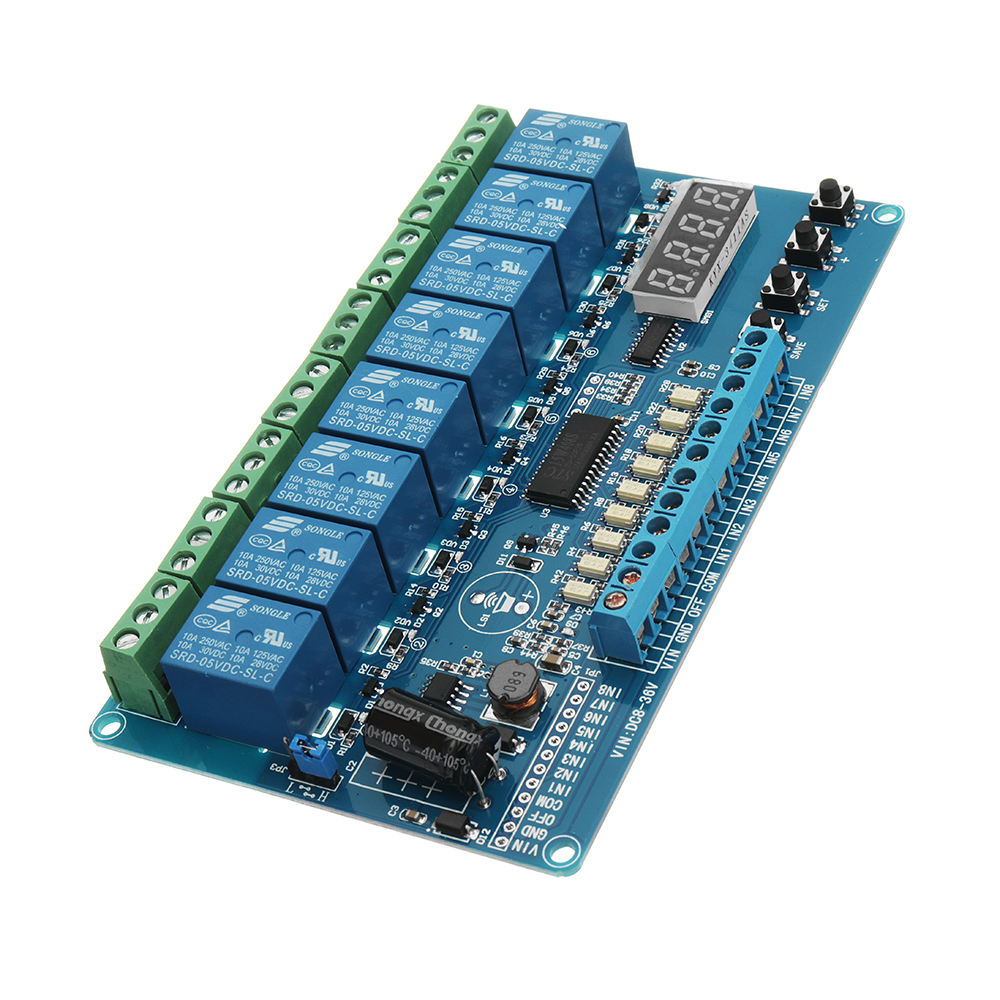

Elecbee DC 8V To 36V Industrial Grade 8 Channel Multi-function Relay Module Wide Voltage Supply Module
SKU: EB0046983
Favorites
Key Features
Technical Parameters:
Working voltage: DC 8V-36V (limit working voltage DC 6V-45V)
rated power:
Static power < 0.1W (when the relay is not engaged)
Dynamic power < 3.0W (when the relay is fully engaged)
Working temperature: -20°C-60°C (limit operating temperature range -30°C-70°C)
load capacity:

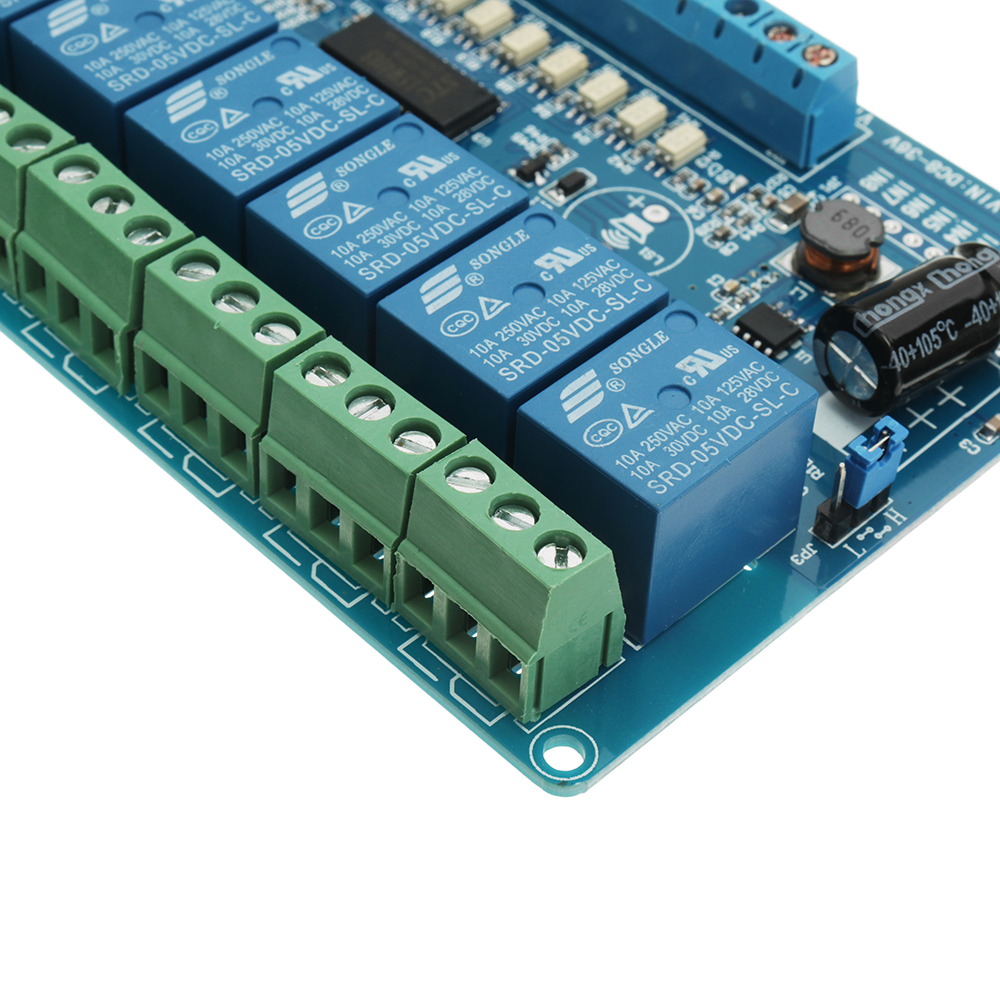

Relay normally open port load capacity: DC 0-30V / 10A, AC 0-250V / 10A
Relay normally closed port load capacity: DC 0-28V / 10A, AC 0-125V / 10A

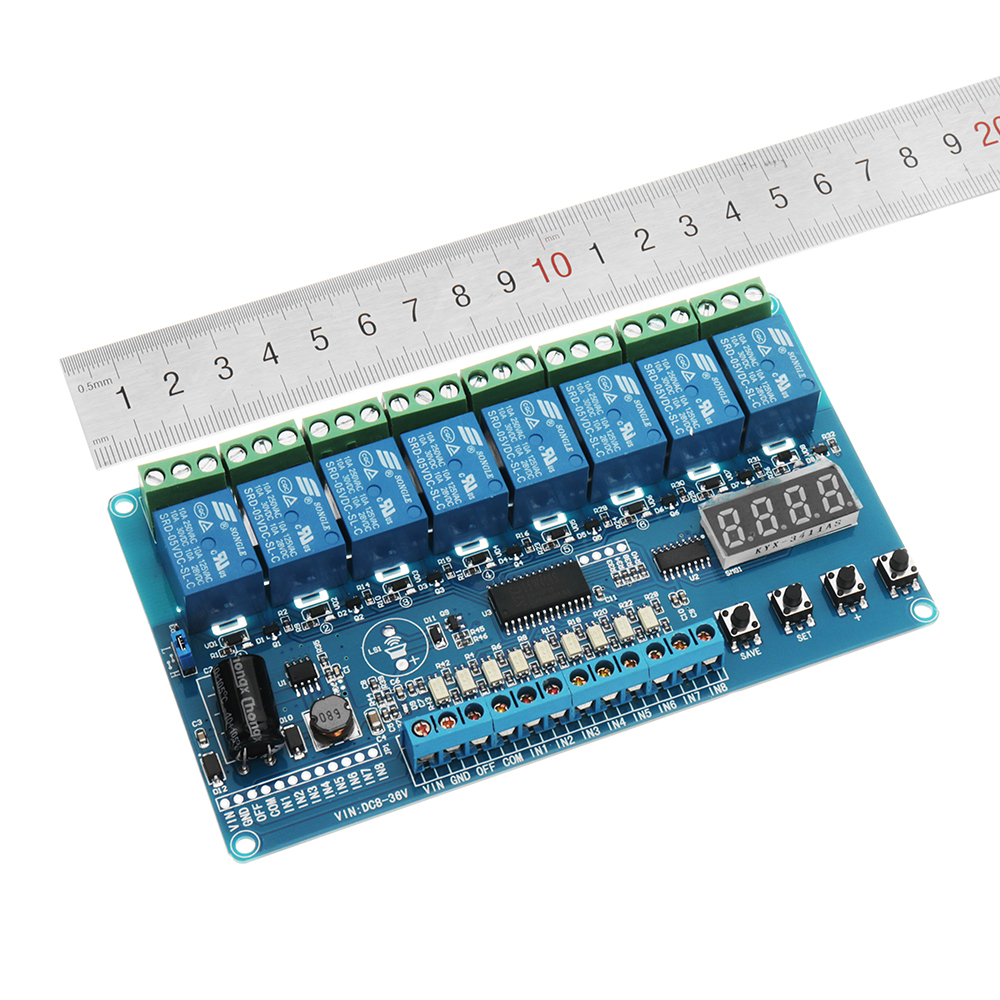

Size: 140*80*20 (length*width*height)
Module interface:
Module voltage / signal input: 12-wire interface, all interfaces have terminal blocks for user convenience
Relay load output: 24-wire interface, all terminals have terminal blocks

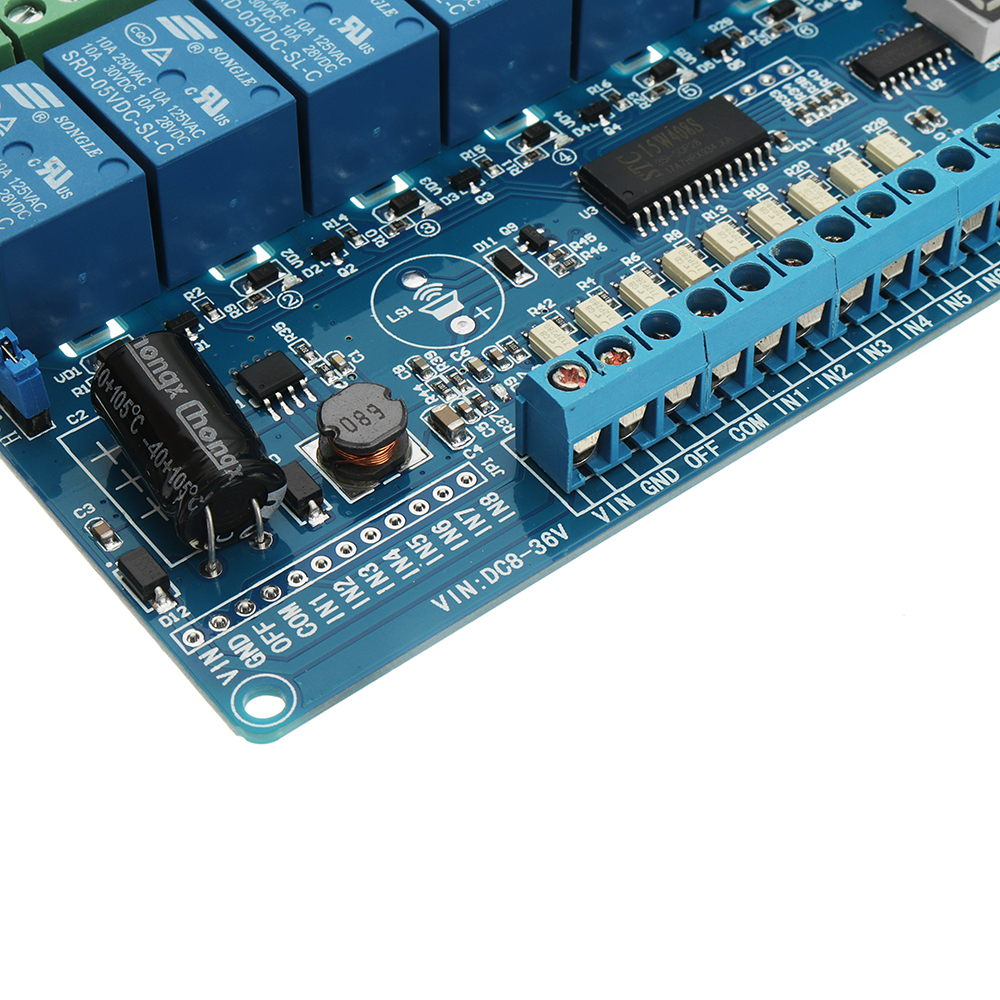

1. VIN: DC power supply positive
2. GND: DC power supply negative
3. OFF: power control terminal (power off when high level)
4. COM: the common end of the photoelectric isolation signal input terminal
5. IN1-IN8: input signal detection interface
Note:
1. The input signal detection interface can be either active high or active low. The user can select through the COM port. If COM is connected to H, IN1-IN8 is active high. If COM is connected to L, IN1-IN8 is active low!
2. Trigger voltage (COM, IN1-IN8 port voltage): do not exceed 5V for high level and do not exceed 0.8V for low level.
Show More
Description
Package includes：
1 X 8 channel multi-function relay module
