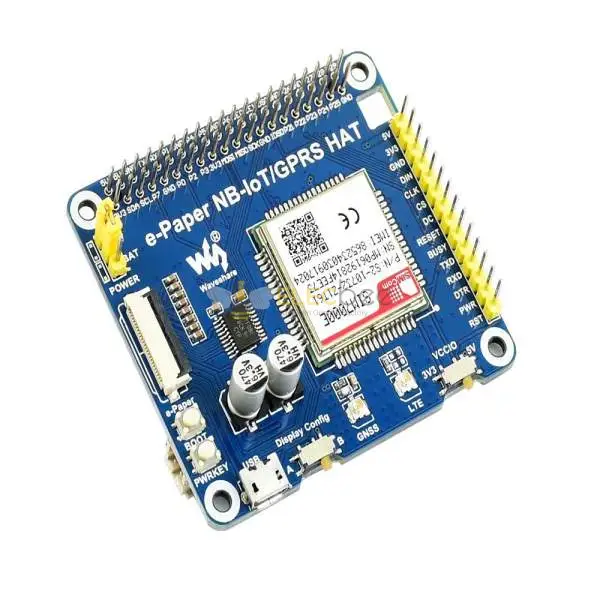

E-paper IOT Driver Board Support NB-IOT/eMTC/EDGE/GPRS SIM7000E 3.3V 5V UART SPI Driver Module for Raspberry Pi
SIM7000E Communication Module, UART Interface, Support NB-IOT/eMTC/EDGE/GPRS
E-Paper Interface SPI Interface ,Compatible with multiples of E-paper Screens
Based on Raspberry Pi 40PIN GPIO Interface, Compatible with Most Raspberry Pi Series Boards
Compatible with STM32 Control boards
Electric Level Switch Circuit Included
Specifications:
Communication Interface: UART+ SPI( 4-wire SPI Default, could change to 3-wire SPI by Resoldering)
Communication Module: SIM7000E
Quad-Band LTE-FDD B3/B8/B20/B28
GPRS/EDGE 900/1800Mhz
GNSS (GNSS Antenna is not included)
Provide 3.7V Battery Power Supply and Charger Circuit, could Power up SIM7000E Module or other 3.3V System(But Raspberry Pi need 5V Power)
Working Voltage: 5V
Electric Level Switch Circuit Included, Switching Between 3.3V/5V
Logic Electric Level:3.3V/5V
Battery: 3.7V Lithium Battery (Not included)
Size:56.5x65mm
For more info please click : http://www.waveshare.net/wiki/E-Paper_NB-IoT/GPRS_HAT
https://github.com/waveshare/e-Paper
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
Please ensure that the module fits your local network frequency
E-paper NB-IOT/GPRS HAT x1
LTE Full Frequency Band Antenna x1
E-paper Adapter x1
24PIN FFC Cable x1
2x20PIN Connector x1
Screws Kit x1
