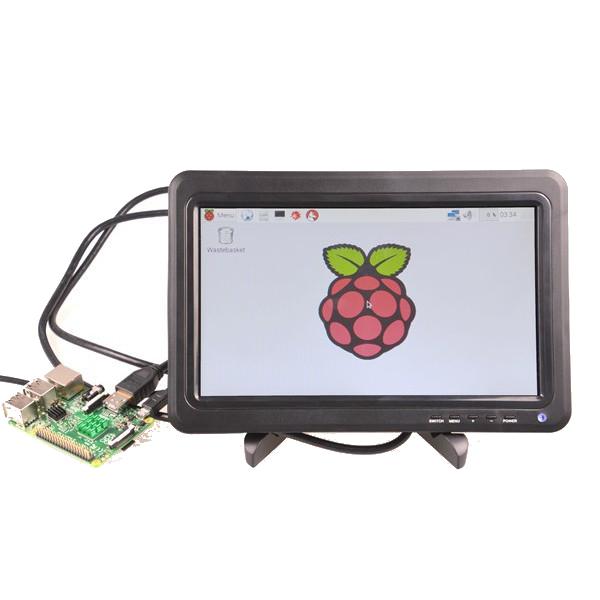

10.1 Inch Digital LCD Screen IPS Display Kit 1366*768 Monitor For Raspberry Pi
Monitor Dimensions: 257mm x 165mm x 41mm / 10.1" x 6.5" x 1.6"
Screen Dimensions: 229mm x 127mm / 9.0" x 5.0"
Panel Type: a-Si TFT-LCD Panel
Panel Size: 10.1"
Resolution (RGB): 1366x768, WXGA
Brightness: 400 cd/m^2
Contrast Ratio: 800:1 (Min.)
Display Colors (8-bit): 16.7M
Response Time (Tr+Td): 30
Viewing Angle (CR>10): 85/85/85/85
Operating voltage: 12V (current requirement 1A-2A)
Rated power: 6-7W
Signal input: CVBS + VGA + HDMI (HDMI 1.2)+Audio in+USB+RF NTSC
Signal output: Headphone output
Resolution: 1366* 768
Plug and Play: Support
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multifunction OSD operation or potentiometer adjust the brightness and color
LCD screen parameters:
Screen size: 10.1 inch
Screen Dimensions: 229mm x 127mm / 9.0" x 5.0"
Panel Type: a-Si TFT-LCD Panel
Panel Size: 10.1"
Resolution (RGB): 1366x768, WXGA
Display Mode: HFFS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 400 cd/m^2
Contrast Ratio: 800:1 (Min.)
Display Colors (8-bit): 16.7M
Package includes:
1 × 10.1inch 1366*768 monitor
1 × Black Folding monitor bracket
1 × Remote controller (Battery is not included)
Note: The Raspberry Pi main board is not included!!
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
Description:
This is a 10.1 inch HDMI television with high-resolution built in 4W stereo speaker.1366*768 resolution, high contrast, low power consumption; 16:9 widescreens;
HDMI HD input interface, connected to the host PC via VGA interface can be used as a display;
Definition interface can be used with DVD players, HDTV, car media connections as entertainment devices with high-quality display effect;
There's also a slot in the side for a USB stick.
In theory if you put some MP3's, pictures or videos on the stick and plug it in you can use the display as a viewer.
There's some little buttons on the front that let you enter a menu system for adjusting brightness, color and contrast.
It auto-detects which input you have and switches to that one or you can 'select' from the menu which to display.
The + and - buttons on the front allow you to quickly change the speaker volume. Its not a HiFi but its fairly loud and good for movies & games.
Works great with a Raspberry Pi, as well as Xbox, Windows desktop and MacBook (with an HDMI adapter cable). Some OS's such as Windows may require you to set the audio output to the external display but with the Xbox & Raspberry pi it immediately used the speakers without any poking or prodding.
For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 1366x768 in case it doesn't detect the resolution properly.
The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.
