Elecbee Original Banana Pi G1 Open Debugger Board Burner Module

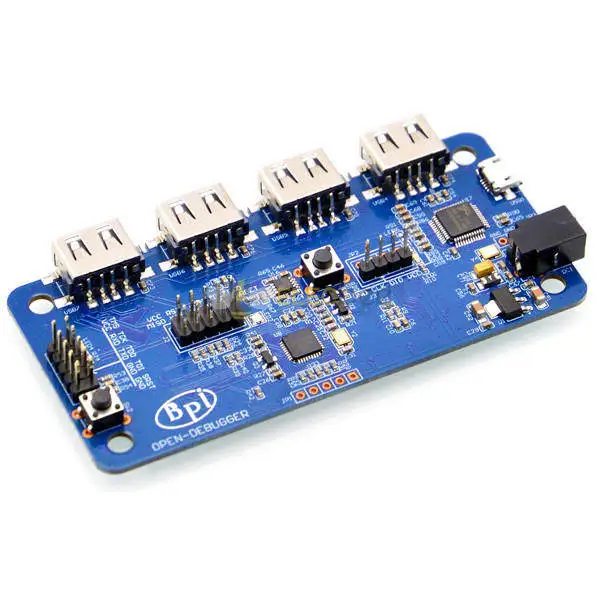

Original Banana Pi G1 Open Debugger Board Burner Module

Introduction:

Open Debugger is a set of programming tools in the development of STM series of microcontrollers, TI CC1x, 2x, TI CC3x series SOC, when STC Series MCU can be programmed quickly and easily debug, debugging programmer does not have to do something different series of chips switching plug tedious work.
In addition, it also integrates a USB to serial port, which is a common interface for embedded development.
It is also one of USB2.0 HUB, making it easy to extend to other USB tools.
With it, no longer need to face a bunch of different writer, complicated mess of wiring, USB port deficiencies.

Operating Condition:

Operating voltage: DC 5V
Operating temperature: 0°C to 85°C
The onboard voltage output: 3.3 V
Maximum output current: 2000 mA
Supported operating systems:
Microsoft Windows 2000
Windows XP SP2/SP3 operating system (32-bit versions)
Windows Vista operating system (32 and 64 bit)
Windows 7 operating system (32 and 64 bit)
Windows 8 operating system (32 and 64 bit)

Support Objects:

a)CC Debugger Interface:

Programming and debugging of the following 8051-based TI SoCs:

  CC1110, CC1111

  CC2430, CC2431

  CC2510, CC2511

  CC2530, CC2531, CC2533

  CC2540, CC2541

  CC2543, CC2544, CC2545

Control the same apparatus to SmartRF Studio. In addition, you can also control the following transceiver SmartRF:

  CC1120, CC1121, CC1125, CC1175

  CC1100, CC1101, CC110L, CC113L, CC115L

  CC2500, CC2520

It can also be used to program the PurePath wireless devices:

  CC8520, CC8521

  CC8530, CC8531

b)SWD Interface:

Programming and debugging mainstream ARM7 9 11, Cortex-A5 A8 A9 M0 M1 M3 M4

Supported MCU manufacturers:

ST, Freecale, Nuvoton, NXP, TI, Cypress, Atmel, Analog, Fujitsu, Toshiba, Energy Micro...

Speeds up the programming and debugging functions 4Mhz: Write Flash Rom, EEPROM,   ARF, and support for full speed, stepping, breakpoints

c)JTAG Interface:

JTAG programming and debugging interface for all supported kernel.

d)UART Interface:

STC series microcontroller programming and debugging output port for printing information.



1 x Original Banana Pi G1 Open Debugger

Acronym table
CSn	Chip Select (active low)
DC	Debug Clock
DD	Debug Data
RST	Debug Reset
DUT	Device Under Test
GND	Ground
LED	Light Emitting Diode
MISO	Master In Slave Out
MOSI	Master Out Slave In
RF	Radio Frequency
SCLK	Serial Clock
SoC	System-on-Chip
SPI	Serial Peripheral Interface
USB	Universal Serial Bus
Target	Positive voltage on target
CLK	SWD Clock
DIO	SWD DATA Input/Output
TMS	JTAG Test Mode Select
TCK	JTAG Test Clock Input
TDO	JTAG Test Data Output
TDI	JTAG Test Data Input
SRST	JTAG Test Reset Input, Active Low
RXD	USB Serial Input
TXD	USB Serial Output
