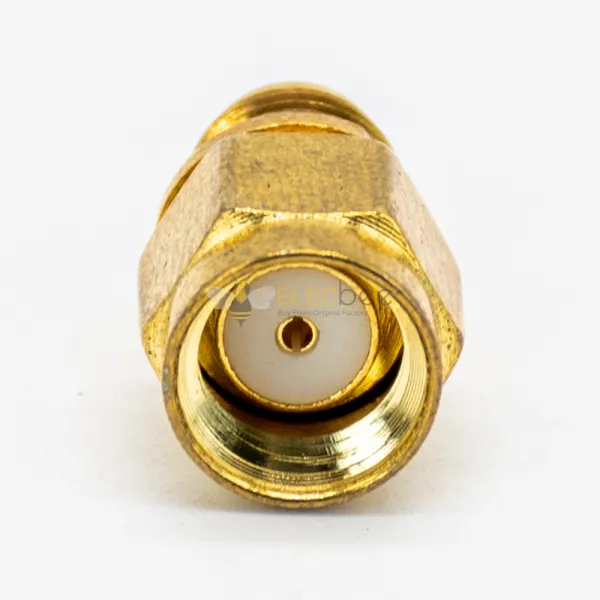

RP-SMA Connector Plug to SMA Female Straight Adapter

RP-SMA Connector Plug to SMA Female Straight Adapter
RP-SMA Connector Plug to SMA Female Straight Adapter

Elecbee Part No: EB-007-0031

SMA Adapter,RP Male to Female,Straight,Gold,50Ohm

  • Stock: In Stock
  • Model: EB-007-0031
  • Weight: 10.00g
  • SKU: EB-007-0031
190 samples sold
$2.35
Ex Tax: $2.35









Features:

  • SMA Adapter,RP Male to Female,Straight,Gold,50Ohm
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in compact design;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Technology: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System


Techinial Datasheet:

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0~18 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
    750 V rms min. for RG316, RG402
    500v rms min. for RG178
  • Working Voltage: 500 V rms max. for RG142, RG405
    375 V rms max. for RG316, RG402
    170 V rms max. for RG178
  • Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

  • Coupling: 1/4-36 thread
  • Contact Retention: 15 in-lbs min.
  • Coupling nut torque: 30 in-lbs. min.
  • Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: -65°C ~ +165°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body BRASS Au:1-3u"
insulator TEFLON NONE
Center Contact Pin BRASS Au:5u"


Drawing:

Our Cooperated Connector Factory:

connector factory

Orientation
Straight
Connector A Type
SMA
Connector A Gender
RP male
Connector B Type
SMA
Connector B Gender
Female
