Elecbee X730 v1.1 Power Management with Safe Shutdown and Auto Cooling Function Expansion Board for Raspberry Pi 3B+(plus) /3B(Plus) / 3B / 2B
SKU: EB0049652
Favorites
Key Features
Show More
Description
Overview:

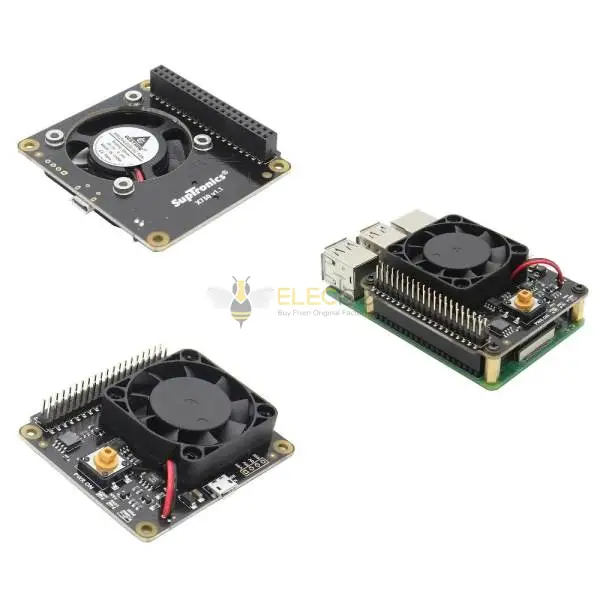

The X730 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40 pin header.It provides intelligent and safe power management, safe shutdown and full poweroff through software, an automatic temperature controlled fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments.The X730 also reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications.
Features:
About Power Management
- Intelligent and safe power management
- Press the power button to turn on
- Press the button and hold for 1~2seconds to reboot
- Press the button and hold for 3~7seconds for safe shutdown
- Press the button and hold for >8seconds to force shutdown
- Supports safe shutdown and full poweroff through software
- On-board LED shows the status of power on, reboot and shutdown
- Powers the Raspberry Pi via the 40-pin header - no additional cabling required
About Cooling Fan
- Dual trip point temperature controlled cooling fan
- Auto-Control the fan for Cooling / quiet Operation
- Board tempeature <18℃ - Fan off
- Board tempeature >18℃ - Fan running low
- Board tempeature >38℃ - Fan running at full speed
- On-board LEDs show the status of fan running low and high
- No driver and setting required
Others
- Reserved 40-pin stackable Header for Add-On Boards
- Works with all current models of the Raspberry Pi using a 40 pin header
- On-board micro-USB socket for power input - No need to change the power adapter
The X730 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40 pin header.It provides intelligent and safe power management, safe shutdown and full poweroff through software, an automatic temperature controlled fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments.The X730 also reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications.
Features:
About Power Management
- Intelligent and safe power management
- Press the power button to turn on
- Press the button and hold for 1~2seconds to reboot
- Press the button and hold for 3~7seconds for safe shutdown
- Press the button and hold for >8seconds to force shutdown
- Supports safe shutdown and full poweroff through software
- On-board LED shows the status of power on, reboot and shutdown
- Powers the Raspberry Pi via the 40-pin header - no additional cabling required
About Cooling Fan
- Dual trip point temperature controlled cooling fan
- Auto-Control the fan for Cooling / quiet Operation
- Board tempeature <18℃ - Fan off
- Board tempeature >18℃ - Fan running low
- Board tempeature >38℃ - Fan running at full speed
- On-board LEDs show the status of fan running low and high
- No driver and setting required
Others
- Reserved 40-pin stackable Header for Add-On Boards
- Works with all current models of the Raspberry Pi using a 40 pin header
- On-board micro-USB socket for power input - No need to change the power adapter
[Packing List]
1 x X730 Expansion Board
1 x Install Screw Pack
Note: The raspberry Pi is not included.
