3i360 Degree Industrial 8m Laser Sensor Scanner for Robot Module short Measuring Sensor Positioning Navigation
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
Specifications:
Range: 0.13m - 8m (white wall)
Sweep frequency: 6.2Hz
Laser power:3mW(max)
Distance coefficient of variance: DCV<0.2%
Voltage: 5V
Laser grade:Class1 3mw/780nm
Starting current:600mA
Baud rate: 115200
Working environment temperature: 0 ° C - 45 ° C
Work environment humidity: <90%
Sampling rate: 4K/s
Laser wavelength: 780nm
Accuracy: <2% 5m
Communication interface: RS232 (3.3V TTL)
Power consumption: 1.5 W
Working current: 300 mA
Size:diameter 87*44mm
Levelness 0 ° - 1 °
Work environment illumination<1000Lux
Humidity:<90%
Working mode: 8 bit data, 1 bit stop bits, Check:None.
Baud rate: 115200
Output low level: <0.4
Output high level: 2.9-3.5
Application:
LiDAR can be applied to robot SLAM positioning and obstacle avoidance, industrial fast and accurate mapping, environmental scanning, self-construction, path planning.

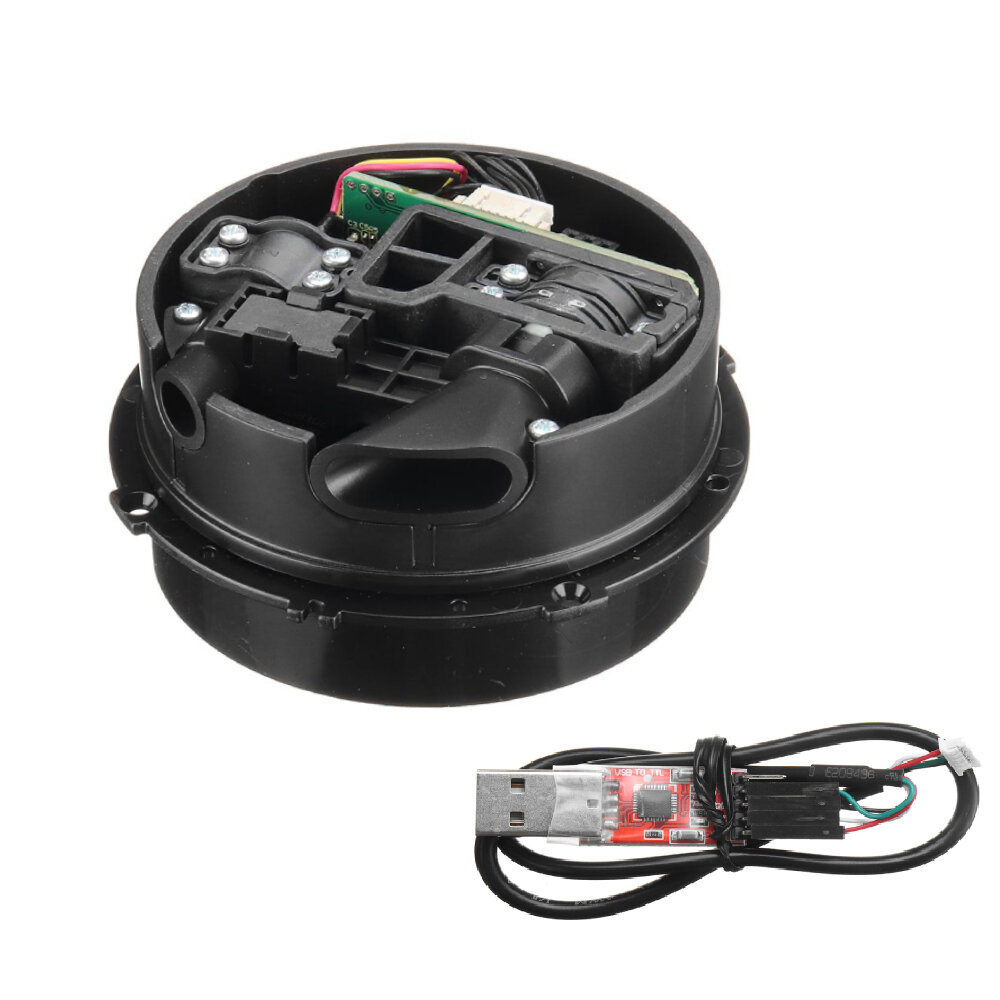

1 x 3iLIDAR 360 Degree Industrial 8m Laser Sensor LiDAR Scanner
