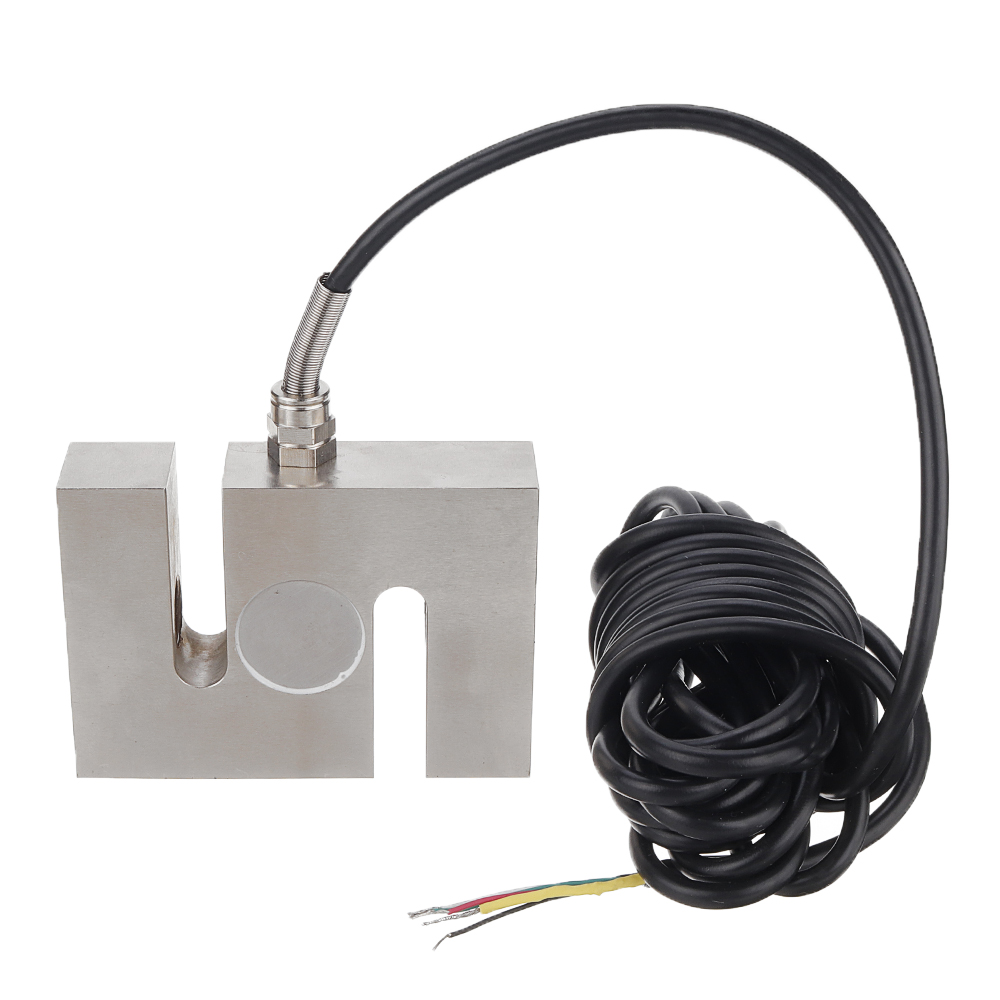

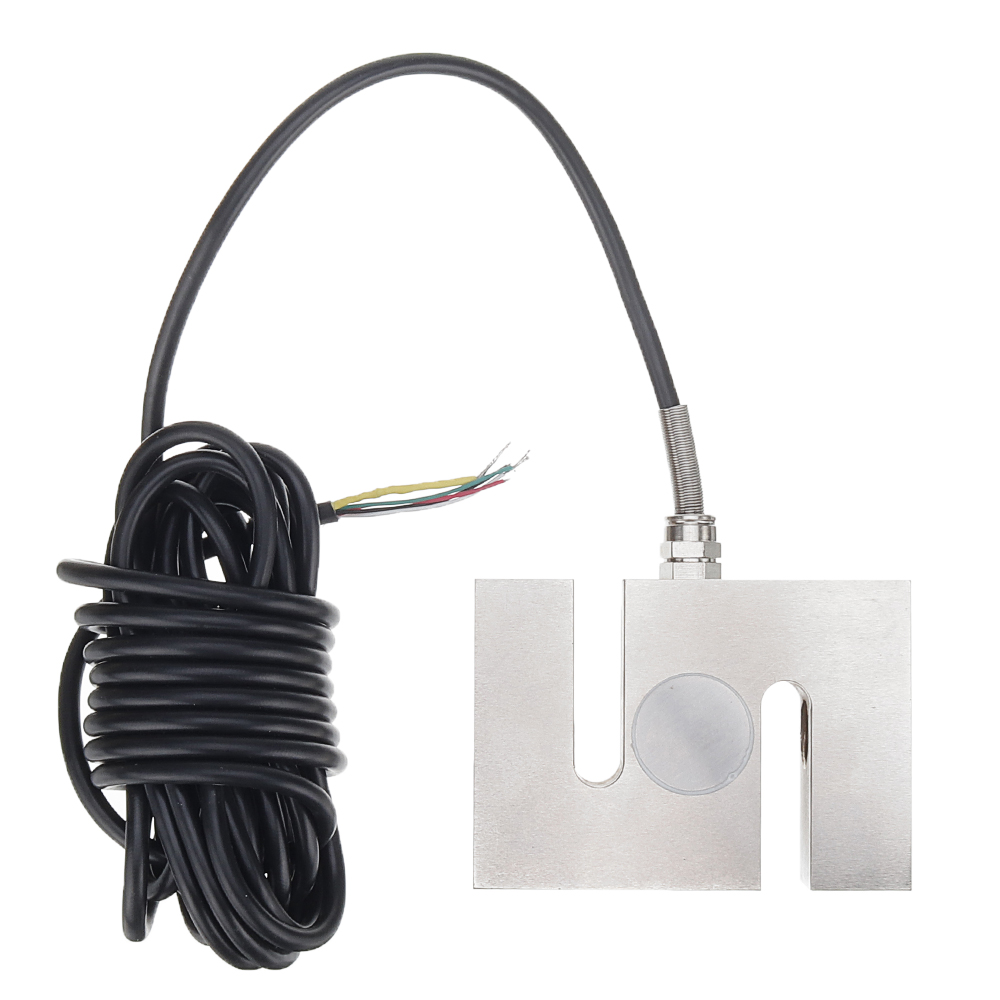

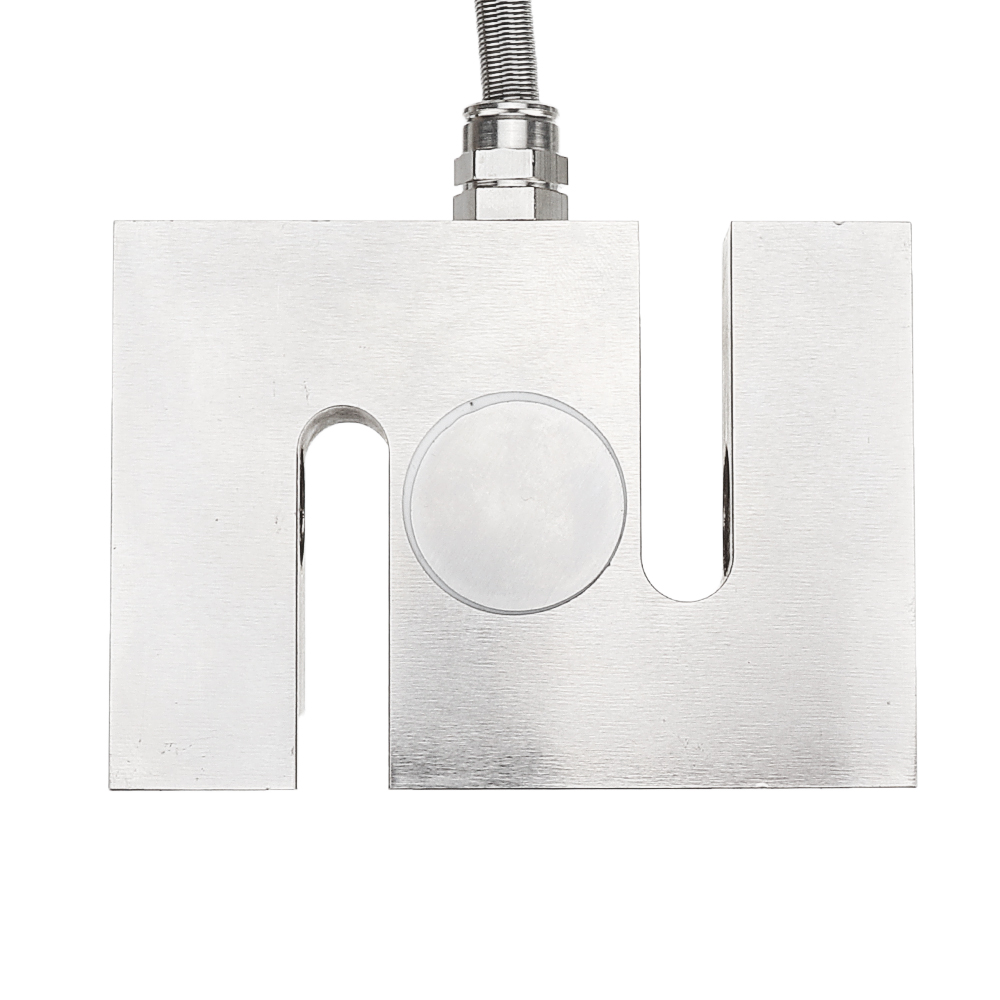

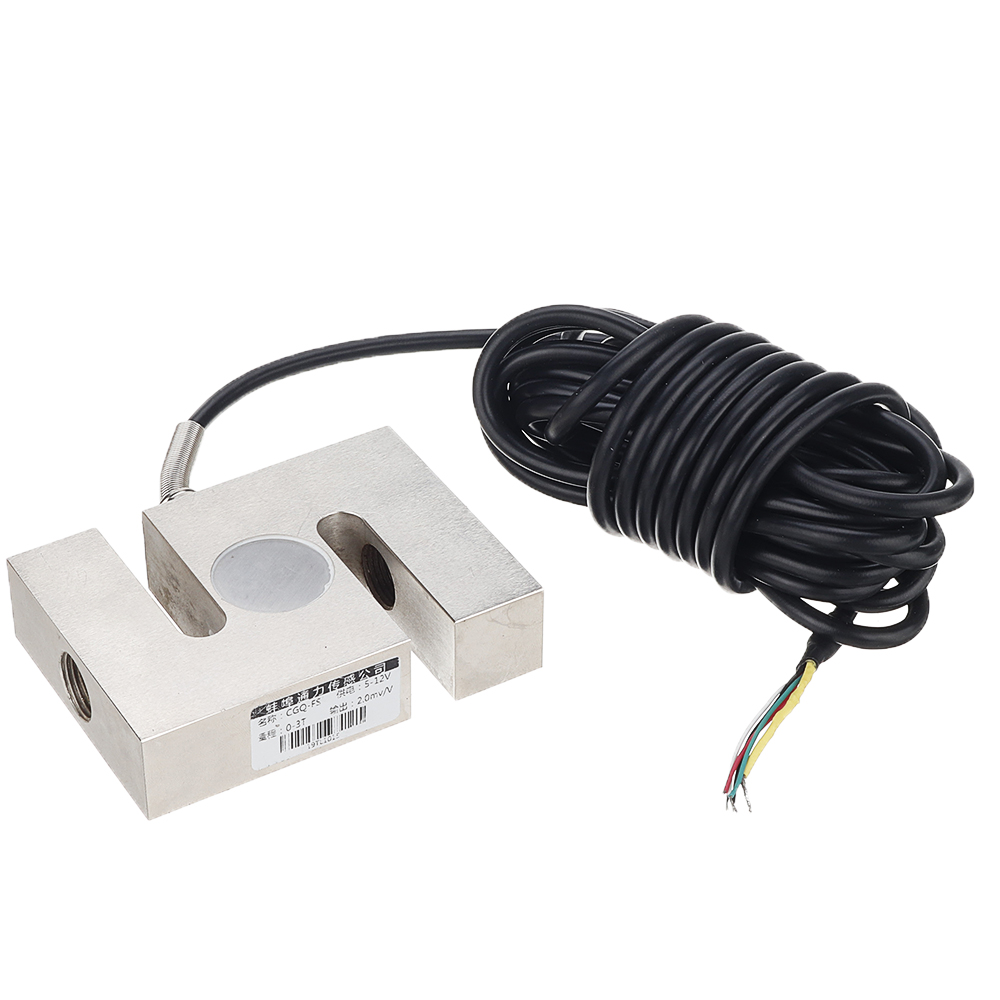

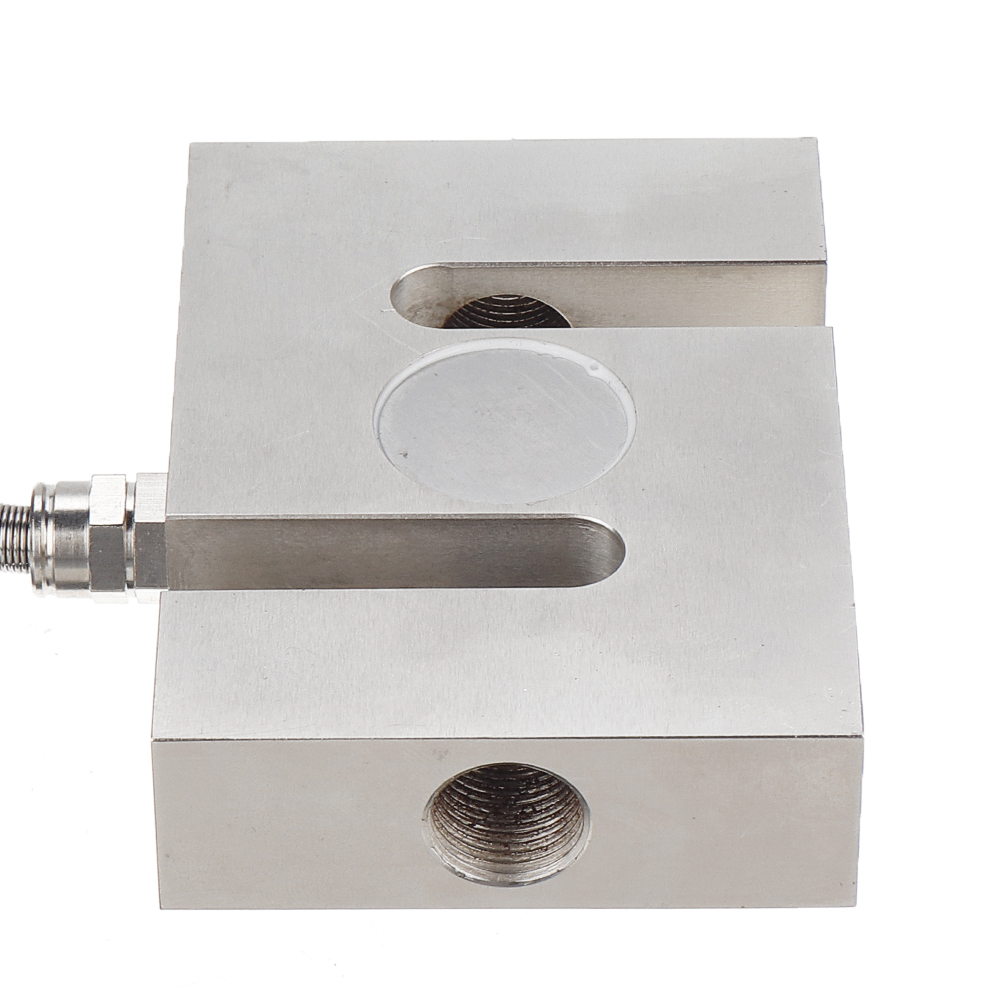

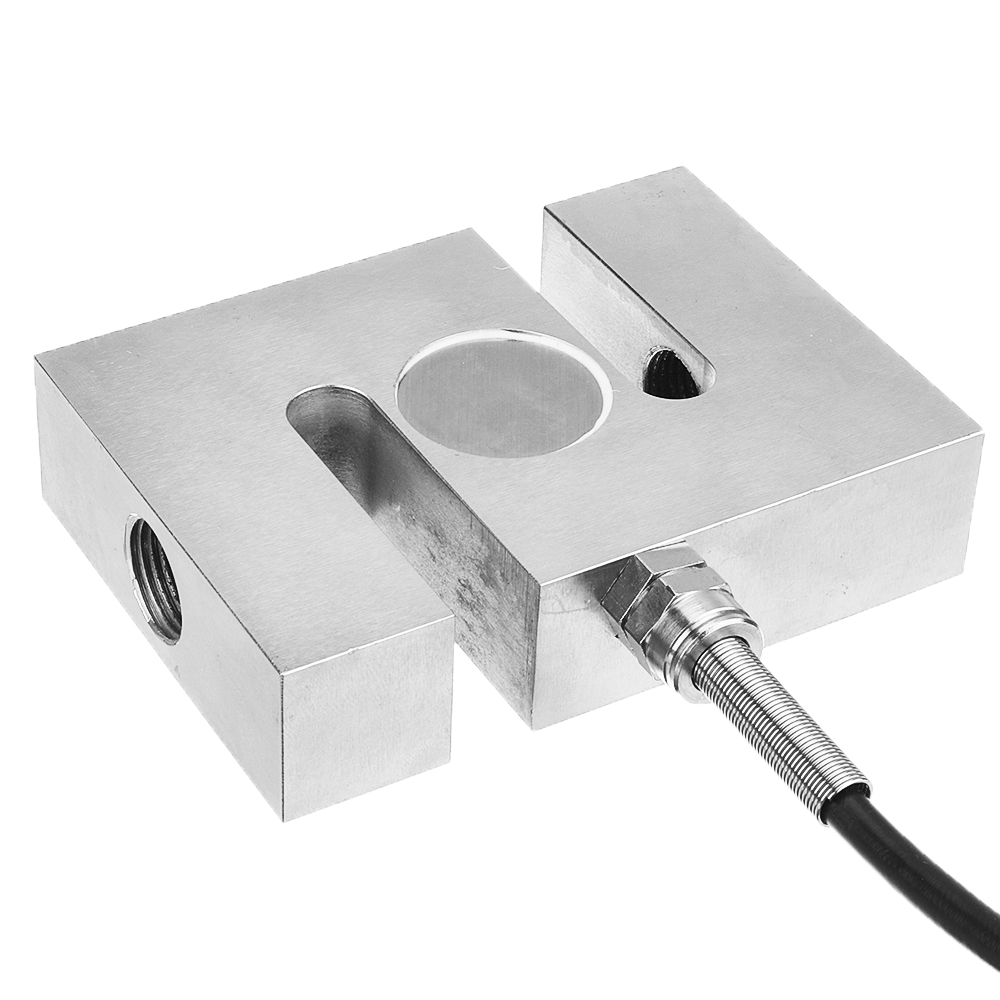

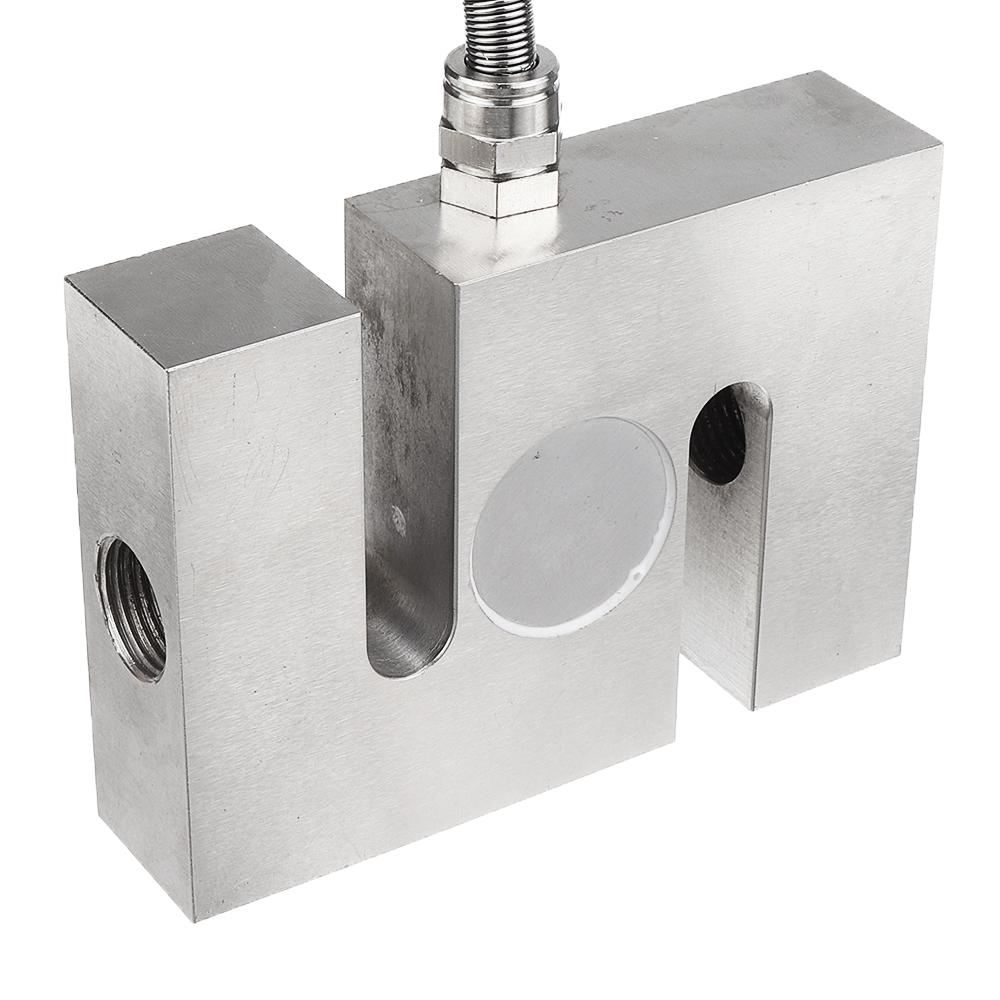

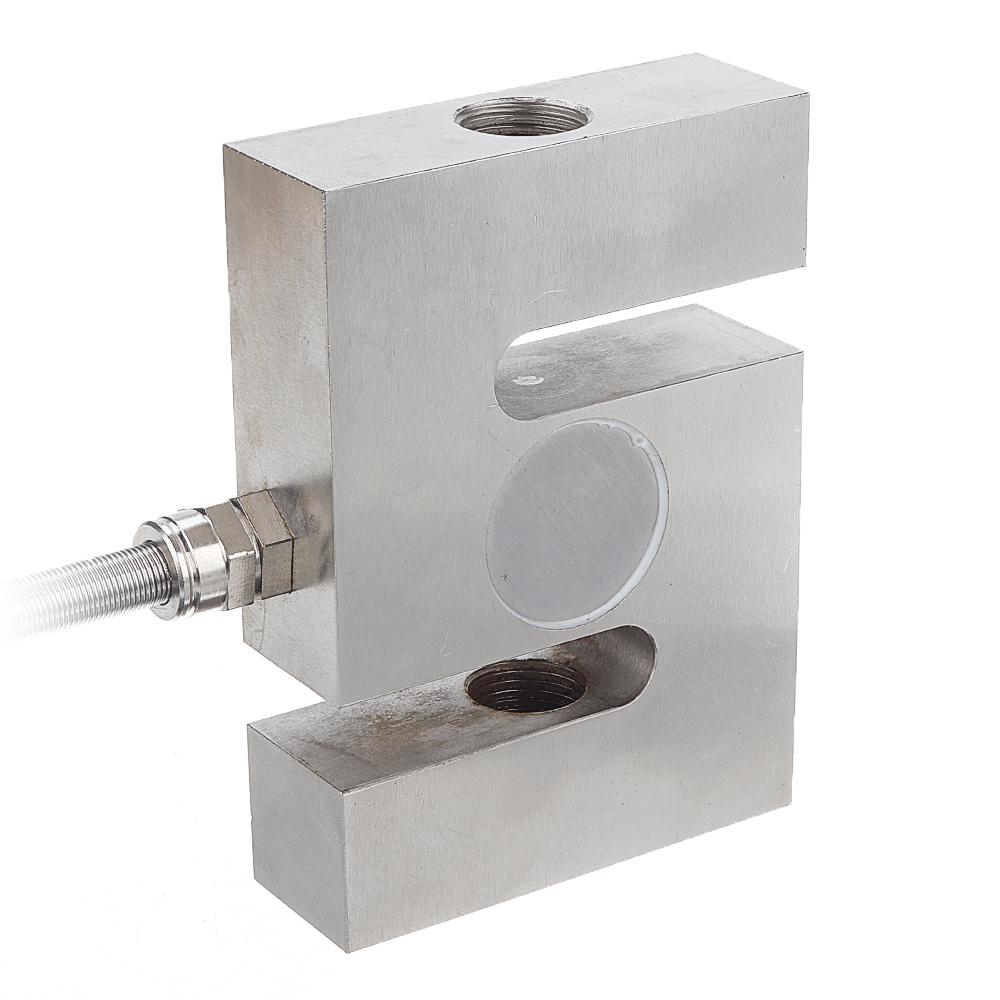

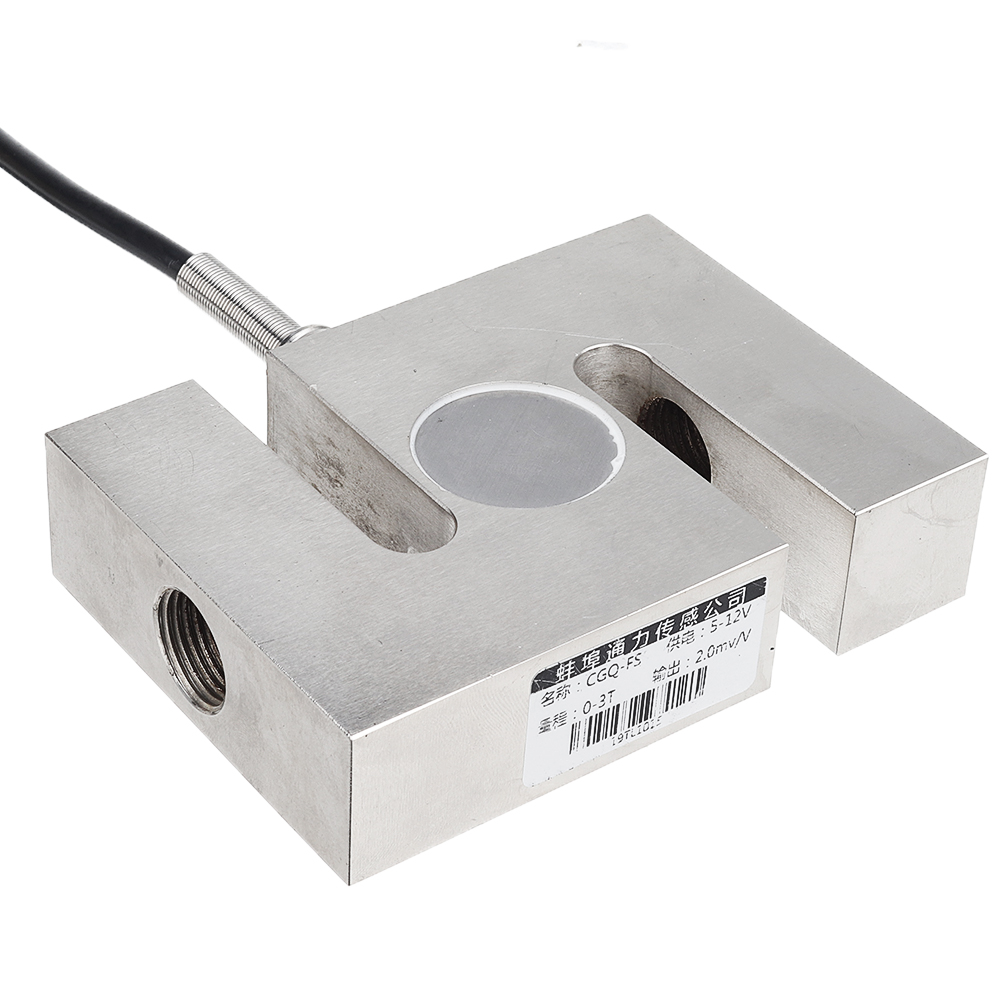

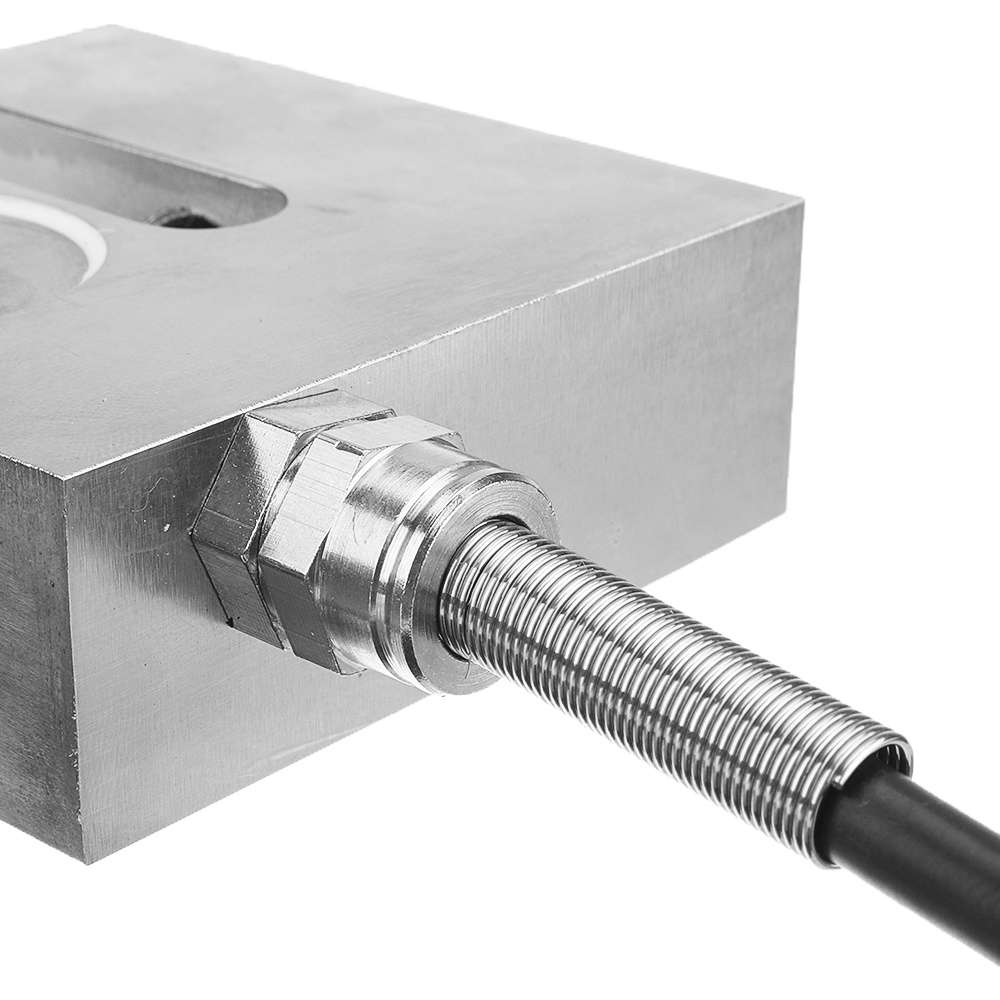

Elecbee 100kg-3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor

SKU: EB0047527

Favorites

Key Features

Range: 100kg, 200kg, 300kg, 500kg, 1T, 2T, 3T (optional)

Overall accuracy: xa00.03% F · S

Sensitivity: 2 ± 0.1 mV / V

Creep: ± 0.05% F · S/30min

Nonlinear: ± 0.03% F · S

Hysteresis error: ± 0.03% F · S

Repeatability error: ± 0.02% F · S

Zero temperature coefficient: ± 0.03% F · S/10

Output temperature coefficient: ± 0.03% F · S/10

Input impedance: 700 ± 15Ω

Output Impedance: 650 ± 15Ω

Insulation resistance: ≥ 5000 MΩ

For the bridge voltage: Recommended 10 VDC (standard signal 12V 24V)

Operating temperature range:- 20 ~ +70xa0

Safe overload: 150% F · S

Sealing Rating: IP67

Material: Alloy steel (40CrNiMo)

xa0

Wiring Instructions:

xa0

Power Positive: Red Power Negative: green

Output Positive: Yellow Output Negative: white

Specifications

Show Similar Products >

Attribute

Value

Model

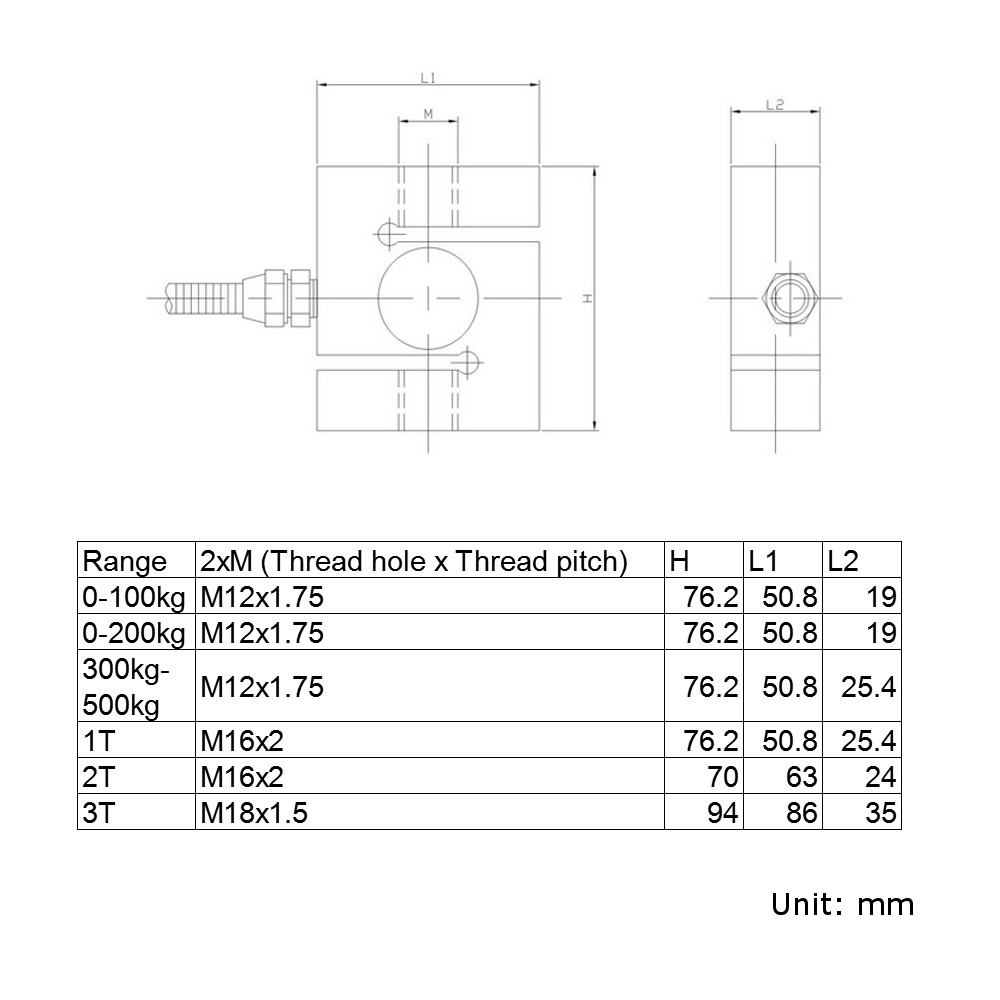

DESCRIPTIONIMAGE0

Show Similar Products >

Description

Package includes:

1 x Weighing Sensor

100kg-3T-Strain-Gauge-Pressure-Sensor-S-Load-Cell-Electronic-Scale-Sensor-Weighing-Sensor-1523978
