Elecbee -4051 74HC4051 8 Channel Analog Multiplexer Module Sensor Board

SKU: EB0043623

Favorites

Key Features

xa0
Wide analog input voltage range from -5 V to +5 V
Complies with JEDEC standard no. 7A
Low ON resistance:
xa0xa080 ohmxa0(typical) at VCC -xa0VEE = 4.5 V
xa0xa070 ohm(typical) at VCC -xa0VEE = 6.0 V
xa0xa060 ohm(typical) at VCC -xa0VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with±5 V analog signals
Typical ‘break before make’ built-in
ESD protection:
xa0xa0HBM JESD22-A114F exceeds 2000 V
xa0xa0MM JESD22-A115-A exceeds 200 V
xa0xa0CDM JESD22-C101E exceeds 1000 V
Multiple package options
Specified from -40℃xa0to +85℃xa0and -40℃xa0to +125℃xa0

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

HC4051

Show Similar Products >

Description

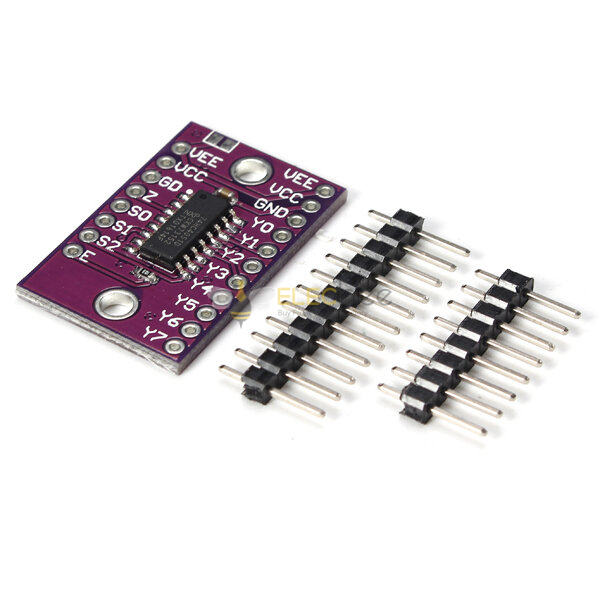

1 x CJMCU-4051 74HC4051 8 Channel Analog Multiplexer Module

Description:

74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for
use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features
three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a
common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are
turned off. Inputs include clamp diodes. This enables the use of current limiting resistors
to interface inputs to voltages in excess of VCC.

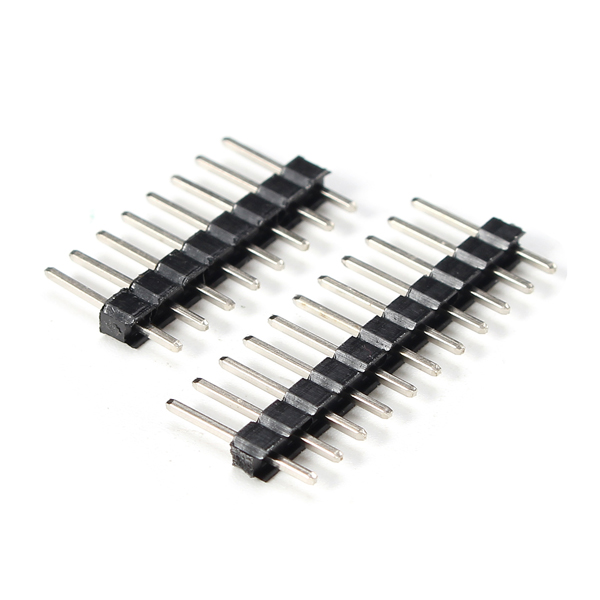

1 x CJMCU-4051 74HC4051 8 Channel Analog Multiplexer Module

CJMCU-4051-74HC4051-8-Channel-Analog-Multiplexer-Module-Sensor-Board-1091944
