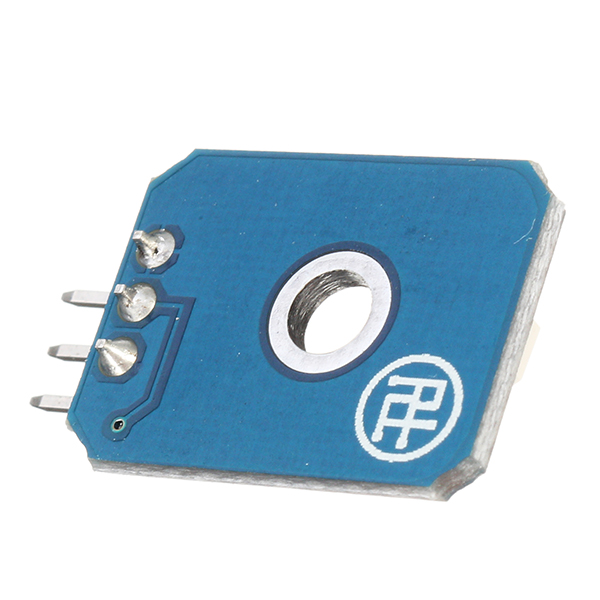

Elecbee DC 3.3-5V 0.1mA UV Test Sensor Switch Ultraviolet Ray Sensor Module Test UV Wavelength 200-370nm





1. Operating voltage: DC 3.3-5V

2. Output voltage: DC 0-1V

3. Test accuracy: ±1UV INDEX

4. Current: 0.06mA (typ), 0.1mA (max)

5. Response wavelength: 200nm-370nm

6. Response time: less than 0.5 seconds

7. Work temperature: -20℃ ~85℃

8. Test UV wavelength: 200-370nm

9. Size: 19.80 x 15mm

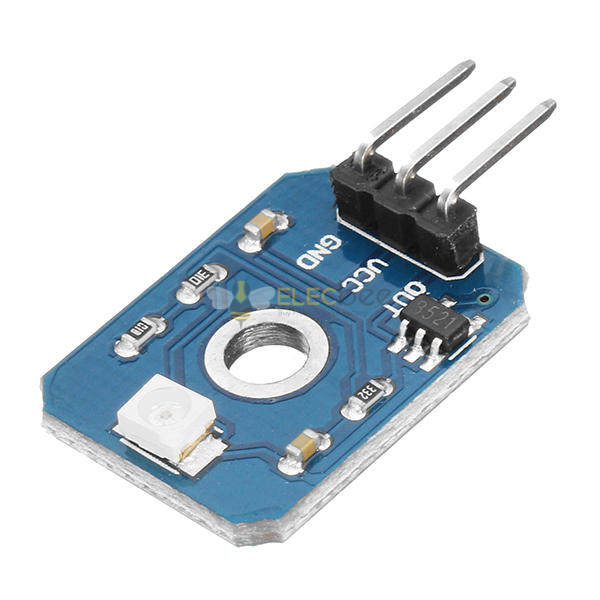

VCC- is the positive input port of power supply, access 3.3V-5V voltage

GND-GND is the negative input port of power supply

OUT-OUT is the output port of analog signal, connected to I / O port of MCU



Note: The player should set the I/O port of MCU as input mode / receive mode, otherwise it can not be used. Other MCU, or more advanced control panel such as Arm, which need to set the I/O port as the input and output mode, must be set to input mode / receive mode, otherwise it can not be used. 51 series can be used directly, no need to set the input and output mode.



Overview:



Designed for applications where high reliability and accuracy of the UV index (UVI) are required;

Suitable for measuring the total amount of solar ultraviolet light intensity;

Contrast the World Health Organization UV Index grading standards

The test wavelength of UV was 200-370nm;

Quickly response, full interchangeability;





1 x UV test sensor module



,,,,
