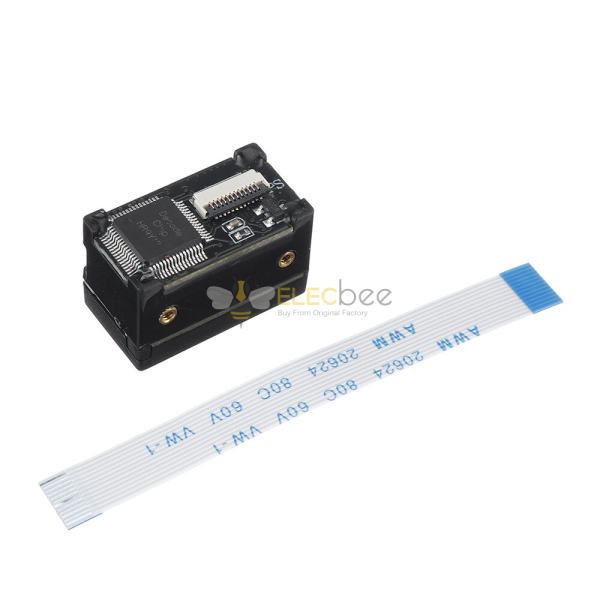

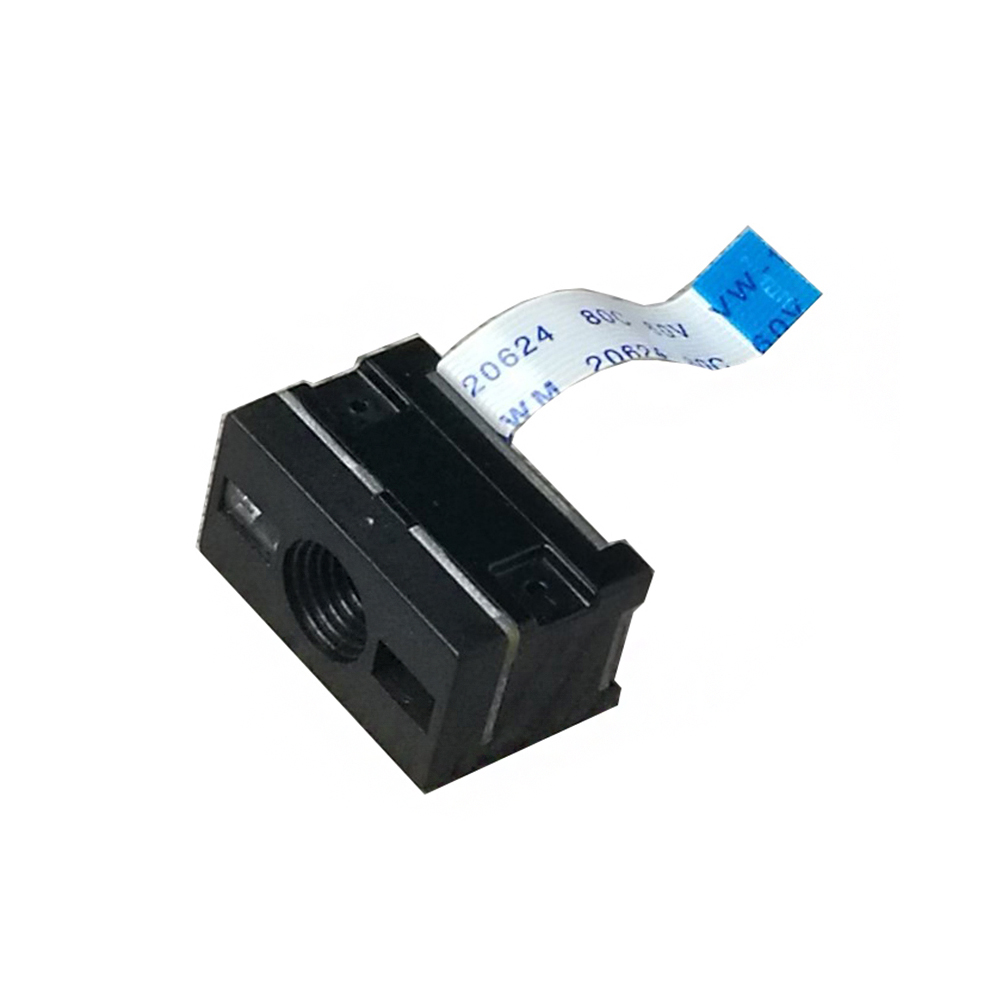

Elecbee GM65-S 1D/QR/2D Bar Code Scanner QR Code Reader Barcode Reader Module USB UART
SKU: EB0043079
Favorites
Key Features
Show More
Datasheet
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + Cellular
Model
GM65
USB Support
USB 2.0
Description
- Voltage: 3-5V DC
Precise details>>
Precise details:
>>>Manual: Click here to open<<<
Specifications:
Model | GM65S |
Type | Barcode Scanner |
Decoding Ability | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
Interface | USB2.0 UART |
Resolution | 0.10mm (4mil) |
Operating Voltage | 3V |
Operating Current | 120mA |
Weight | 7g |
Size | 21.4*13.5*11.8mm |
Type of Illuminant | 617nm LED(Aimer), 6500K LEDs(Illumination) |
LED Indicator:Buzzer and bi-color light: | Red-power, Blue-decoding Successfully |
Scan Angle | 0-360°, Pitch:±65°or greater, Yaw:±60°or greater |
Scanning angle Inclination angle | 34°, Elevation angle 26° |
Print Contrast | 30% minimum reflective difference |
Reading Distance | 25 - 250mm |
Operating Temperature | -20 degrees to 55 degrees |
Storage Temperature | -40 degrees to 65 degrees |
Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
Light Levels | 0-85000LUX |
1 x GM65-S 1D/QR/2D Bar Code Scanner
| Model | GM61 | GM63D | GM73 | GM65-S | GM65 | GM66 | GM67 | GM68 | GM72 |
| Interface | UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART |
| Resolution | 8 mil | 6 mil | 6 mil | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 5 mil | 6 mil | 6 mil |
| Operating Voltage | 3.3V | 5V | 5V | 3V | 5V | 5V | 5V | 3.3V | 5V |
| Operating Current | 58mA | 90mA | 90mA | 120mA | 120mA | 120mA | 180mA | 100mA | 100mA |
| Weight | 3g | 15g | 15g | 7g | 13g | 31g | 13g | 6g | 27g |
| Size | diameter 21mm | 51*28.5*1.6mm | diameter 46mm | 21.4*13.5*11.8mm | 46.8*27.5mm | 62.3*42.5*24.5mm | 46.5*27.5*14mm | 30*24*7mm | 65*61*28mm |
| Decoding Ability | QR Code,Code 128,EAN 128,Code 39,Code 93,Code 11,UPC,EAN,Codebar,Interleaved 2of 5,Matrix 2of 5,MSI Code,Industrial 2of 5,GS1 Databar | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code etc 2D:PDF417,QR Code ,Data Matrix , Maxicode, Aztec etc | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec |
Specifications:
Model | GM65S |
Type | Barcode Scanner |
Decoding Ability | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
Interface | USB2.0 UART |
Resolution | 0.10mm (4mil) |
Operating Voltage | 3V |
Operating Current | 120mA |
Weight | 7g |
Size | 21.4*13.5*11.8mm |
Type of Illuminant | 617nm LED(Aimer), 6500K LEDs(Illumination) |
LED Indicator:Buzzer and bi-color light: | Red-power, Blue-decoding Successfully |
Scan Angle | 0-360°, Pitch:±65°or greater, Yaw:±60°or greater |
Scanning angle Inclination angle | 34°, Elevation angle 26° |
Print Contrast | 30% minimum reflective difference |
Reading Distance | 25 - 250mm |
Operating Temperature | -20 degrees to 55 degrees |
Storage Temperature | -40 degrees to 65 degrees |
Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
Light Levels | 0-85000LUX |
1 x GM65-S 1D/QR/2D Bar Code Scanner
| Model | GM61 | GM63D | GM73 | GM65-S | GM65 | GM66 | GM67 | GM68 | GM72 |
| Interface | UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART |
| Resolution | 8 mil | 6 mil | 6 mil | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 5 mil | 6 mil | 6 mil |
| Operating Voltage | 3.3V | 5V | 5V | 3V | 5V | 5V | 5V | 3.3V | 5V |
| Operating Current | 58mA | 90mA | 90mA | 120mA | 120mA | 120mA | 180mA | 100mA | 100mA |
| Weight | 3g | 15g | 15g | 7g | 13g | 31g | 13g | 6g | 27g |
| Size | diameter 21mm | 51*28.5*1.6mm | diameter 46mm | 21.4*13.5*11.8mm | 46.8*27.5mm | 62.3*42.5*24.5mm | 46.5*27.5*14mm | 30*24*7mm | 65*61*28mm |
| Decoding Ability | QR Code,Code 128,EAN 128,Code 39,Code 93,Code 11,UPC,EAN,Codebar,Interleaved 2of 5,Matrix 2of 5,MSI Code,Industrial 2of 5,GS1 Databar | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code etc 2D:PDF417,QR Code ,Data Matrix , Maxicode, Aztec etc | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec |
