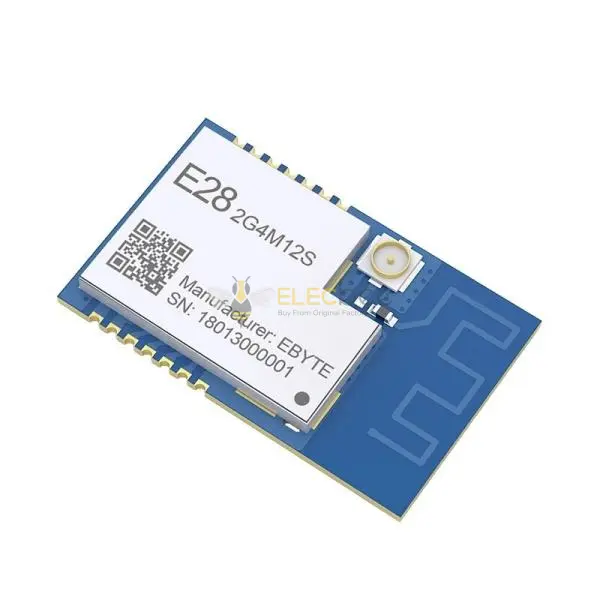

Elecbee E28-2G4M12S SX1280 2.4GHz 3000m Long Range BLE Wireless RF Transceiver bluetooth Module

SKU: EB0047380
Favorites

Key Features

Show More
Description
  • Voltage: DC3.3V
    Precise details>>

    Precise details:

    Specification:


    RF Parameter



    Value

    Remark

    Working frequency



    2400~2500MHz

    		Default: 2.4GHz (52MHz oscillator)

    Transmitting power



     12.5dBm

    About 18mW

    Receiving sensitivity



    -128dBm

    Air data rate: 125kbps

    Air data rate

    0.125M~2Mbps



    		Default: 125kbps

    Test distance

    3000m

    In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 125kbps


    Hardware Parameter

    Value

    Remark

    Size

    24* 15mm

    /

    Antenna type

    IPEX/PCB

    /

    Interface

    SPI

    /

    Package

    SMD

     /


    Electronic parameter

    Min.

    Typ.

    Max.

    Unit

    Condition

    Power supply

    1.8

    3.3

    3.6

    V



    Communication level

    		1.8

    3.3

    		3.6

    V



    Transmitting current

    		424550

    mA

    		12.5dBm(18mW)

    Receiving current

    		91011

    mA



    Sleep current

    		1

    2

    		3

    μA


    Operating temperature

    -40

    20

    +85

    ℃



    Operating humidity

    10

    60

    90

    %


    Storage temperature

    -40

    20

    +125

    ℃




    Package included:

    1 x RF Transceiver Module
