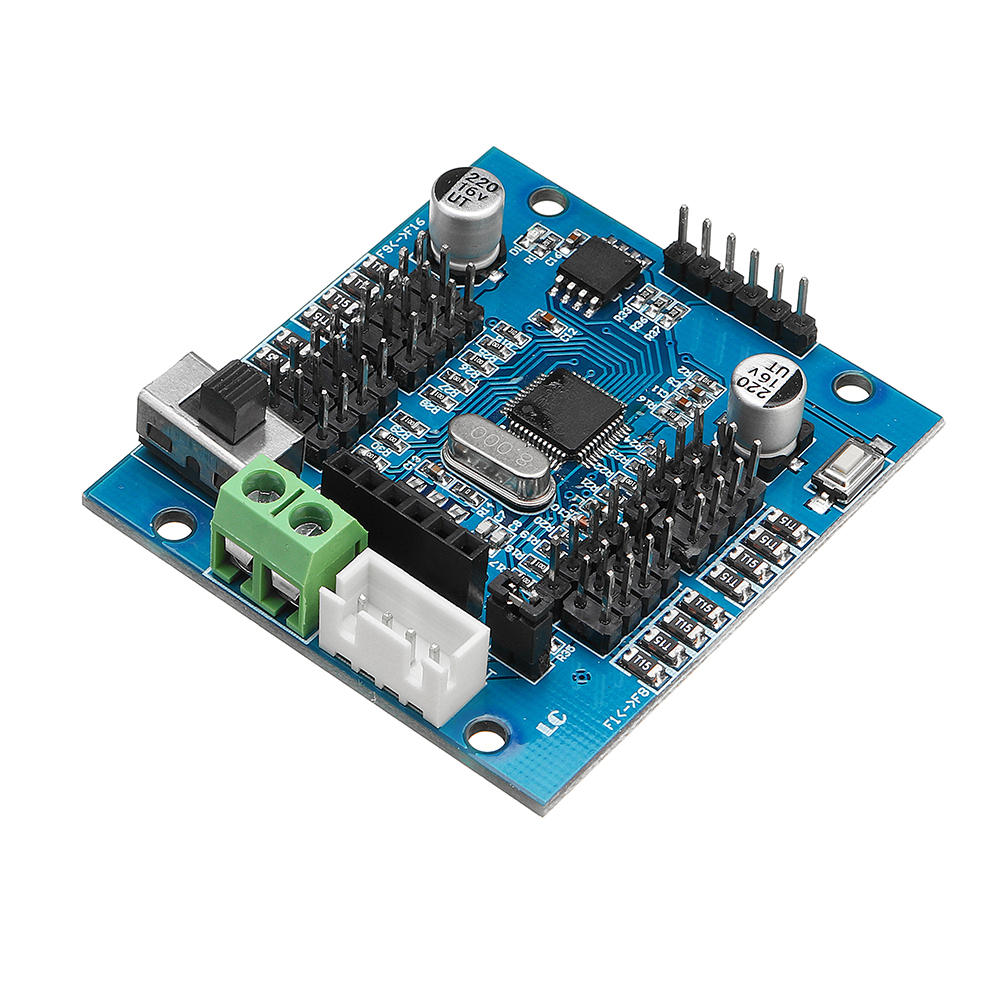

Elecbee LC-LCSC-STM32 STM32 16 Steering Gear Control Board Serial Port TTL bluetooth Wireless Host Module Computer
SKU: EB0045273
Favorites
Key Features
Show More
Description
1. The main control chip of 32-bit STM32F103C8T6 ARM is adopted.
2. On-board 16M-byte large capacity flash memory chip can store up to 254 offline action groups.
3. Supporting online and offline operation modes. PC-side software and external software can be used.MCU, on-board keys, or bluetooth APP controls.
4. Number of control channels: 16 channels, steering control accuracy: 0.09 degrees (i.e. min. change value of PWM 1us).
5. Supporting steering gear with 20 ms control period and 0.5-2.5 ms pulse width (such as Huisheng.).
6. Provide supporting Windows PC software and test version of APP.
7. The steering gear and control chip can be selected by jumper cap and supplied independently or by a single power supply.In this way, the power supply is single power supply when plugged in and independent power supply when unplugged.
8. On-board special high-current power switch and 16-way 1.5A self-recovery fuse can effectively protect the control board and steering gear.
9. Power supply voltage: 5-9V
10. On-board STM32 UART (baud rate 9600. compatible with 3.3V and 5V level) communication control interface and SWD debugging interface.
1 x LC-LCSC-STM32 STM32 16 Steering Gear Control Board
