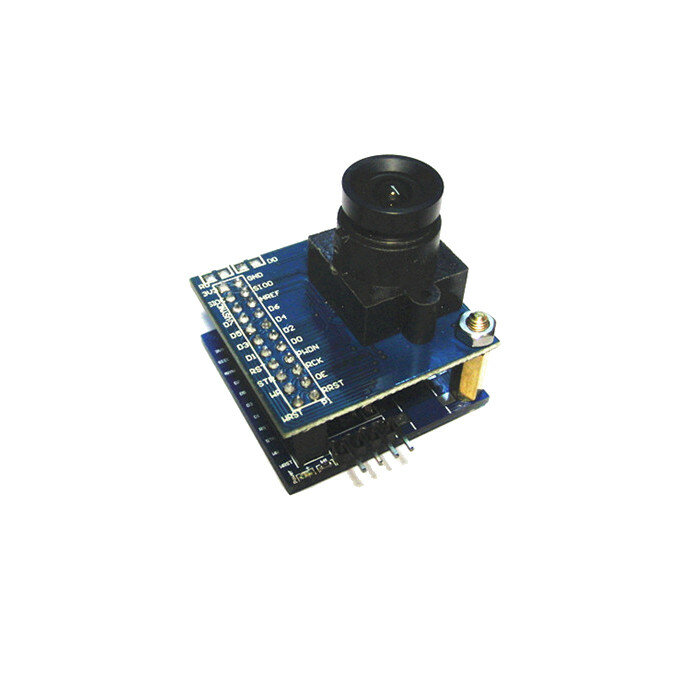

Elecbee Serial Port Camera Black and White Camera 320*240 Image Output OV7670 Camera Navigation 3.3V Power Supply Only
SKU: EB0042778
Favorites
Key Features
Product Features:
The OV7670 black and white serial camera can realize the collection of black and white image data, and can be transmitted through the serial port, which is very easy to control and operate. The serial port command can transmit black and white pixel data, which is suitable for image trolley, wireless image transmission, image recognition, embedded image acquisition and other fields. It can be used directly as a module alone. The whole is composed of a FIFO camera and an ultra-small driver board, with a volume of 35x45x50, which is very easy to install and use.
The camera CMOS parameters are as follows:
Photosensitive array: 320*240
Power consumption: 60mW/15fpsVGAYUV
Sleep: <20μA
Temperature operation: -30℃ to 70℃
Stable work: 0℃ to 50℃
Output format: (8 bits) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size: 1/6"
Field of view: 25°
Maximum frame rate: 30fps VGA
Sensitivity: 1.3V/(Lux-sec)
Signal to noise ratio: 46 dB
Dynamic range: 52 dB
Browse mode line by line
Pixel area: 3.6μm x 3.6μm
Dark current: 12 mV/s at60℃
Fifo cache: 3M bytes
Lens parameters:
Focal length: 3.6mm
Horizontal field of view: 102°
Minimum object distance: 20mm
Format: 1/3"
Mount: M12X0.5
Aperture: F2.0
Size: 14x15.7
Bottom plate structure:
The lead wires on the upper right side of the above figure are: VCC, TX, RX, GND. This set of lead wires are connected to external signals.
VCC is 3-3.3V
TX is TTL level serial port transmitter
RX is the TTL level serial port receiver
GND is ground
Show More
Description
Package includes:
1 x OV7670 Camera board
