Elecbee Handheld K210 AIOT Programmable Development AI+IOT K210 ESP32 Integration Device
SKU: EB0042531
Favorites
Key Features

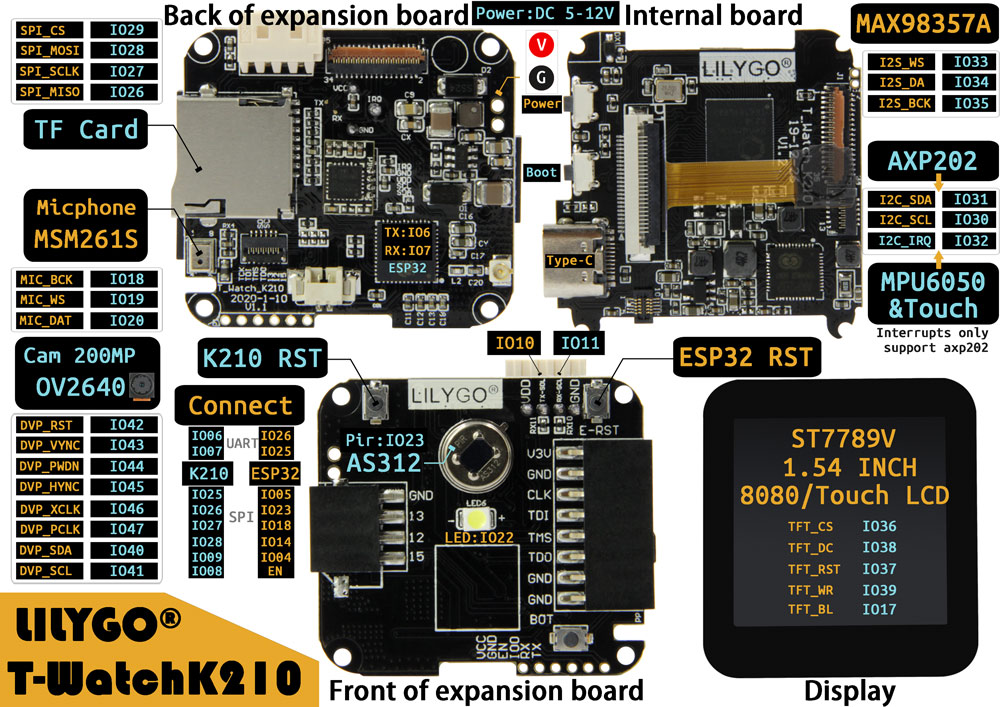

| Hardwarexa0Specifications | |
| Chipset | K210 (RSIC-V architecture, 64-bit dual-core) + ESP32 (SoC WIFI/Bluetooth) SPI/UART communication |
| FLASH | 16MB |
| PSRAM | 8MB |
| SRAMxa0 | 528KB |
| Button | Switch Button, custom Button |
| USB to TTL | CP2104 |
| On-board clock | RTC PCF8563 |
| Display | 1.54 IPS fully fitted capacitive touch screen with 8080 interface |
| Camera | Hinge design, OV2640 2MP 65 degree lens (optional 120 degree angle lens) |
| Human infrared sensor | AS312 |
| LED white light highlight | High brightness white LED |

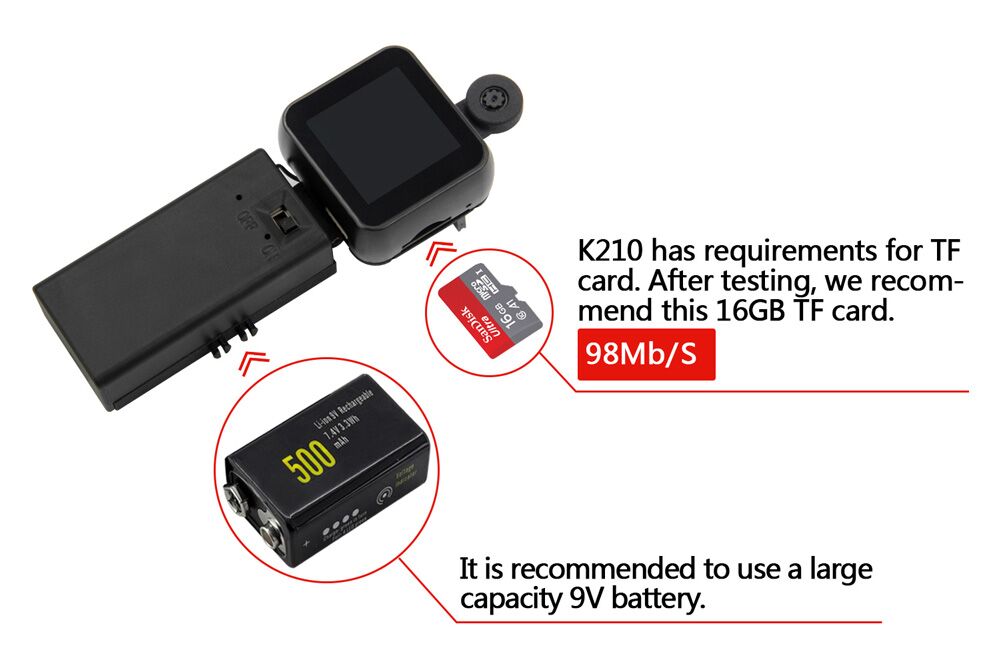

| TF card connector | Recommend to use 98M/Hz 16GTF card |
| Shell material | PC+ABS |
| Bottom design | Support LEG0 expansion port, M2 nut port (can be used for different fixing methods), 3 built-in button pin holes are reserved, (ESP32-boot, RST, K210-RST button) |
| Reserve IO port for expansion and development | The left and right sides have reserved 6pin and 8pin 2.54 expansion headers respectively, including the remaining GPIO of K210 and some GPIOs of ESP32 |
| I2C expansion interface | MOLEX 53015-0410 Use of extended I2C interface |
| DC-DC power input interface | 5-24V |

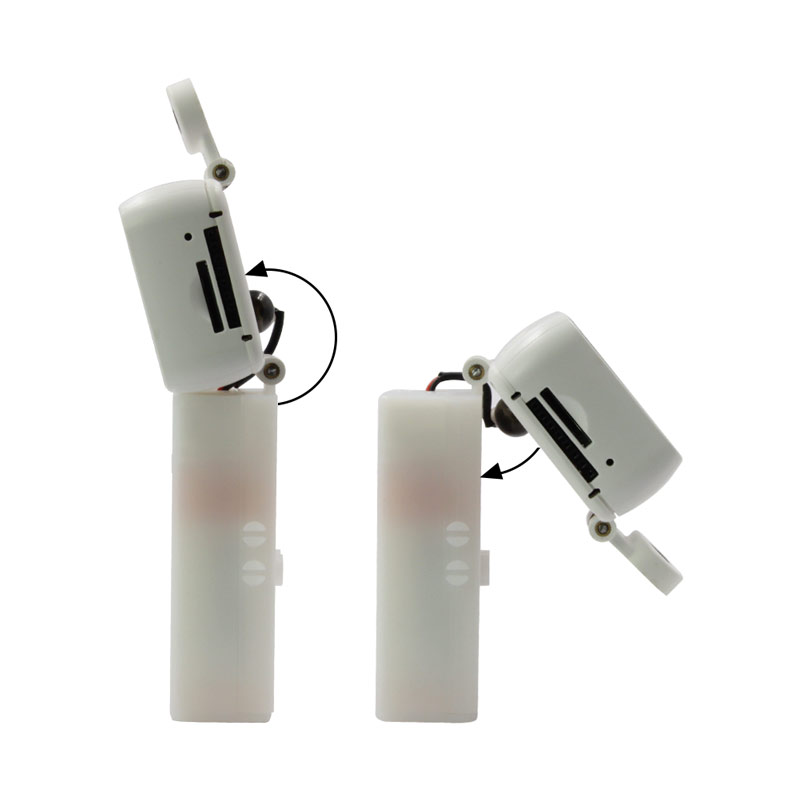

| Battery Holder | Rotating shaft design, support 9V battery with switch, adapt to LEG0xa0block interface |
| Power Supplyxa0 | |
| Power Supply Input | USB 5V/1A |
| Charge IC | PMU AXP202 |
| USB | TYPE-C |
| JST Connector | 2pin 1.25mm |
(9V battery is not includes)
Show More
Description
>>>GIthub Link: Click here to open<<<: https://github.com/Xinyuan-LilyGO/Maixduino

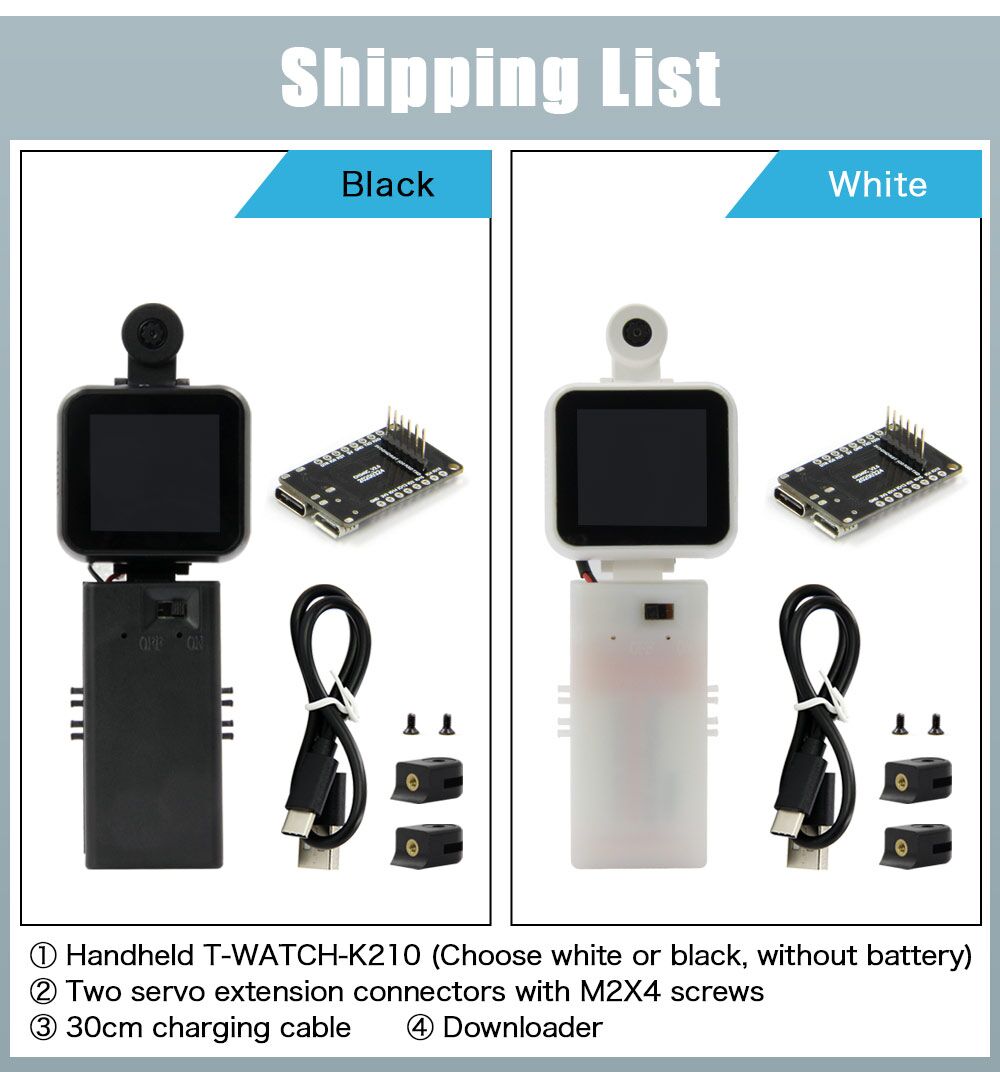

1 x T-WATCH-K210 AIOT
1 x Cable
