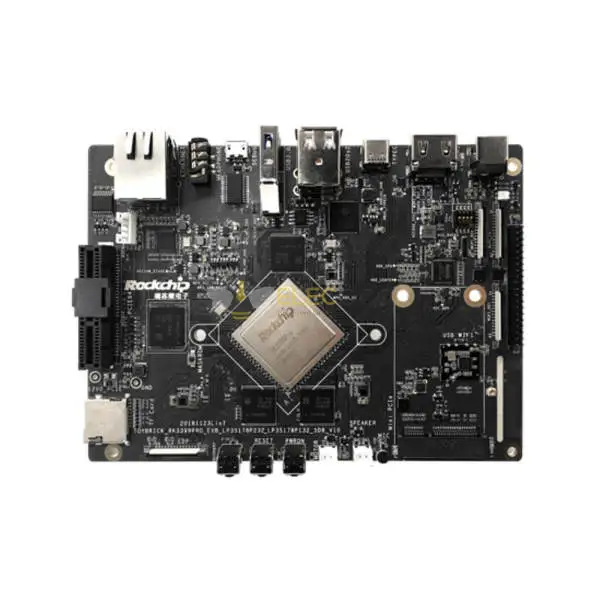

TB-RK3399Pro Development Board AI Artificial Intelligence Platform Deep Learning Firefly Android 8.1
Specification | |
SOC | RK3399 Pro |
CPU | Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU Frequency is up to 1.8GHz |
GPU | Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, Open CL, DX11 Supports AFBC (ARM Frame Buffer Compression) |
NPU | Support 8-bit/16-bit Inference Support TensorFlow/Caffe Model |
VPU | 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps |
1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |
1080P video encoders for H.264 and VP8 | |
Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |
RGA | Support real-time image scaling, cropping, format conversion, rotation and other functions |
Memory | 3GB/6GB LPDDR3 |
Storage | TF-card |
EMMC | 16GB/32GB eMMC |
Dispaly | HDMI2.0(Type-A) for 4K/60fps with HDCP1.4/2.2 |
DisplayPort 1.2(Type-A), up to 4K@60fps | |
MIPI interface, support 1920*1080@60fps | |
eDP1.3, support 2K@60fps | |
Audio | Support microphone, headphone, speaker |
8 channels I2S supports 8 channels array microphone | |
Wireless Network | Support 2.4G WiFi, support 802.11b/g/n potocol |
Support Bluetooth4.2 | |
Ethernet | 10/100/1000Mbps Ethernet ( Realtek RTL8211E ) |
Camera Interface | Support dual channel MIPI-CSI camera interface, (Maximum 13Mpixel or dual 8Mpixel) |
USB Interface | 2*USB2.0 Host(Type-A) |
1*USB3.0 Host(Type-A) | |
1*USB3.0 OTG(Type-C) | |
PCI-E Interface | 1*mini PCIe interface for LTE module |
1*PCIe x4 interface support the expansion of high-speed WIFI, storage and other devices based on PICe | |
SIM | 1*SIM connector for extending LTE module with mini PCIe interface |
Debug | 1*debug serial port (Micro USB interface) |
IO Interface | 40pin IO interface: |
8 channels I2S supports 8 channels array microphone | |
1*SPI interface | |
2*ADC interface | |
2*I2C interface | |
4*GPIO interface, support interrupt programming | |
DC Power (12V, 3.3V, 5V) | |
Power | DC 12V/2A |
System | Pre-installed Android and Linux system, support dual system boot and one-button OS switching |
PCB Size | 145mm×106mm |
>>>Wiki: Click here to open<<<
