Elecbee 3G 4G 5G (617-2700 MHz) Indoor Ceiling-Mount Thin Dome Antenna (50 Ohm)

SKU: E-201-2491

Favorites

Key Features

Datasheet

E-201-2491

Description

Product Description

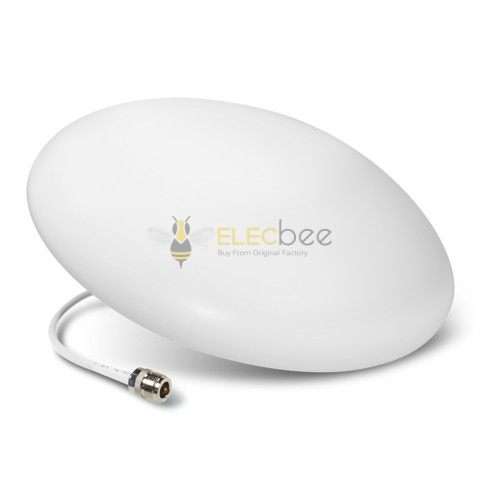

Ultra-Wideband Indoor Multi-Directional Ultra-Thin Dome Antenna.

5G antenna designed to blend seamlessly into any environment. Consider 4G ultra thin dome antenna version for almost half the price. This 5G SureCall Ultra-Thin Antenna is a low-profile ceiling-mount dome antenna for in-building cell phone signal boosters. Ultra-Wideband indoor antenna transmits and receives signal in a 360-degree pattern and is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. 2 / 4 / 6 dBi Max Gain. N-Female connector. 50 Ohm. Ultra-Wideband: 617 - 2700 MHz. 5G Band 71 compatible that includes T-Mobile 5G Sub-6 Frequency. Includes mounting hardware. SKU / Part Number: SC528W. UPC: 854328008459.

Ultra-wideband : 2G, 3G, 4G, 5G, (617 - 2700 MHz) indoor ceiling-mount dome antenna.
2 / 4 / 6 dBi Max Gain.
N-Female connector (50 ohm).
Includes mounting hardware.
Connects with SC-400 cable (sold separately).

Install Guidelines.

In addition to the antenna, mounting options are included for installations with or without a crawl space. Be sure to deploy the antenna in an area central to your desired indoor signal coverage where there are minimal obstacles. Ultimately, the in-building range of this antenna depends on three factors:

Physical obstructions.
Power generated by booster.
Signal level received by the outdoor antenna.

Installation.

If accessible by crawl space:

Drill a 20 mm diameter hole in the ceiling. The size should be large enough to allow the antenna's plastic cable base to pass through.
Place antenna cable through hole.
From crawl space, screw the fixing nut onto antenna and fasten around the threaded plastic cable base.
Connect female antenna connector with SC-400 cable that leads to your booster port marked INSIDE.

If not accessible by crawl space:

Drill a 20 mm diameter hole in the ceiling. The size should be large enough to allow the antenna's plastic cable base to pass through.
Use metal mounting plate to align, mark and drill 3 holes into ceiling surface and insert provided anchors.
Secure metal mountings plate to ceiling by inserting provided screws through mounting plate (with interlocking pegs facing down) and into ceiling anchors.
Push antenna to bracket surface allowing cable to pass through ceiling. Align keyhole mounts on the antenna with down-facing pegs and twist into place.
Connect female antenna connector with SC-400 cable that leads to your booster port marked INSIDE.

Note: Wherever possible, it is recommended to provide maximum separation between exterior and interior antennas.

Compatibility.

Signal Amplifier Compatibility: All brands 2G-5G cell phone boosters including SureCall 2G-5G home and industrial in-building signal boosters. Cable Compatibility: Low loss coax cables with N Male on either end (SC-400, SC-240, etc). Accessory Compatibility: All brands of 50 Ohm Couplers and Splitters.

5G Ultrathin Dome Antenna Specifications:

Frequency:	617-697 / 698-960 / 1710-2700 MHz.
Beamwidth:	H:360° E:80°/ H:360° E:80°/H:360° E:45°.
Max. Gain:	2 / 4 / 6 dBi.
VSWR:	< 2.
Input Impedance:	50 Ohm.
Polarization Type:	Vertical.
Max Power:	50W.
Beamwidth:	360 degrees.
Radiation Pattern:	Omni-Directional.
Connector Type:	N-Female.
Mount Type:	Ceiling-mount.
Height:	2.11 inches.
Diameter:	12.2 inches.
Weight:	1.21 Ibs.
Cover Material:	PC+ABS.
Operating Temp. (degrees fahrenheit):	-45 ~ +108.

For more details about Ultra Wide Band Omni-directional Ceiling-Mount Inside Antenna, please check 5G indoor ultra thin dome antenna data sheet.
